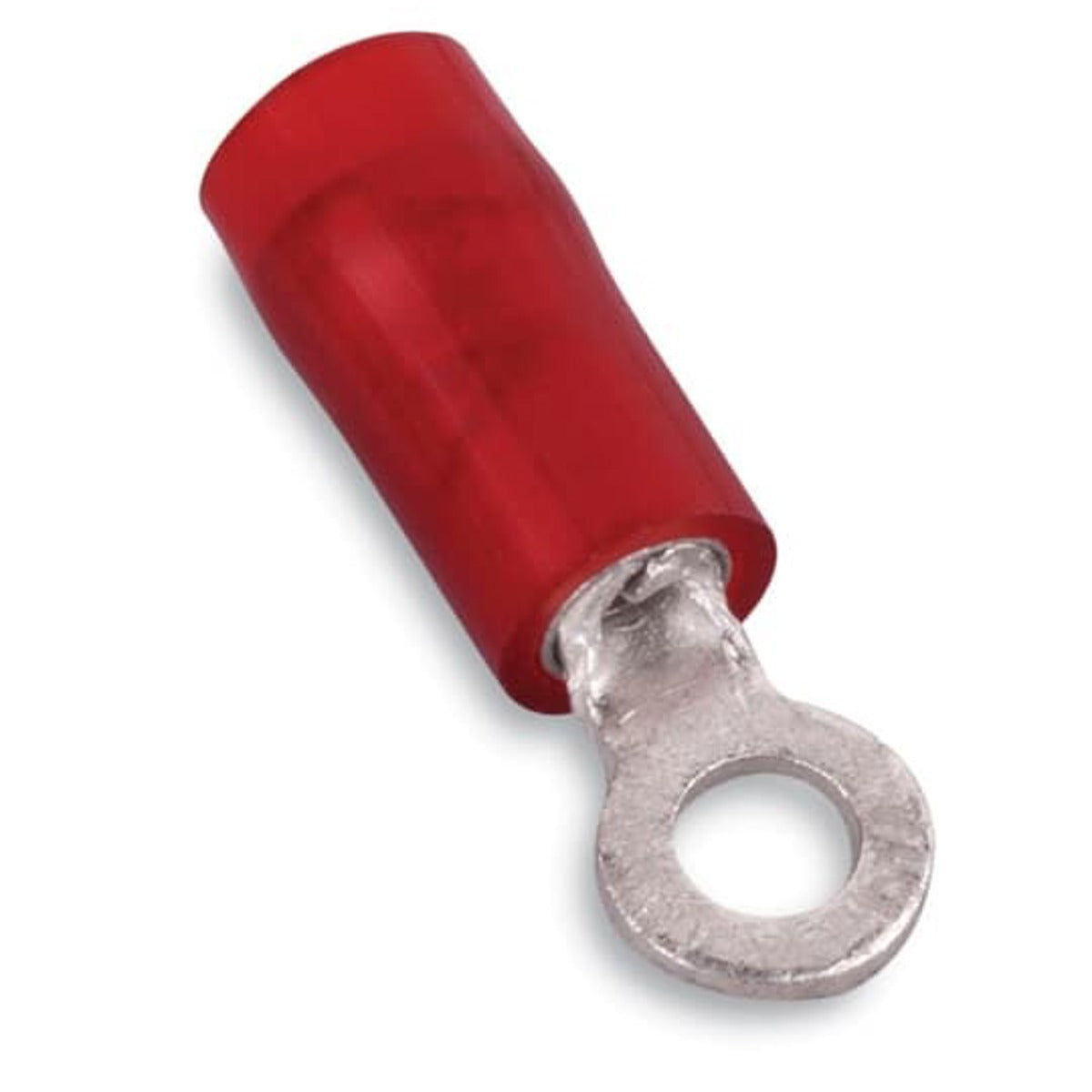

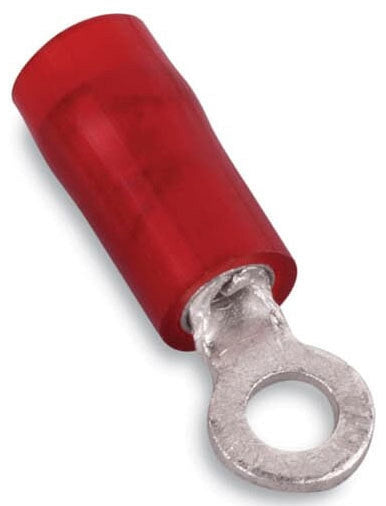

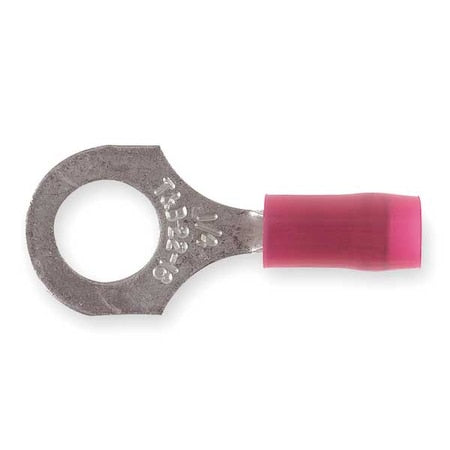

Sta-Kon RA18-14 nylon insulated ring terminal 600 V 1/4 inch

Product Description

The STA-KON RA18-14 is a nylon insulated ring terminal designed for 22-16 AWG wire. Constructed from copper with tin plating, it ensures high conductivity and corrosion resistance. The terminal features a 1/4 inch stud size and is suitable for applications up to 600V. It features self-insulation with high dielectric-strength nylon sleeves.

• Self-insulated with high dieletric-strength nylon sleeves
• Inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep
• Constructed of electrolytic copper for high conductivity

Product Highlights

Nylon insulated ring terminal for secure electrical connections. Ideal for various applications requiring reliable wire termination.

Product Information

Standard Information

• Brand: STA-KON
• Manufacturer Part Number: RA18-14
• Country of Origin: United States

Technical Specifications

• Catalog Number: RA18-14
• Manufacturer: ABB - Installation Products
• Brand: Sta-Kon
• Country of Origin: United States
• Made in USA: Yes
• Color: Red
• Material: Copper
• Special Features: Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep
• Standard: UL E9809
• UPC: 786210803944
• GTIN: 00786210803944
• Item Type: Nylon Insulated Ring Terminal
• Voltage Rating: 600 V
• Wire Size: 22-16 AWG
• Approval: UL 486-A, CSA 22.2
• Insulation Type: Nylon Insulated
• Maximum Conductor Size: 16 AWG
• Minimum Conductor Size: 22 AWG
• Stud Size: 1/4 Inch
• Temperature Rating: 105 Deg C
• Type: Standard
• Finish: Electro Tin Plated
• Max. Temp.: 221 Degrees F
• Termination: Crimp Termination Only
• Barrel Style: Serrated Barrel
• Hole Spacing: 0.31 in
• Maximum Voltage: 600 V
• Tongue Width: 0.46 in
• Barrel Length: 0.53 in
• Terminal Type: Standard
• Tongue Length: 0.57 in
• Contact Finish: Tin
• Insulation Dia: 0.136 in
• Overall Length: 1.1 in
• Terminal Shape: Ring Terminal
• Connection Type: Crimp
• Insulation Material: Nylon
• Tongue Thickness: 0.03 in
• Ring Width Ranges: 0.26 - 0.50 inches
• Termination Style: Crimp
• Connection Material: Copper
• Insulation Coverage: Partial Coverage
• Terminal Connection: Crimp
• Combo for Heat Shrink: Nylon
• Compatible with Product Type: Copper Conductors
• Maximum Operating Temperature: 221 Degrees F
• Minimum Operating Temperature: 221 Degrees F
• Tongue Width - Wire Connector: 0.46 in
• RoHS: RoHS3 Compliant
• REACH: REACH 240 Compliant
• TSCA: TSCA Section 6(h) Compliant
• Flange shape: Ring shape
• Insulation: PA
• Colour insulation: Red
• AWG-range: 22-16
• Surface protection: Tinned
• Stud size (imperial): 1/4 inch
• Barrel Type: Insulation Grip Sleeve
• Conductor Size: 22 to 16
• Series: RA Series
• Specifications: 0.136 in Dia Maximum Insulation, 0.31 in Clearance, Nylon Insulation
• Tongue Size: 0.46 in W x 0.03 in THK
• Length: 1.1 in
• UNSPSC: 39121432
• Application: For WT2000, WT112M, WT145C, ERG4001, ERG4003 and WT145A tools
• ECCN: EAR99
• Packaging: 100 Per Package
• Rated Voltage: 600V
• Color Family: Red
