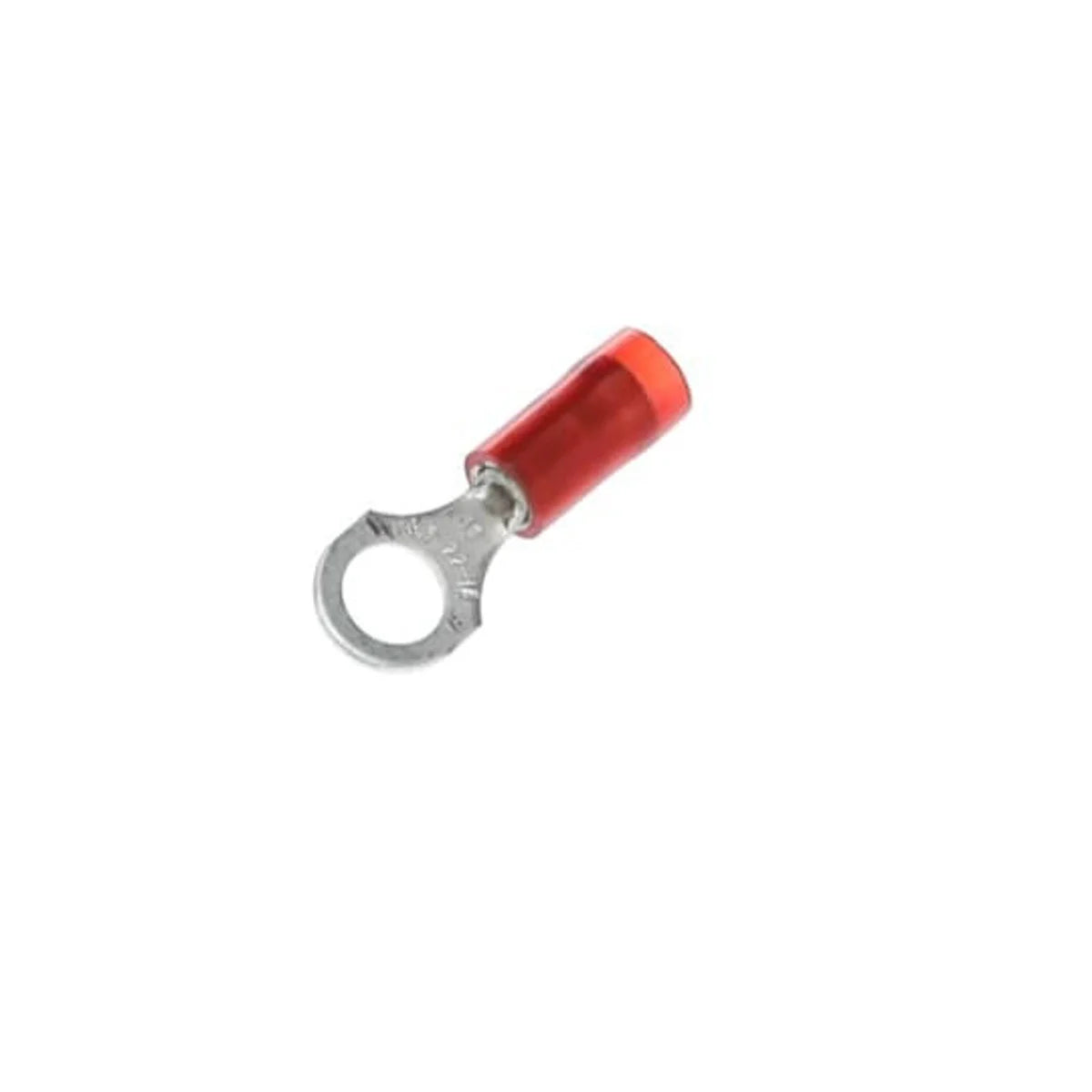

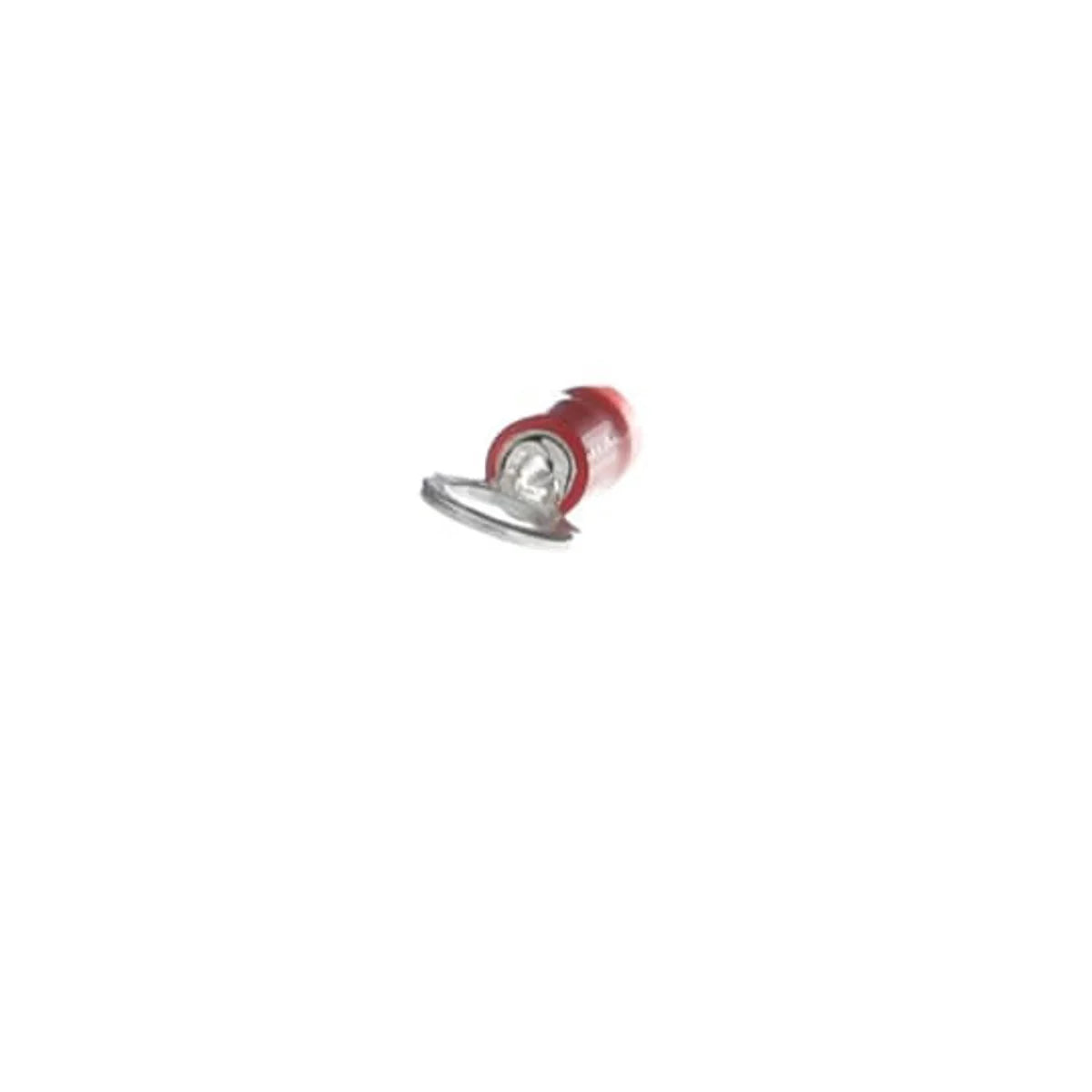

Sta-Kon RA18-10 Terminal Ring 22 to 16 AWG 0.89 in Copper

Product Description

Sta-Kon RA18-10 is a nylon insulated ring terminal suitable for wiring applications with a conductor range of 22 to 16 AWG. This product offers a reliable and secure connection for electrical circuits. The terminal is designed for use in various electrical setups, ensuring durability and performance.

• Self-insulated with high dielectric strength nylon sleeves
• Bronze insulation grip sleeve enhances conductor flexibility
• Constructed from copper with electro-tin plating for conductivity

Product Highlights

Sta-Kon terminals are known for their premium connection quality. Ideal for electrical professionals, these terminals come in a pack of 100 and are designed to withstand significant operational demands.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• Brand: Sta-Kon

Technical Specifications

• Type: Insulated
• Finish: Tin Coated
• Length: 0.89 in
• Series: RA Series
• Stud Size: #10
• Temperature Rating: 105 deg C
• Voltage Rating: 600 VAC
• Wire Size: 22 to 16 AWG
• Maximum Insulation Diameter: 0.136 in
• Clearance: 1/4 in
