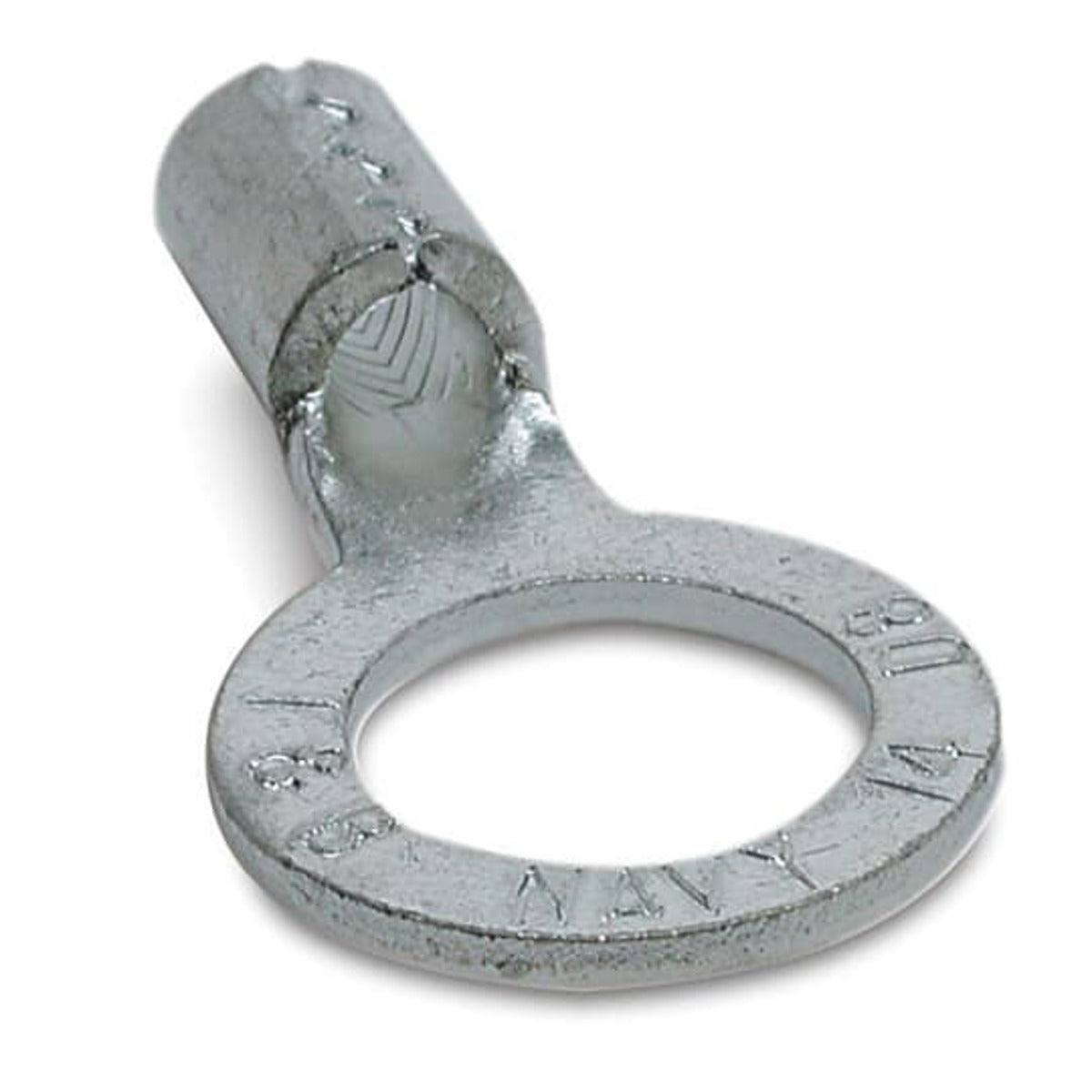

Sta-Kon F73 Non-Insulated Large Brazed Seam Ring Terminal 4 AWG 3/8 Inch 200 Pack

Product Description

The STA-KON F73 is a non-insulated large brazed seam ring terminal made of electrolytic copper for high conductivity. It accommodates a wire range of #4 AWG and has a 3/8 inch bolt hole. The terminal can be installed with crimping tools having a single indentor or double indentor, with a serrated barrel that increases grip on wire.

• Made of electrolytic copper for high conductivity
• Can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire)
• Serrated barrel increases grip on wire

Product Highlights

Non-insulated ring terminals for high conductivity and secure wire grip. Ideal for electrical connections requiring a reliable termination.

Product Information

Standard Information

• Brand: STA-KON
• Manufacturer Part Number: F73
• Country of Origin: United States

Technical Specifications

• Catalog Number: F73
• Manufacturer: ABB - Installation Products
• Brand: Sta-Kon
• Country of Origin: United States
• Made in USA: Yes
• Material: Copper
• Special Features: These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire
• Standard: UL E9809
• UPC: 786210812229
• GTIN: 00786210812229
• Item Type: Non-Insulated Ring Terminal
• Voltage Rating: 600 V
• Wire Size: 4 AWG
• Type: Standard
• Minimum Conductor Size: 4 AWG
• Maximum Conductor Size: 3 AWG
• Insulation Type: Non-Insulated
• Stud Size: 3/8 Inch
• Temperature Rating: 150 Deg C
• Standard Package: 200
• Approval: UL 486-A, CSA 22.2
• Finish: Electro Tin Plated
• RoHS: RoHS3 Compliant
• REACH: REACH 247 Compliant
• TSCA: TSCA Section 6(h) Compliant
• ETIM: EC001052 Solderless copper terminals for copper conductors
• Flange shape: Ring shape
• Insulation: None
• Reel packaging: N
• Surface protection: Tinned
