Sta-Kon F2045 Polypropylene-Insulated Ferrule 6 AWG

Brand: STA-KON
SKU: F2045
Availability: Out Of Stock
$191.78
$191.78
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

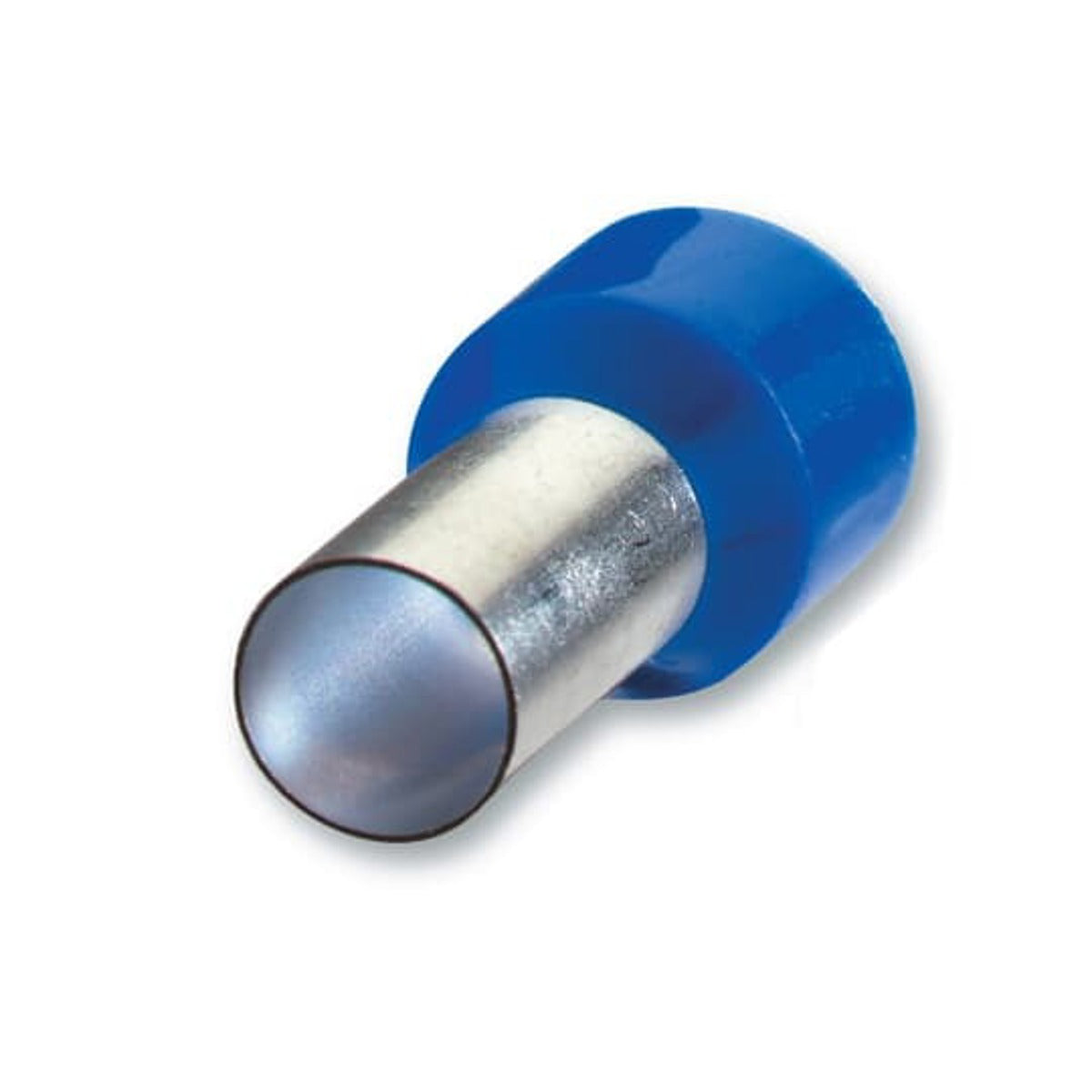

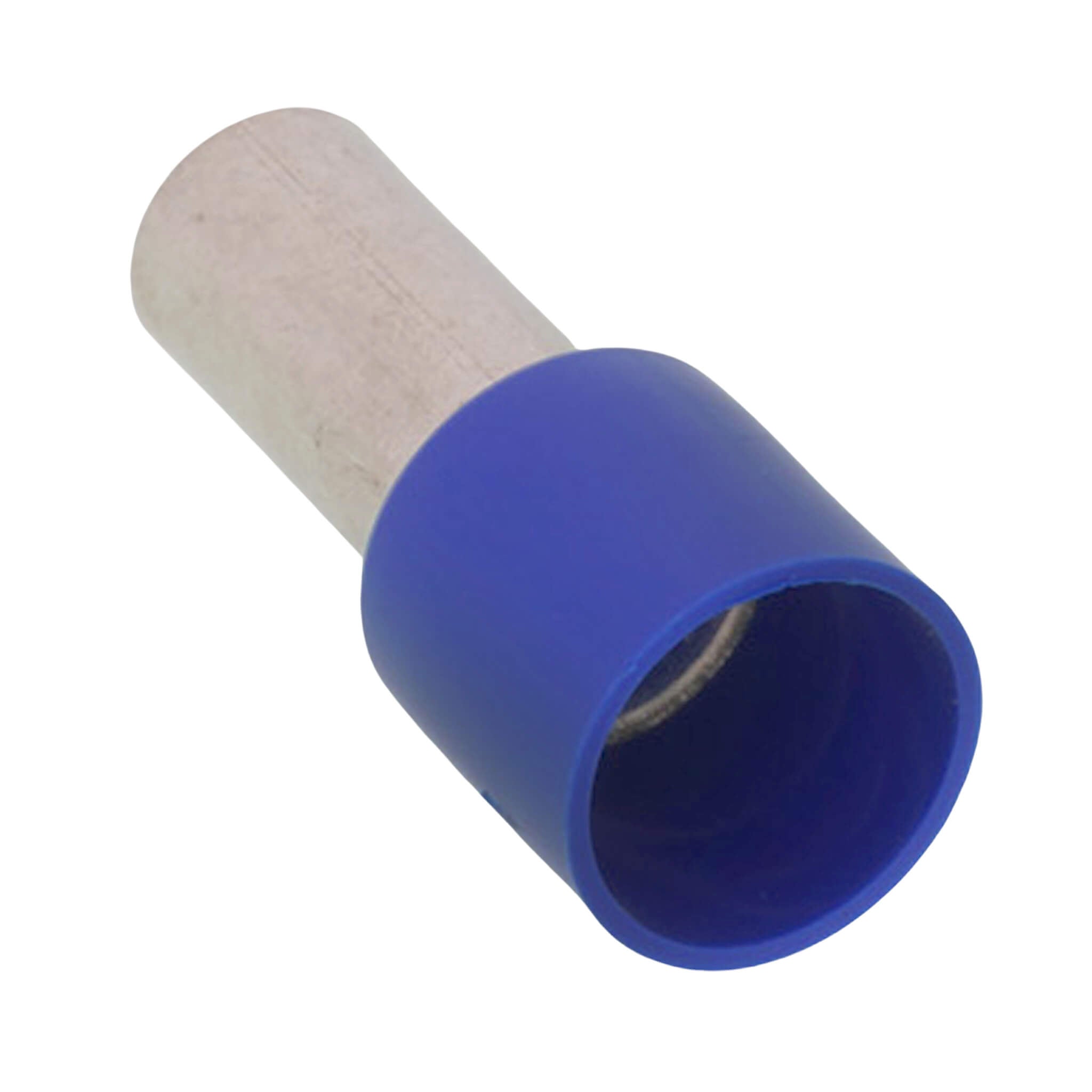

The STA-KON F2045 is a polypropylene-insulated ferrule with a total length of .906 inches/23mm and a wire range of 6 AWG/16.00mm2. Constructed from copper with tin plating, these ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks. The pin length is .472 inches/12mm, pin diameter is .236 inches/6mm, and base diameter is .346 inches/8.8mm.

  • Polypropylene insulated
  • Wire range 6 AWG/16.00mm2
  • Made of copper and tin plated

Product Highlights

This ferrule ensures reliable electrical connections when terminating conductors in screw clamp terminal blocks.

Product Information

Standard Information

  • Brand: STA-KON
  • Manufacturer Part Number: F2045
  • Country of Origin: Germany
Technical Specifications
Catalog Number
F2045
Manufacturer
ABB - Installation Products
Brand
Sta-Kon
Country of Origin
Germany
Made in USA
No
Material
Copper
Special Features
Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks
Standard
UL E489056
UPC
786210335490
GTIN
00786210335490
Item Type
Polypropylene Insulated Ferrule
Wire Size
6 AWG
Type
Insulated Ferrule
Length
0.906 in
Finish
Tin Coated
AWG
6
RoHS
RoHS3 Compliant
REACH
REACH 247 Compliant
TSCA
TSCA Section 6(h) Compliant
ETIM
EC000005 Cable end sleeve
Construction type
Standard
Nominal cross section
6 mm²
Insulated
Y
Material insulation
Polypropylene
Surface protection
Tinned
With identification flag
N
Reel packaging
N
Series
F Series
Temperature Rating
105 deg C
Voltage Rating
300 VAC
Barrel Type
Short
Barrel Size
0.346 in Dia
Conductor Type
Stranded Copper
Specifications
0.236 in ID x 0.472 in L x 0.008 in THK Pin, 0.346 in Dia Base
