Sta-Kon F2043 Polypropylene-Insulated Ferrule 8 AWG

Product Description

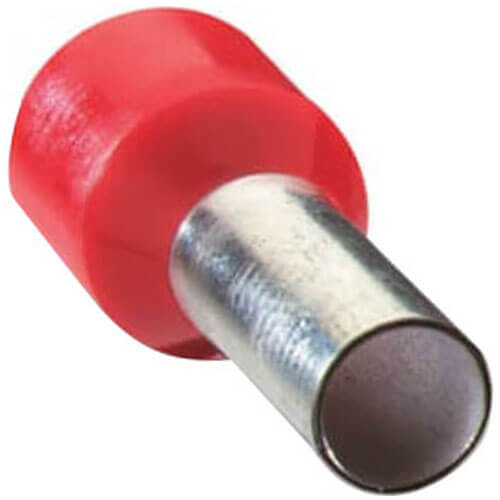

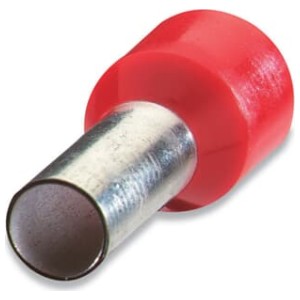

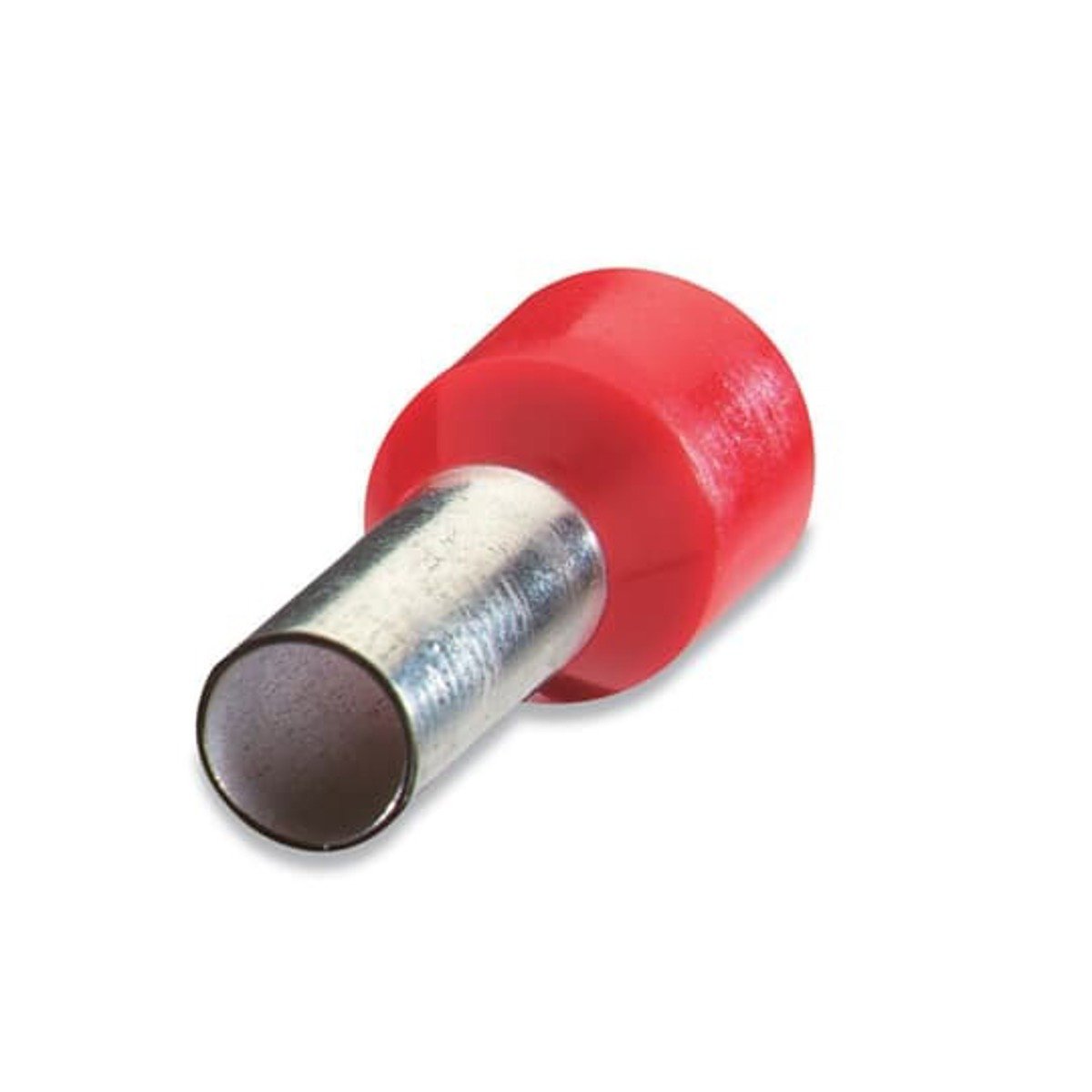

The STA-KON F2043 is a polypropylene-insulated ferrule with a total length of 0.827 inches/21mm, a pin length of 0.472 inches/12mm, a pin diameter of 0.181 inches/4.6mm, and a base diameter of 0.295 inches/7.5mm. It supports a wire range of 8 AWG/10.00mm2 and ensures reliable electrical connections when terminating conductors in screw clamp terminal blocks.

• Ensures reliable electrical connections in screw clamp terminal blocks.
• Made of copper with tin plating.
• Insulated with polypropylene.

Product Highlights

This insulated ferrule is designed for 8 AWG wires, providing a secure and reliable termination in electrical applications.

Product Information

Standard Information

• Brand: STA-KON
• Manufacturer Part Number: F2043
• Country of Origin: Germany

Technical Specifications

• Catalog Number: F2043
• Manufacturer: ABB - Installation Products
• Brand: Sta-Kon
• Country of Origin: Germany
• Made in USA: No
• Color: Red
• Material: Copper
• Special Features: Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks
• Standard: UL E489056
• UPC: 786210335476
• GTIN: 00786210335476
• Item Type: Polypropylene Insulated Ferrule
• Wire Size: 8 AWG
• Insulation Material: Polypropylene
• Type: Insulated Ferrule
• Sleeve Length: 0.472 Inch
• Sleeve Diameter: 0.181 Inch
• Size: 0.295 Inch Diameter x 0.827 Inch Length
• Finish: Tin
• Length: 0.827
• Conductor Size: 8
• Conductor Type: Stranded Copper
• Voltage Rating: 300
• Temperature Rating: 105
• Series: F Series
• Specifications: 0.181 in ID x 0.472 in L x 0.008 in THK Pin, 0.295 in Dia Base
• Nominal cross section: 10 mm²
• Insulated: Y
• Material insulation: Polypropylene
• Surface protection: Tinned
• With identification flag: N
• Reel packaging: N
• AWG size: 8
