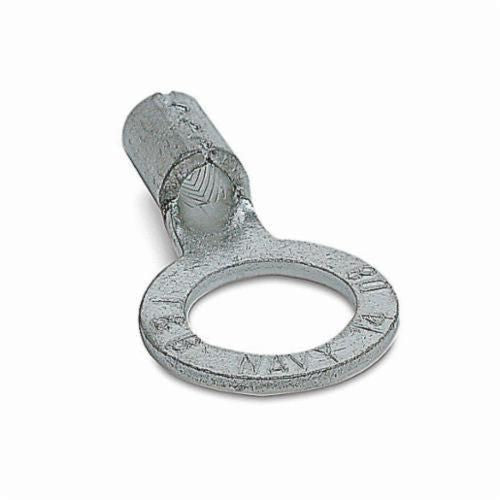

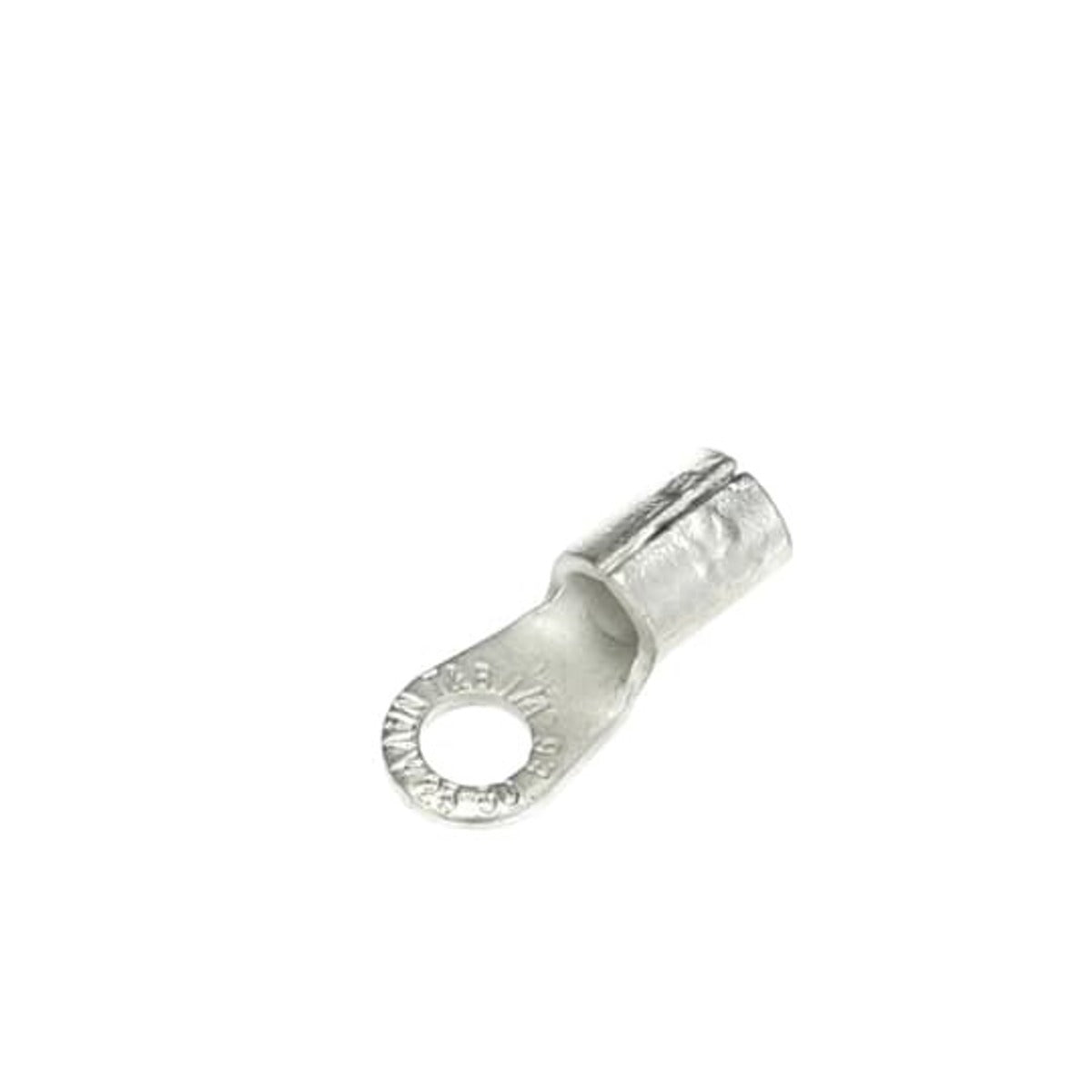

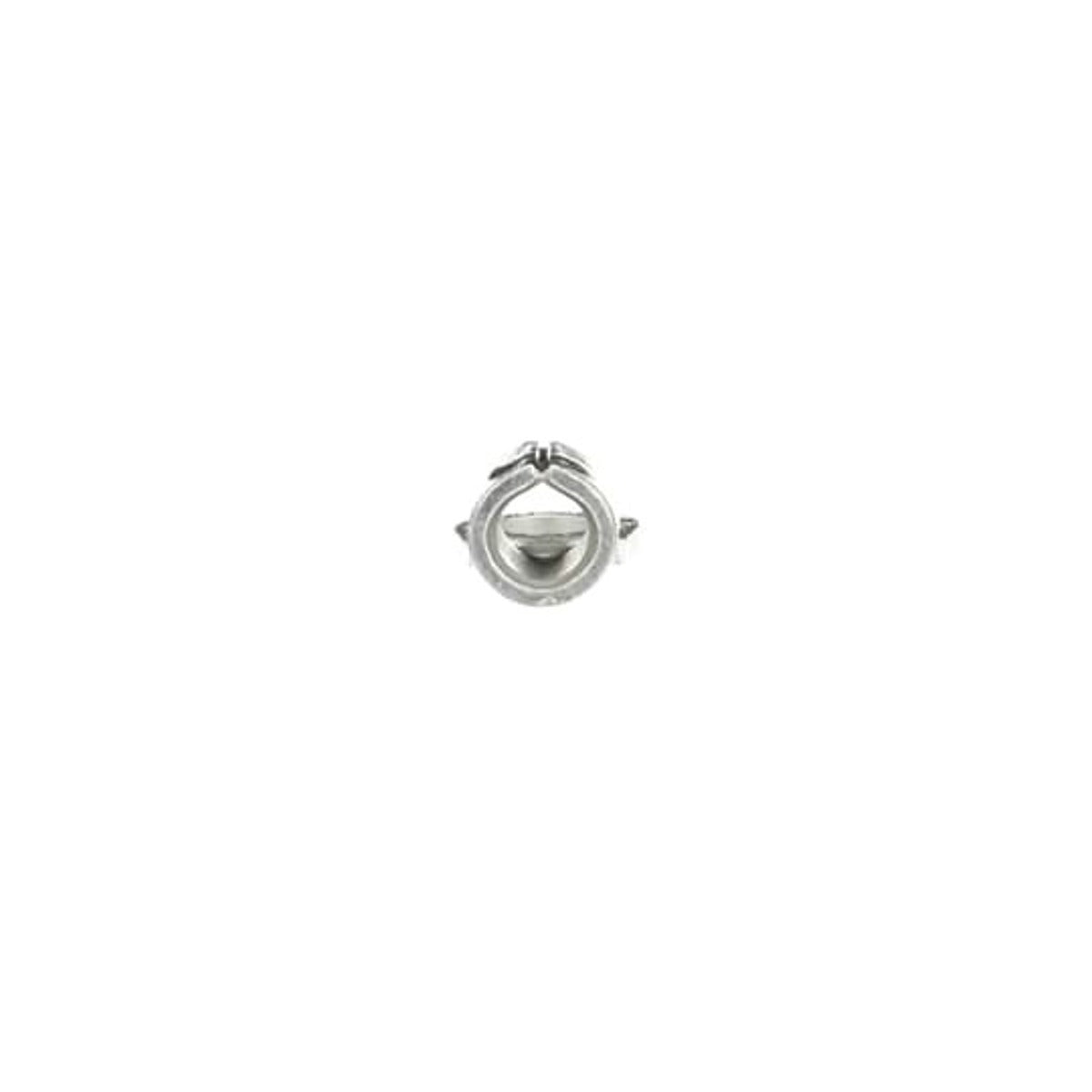

Sta-Kon E71 Non-Insulated Large Brazed Seam Ring Terminal 6 AWG (200 Pack)

Product Description

The STA-KON E71 non-insulated ring terminals are made of electrolytic copper for high conductivity. These terminals can be installed with crimping tools having a single indentor or double indentor, recommended for solid wire. The serrated barrel increases grip on wire. Suitable for use in applications up to 600V.

• Made of electrolytic copper for high conductivity
• Can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire)
• Serrated barrel increases grip on wire

Product Highlights

Non-insulated ring terminals with serrated barrel for increased grip. Constructed from electrolytic copper with a brazed seam.

Product Information

Standard Information

• Brand: STA-KON
• Manufacturer Part Number: E71
• Country of Origin: United States

Technical Specifications

• Catalog Number: E71
• Manufacturer: ABB - Installation Products
• Brand: Sta-Kon
• Country of Origin: United States
• Made in USA: Yes
• Material: Copper
• Standard: UL E9809
• UPC: 786210811895
• GTIN: 00786210811895
• Item Type: Non-Insulated Ring Terminal
• Voltage Rating: 600 V
• Wire Size: 6 AWG
• Type: Standard
• Minimum Conductor Size: 6 AWG
• Maximum Conductor Size: 5 AWG
• Insulation Type: Non-Insulated
• Stud Size: 1/4 Inch
• Temperature Rating: 150 Deg C
• Standard Package: 200
• Approval: UL 486-A, CSA 22.2
• Finish: Electro Tin Plated
• RoHS: RoHS3 Compliant
• REACH: REACH 247 Compliant
• TSCA: TSCA Section 6(h) Compliant
• ETIM: EC001052 Solderless copper terminals for copper conductors
• Flange shape: Ring shape
• Insulation: None
• Reel packaging: N
• Surface protection: Tinned
• Stud size (imperial): 1/4 inch
• Length: 1.13 in
• Series: E
• Clearance: 0.36 in
• Tongue Size: 0.48 in W x 0.06 in T
• Tongue Type: Ring
• Barrel Type: Brazed Seam
