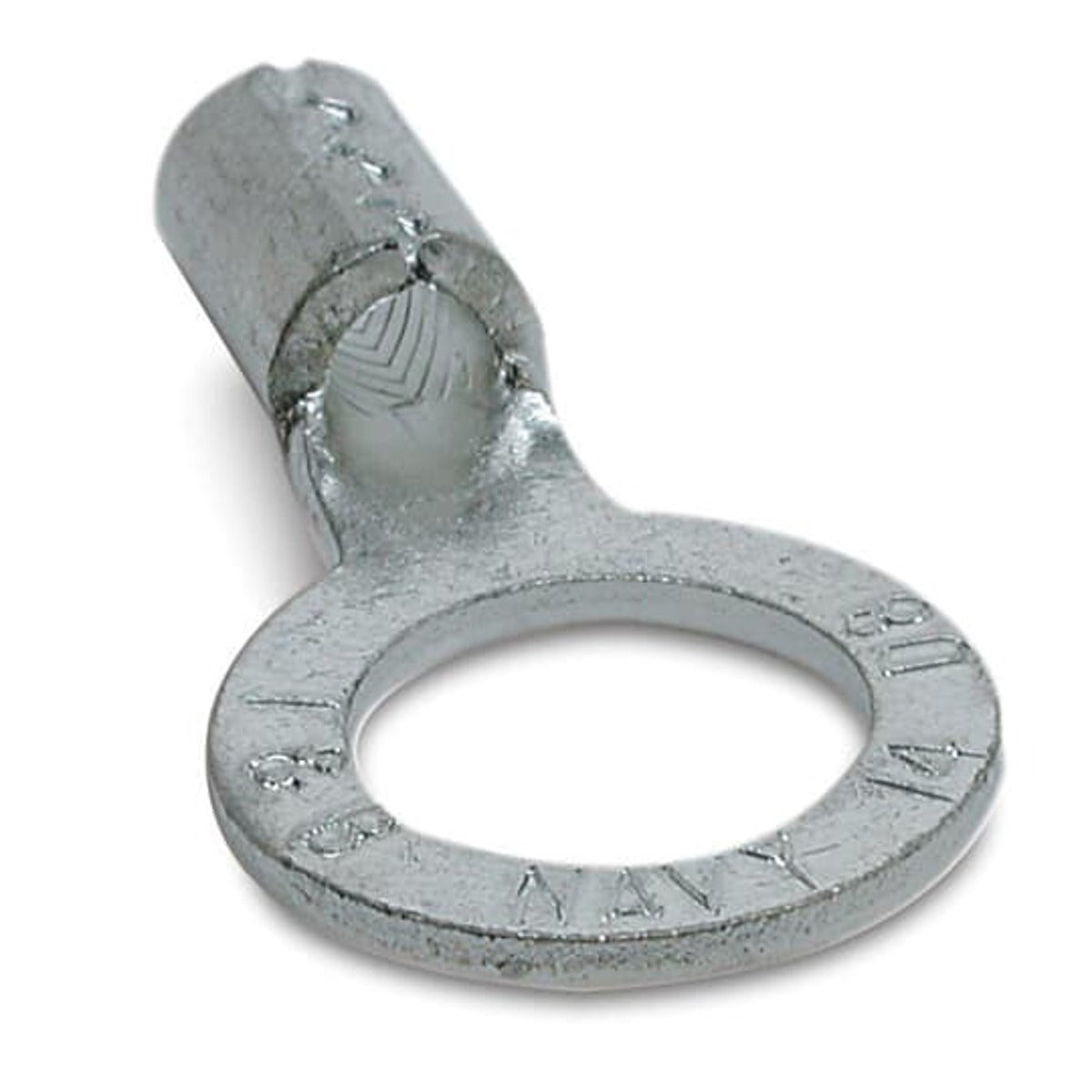

STA-KON Sta-Kon D73 Non-Insulated Large Brazed Seam Ring Terminal 8 AWG (200 Pack)
STA-KON Sta-Kon D73 Non-Insulated Large Brazed Seam Ring Terminal 8 AWG (200 Pack)

Sta-Kon D73 Non-Insulated Large Brazed Seam Ring Terminal 8 AWG (200 Pack)

Brand: STA-KON
SKU: D73
Availability: Out Of Stock
$196.70
$196.70
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The STA-KON D73 non-insulated ring terminal is made of electrolytic copper for high conductivity. It can be installed with crimping tools having a single indentor or double indentor, recommended for solid wire. The serrated barrel increases grip on wire. This ring terminal is suitable for use with WT115A, TBM6, TBM6S, WT3185 tools.

  • Made of electrolytic copper for high conductivity
  • Can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire)
  • Serrated barrel increases grip on wire

Product Highlights

The STA-KON D73 ring terminal features a brazed seam, serrated barrel, and is tin plated. It is UL and CSA approved.

Product Information

Standard Information

  • Brand: STA-KON
  • Manufacturer Part Number: D73
  • Country of Origin: United States
Technical Specifications
Catalog Number
D73
Manufacturer
ABB - Installation Products
Brand
Sta-Kon
Country of Origin
United States
Made in USA
Yes
Material
Copper
Special Features
These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire
Standard
UL E9809
UPC
786210811581
GTIN
00786210811581
Item Type
Non-Insulated Ring Terminal
Voltage Rating
600 V
Wire Size
8 AWG
Type
Standard
Minimum Conductor Size
9 AWG
Maximum Conductor Size
7 AWG
Insulation Type
Non-Insulated
Stud Size
3/8 Inch
Temperature Rating
150 Deg C
Standard Package
200
Approval
UL 486-A, CSA 22.2
Finish
Electro Tin Plated
RoHS
RoHS3 Compliant
REACH
REACH 247 Compliant
TSCA
TSCA Section 6(h) Compliant
ETIM
EC001052 Solderless copper terminals for copper conductors
Flange shape
Ring shape
Insulation
None
Reel packaging
N
Surface protection
Tinned
Stud size (imperial)
3/8 inch
Series
D Series
Conductor Size
8 AWG
Length
1.32 in
Barrel Type
Brazed Seam/Serrated Barrel
Tongue Type
Large Ring Tongue
Tongue Width
0.59 in W
Tongue Thickness
0.06 in THK
Voltage
600 V AC
Clearance
0.59 in
Plating
Tin Plated
Tongue Size
0.59 in W x 0.06 in THK
Color
Metallic
