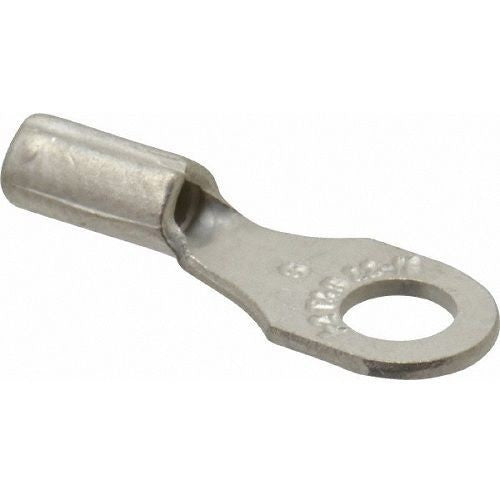

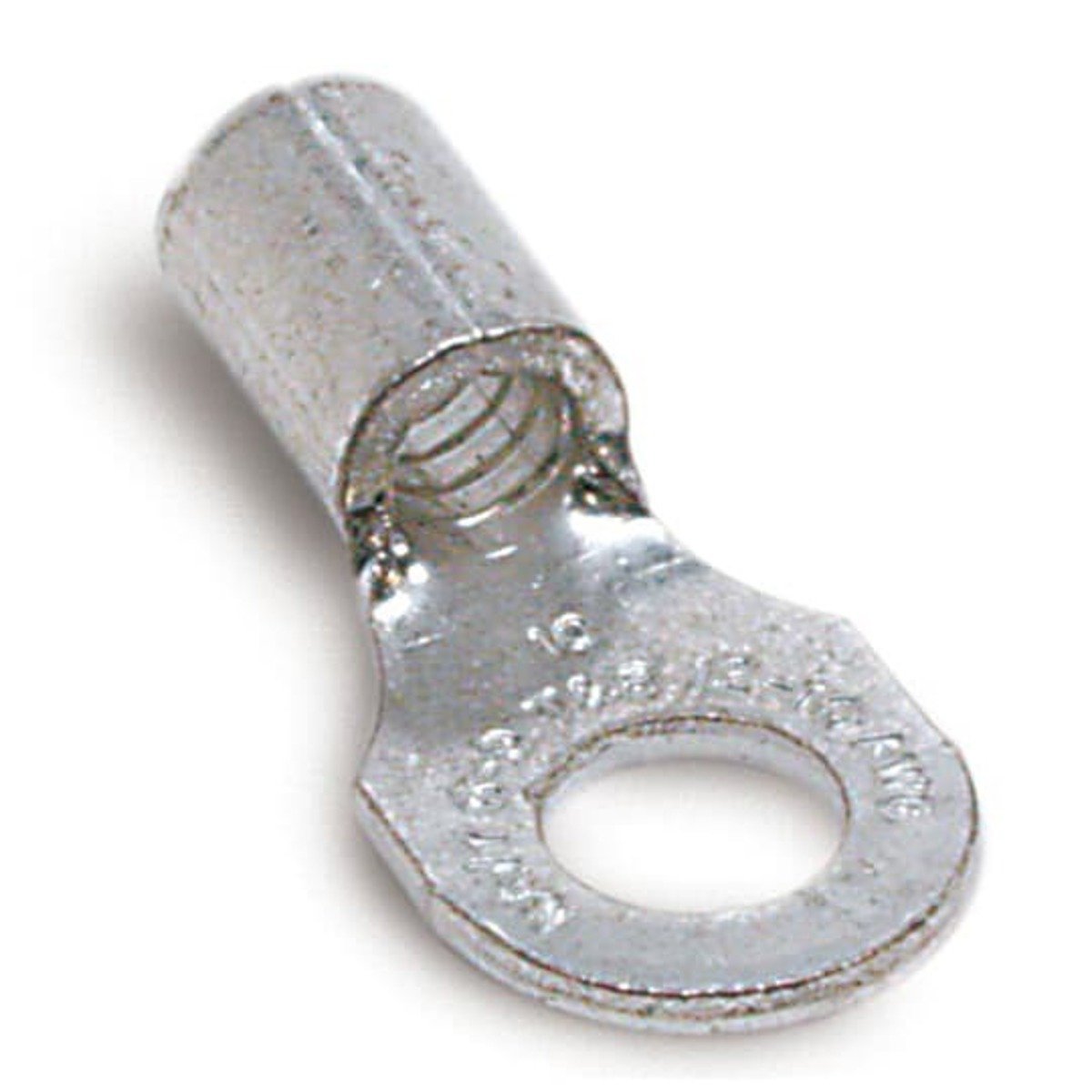

Sta-Kon C73 Non-Insulated Ring Terminal 12-10 AWG 3/8 Inch

Product Description

The STA-KON C73 non-insulated ring terminal is made of electrolytic copper for high conductivity. It can be installed with crimping tools having a single indentor or double indentor. The serrated barrel increases grip on wire. This ring terminal is suitable for 12-10 AWG wire and has a 3/8 inch stud size.

• Made of electrolytic copper for high conductivity
• Can be installed with crimping tools having a single indentor or double indentor
• Serrated barrel increases grip on wire

Product Highlights

Non-insulated ring terminals ensure premium connection for 12-10 AWG wires with a 3/8 inch stud size.

Product Information

Standard Information

• Brand: STA-KON
• Manufacturer Part Number: C73
• Country of Origin: United States

Technical Specifications

• Catalog Number: C73
• Manufacturer: ABB - Installation Products
• Brand: Sta-Kon
• Country of Origin: United States
• Made in USA: Yes
• Material: Copper
• Standard: UL E9809
• UPC: 786210810843
• GTIN: 00786210810843
• Item Type: Non-Insulated Ring Terminal
• Voltage Rating: 600 V
• Wire Size: 12-10 AWG
• Type: Standard
• Minimum Conductor Size: 12 AWG
• Maximum Conductor Size: 10 AWG
• Insulation Type: Non-Insulated
• Stud Size: 3/8 Inch
• Temperature Rating: 150 Deg C
• Approval: UL 486-A, CSA 22.2
• Finish: Electro Tin Plated
• RoHS: RoHS3 Compliant
• REACH: REACH 247 Compliant
• TSCA: TSCA Section 6(h) Compliant
• ETIM: EC001052 Solderless copper terminals for copper conductors
• Flange shape: Ring shape
• Insulation: None
• Reel packaging: N
• AWG-range: 12-10
• Surface protection: Tinned
• Stud size (imperial): 3/8 inch
• Series: C
• Tongue Type: Ring
• Conductor Size: 12 to 10 AWG
• Barrel Type: Serrated
• Length: 1.1 in
• Clearance: 0.45 in
• Tongue Size: 0.59 in W x 0.04 in T
