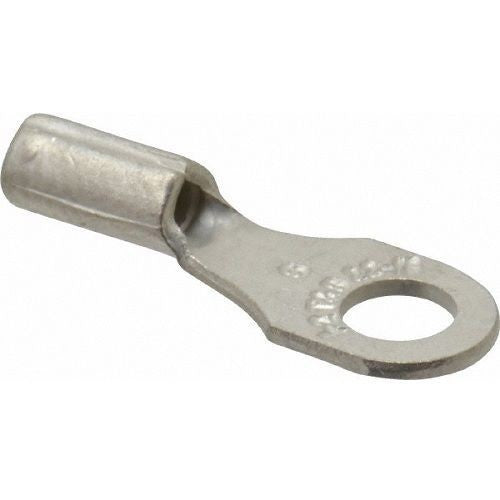

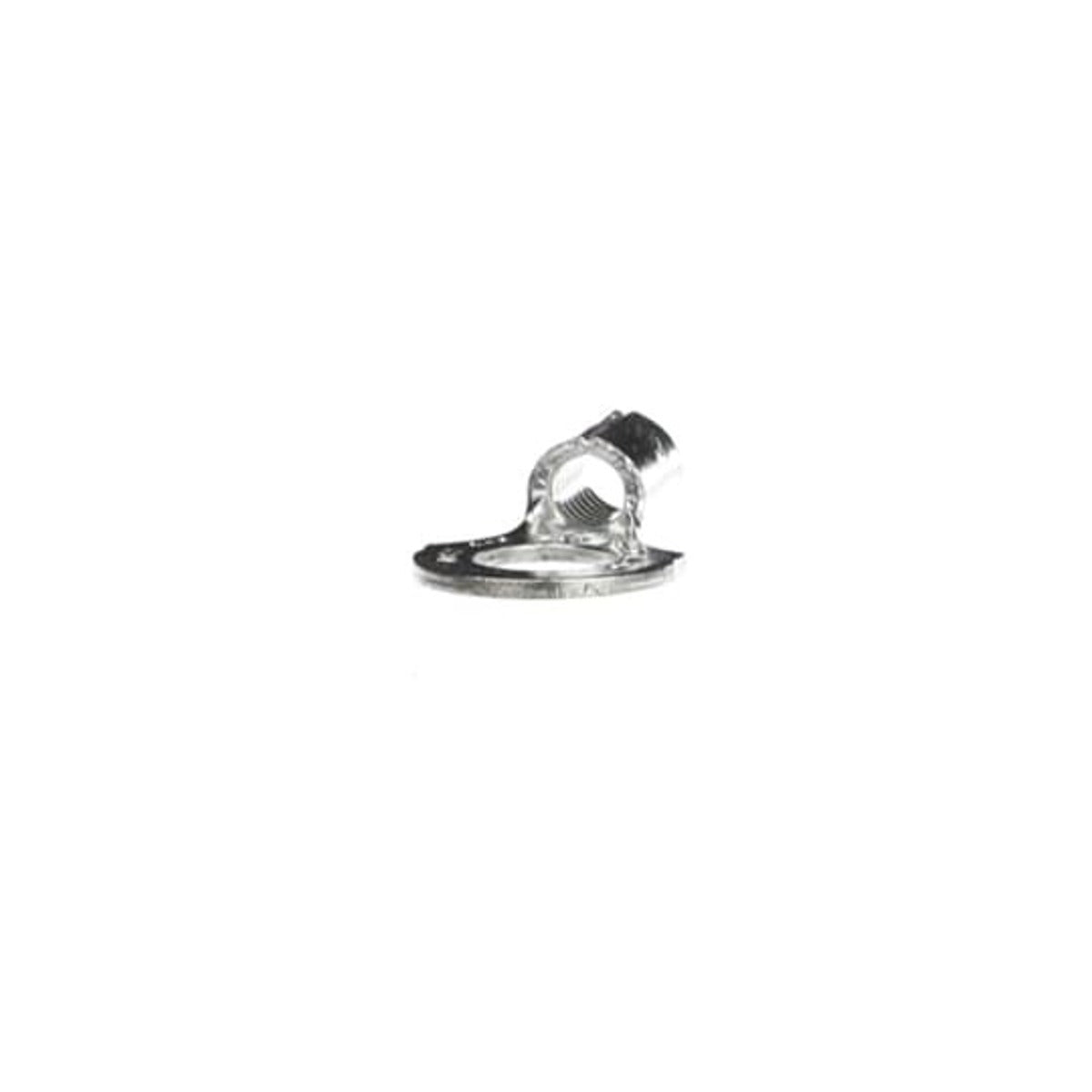

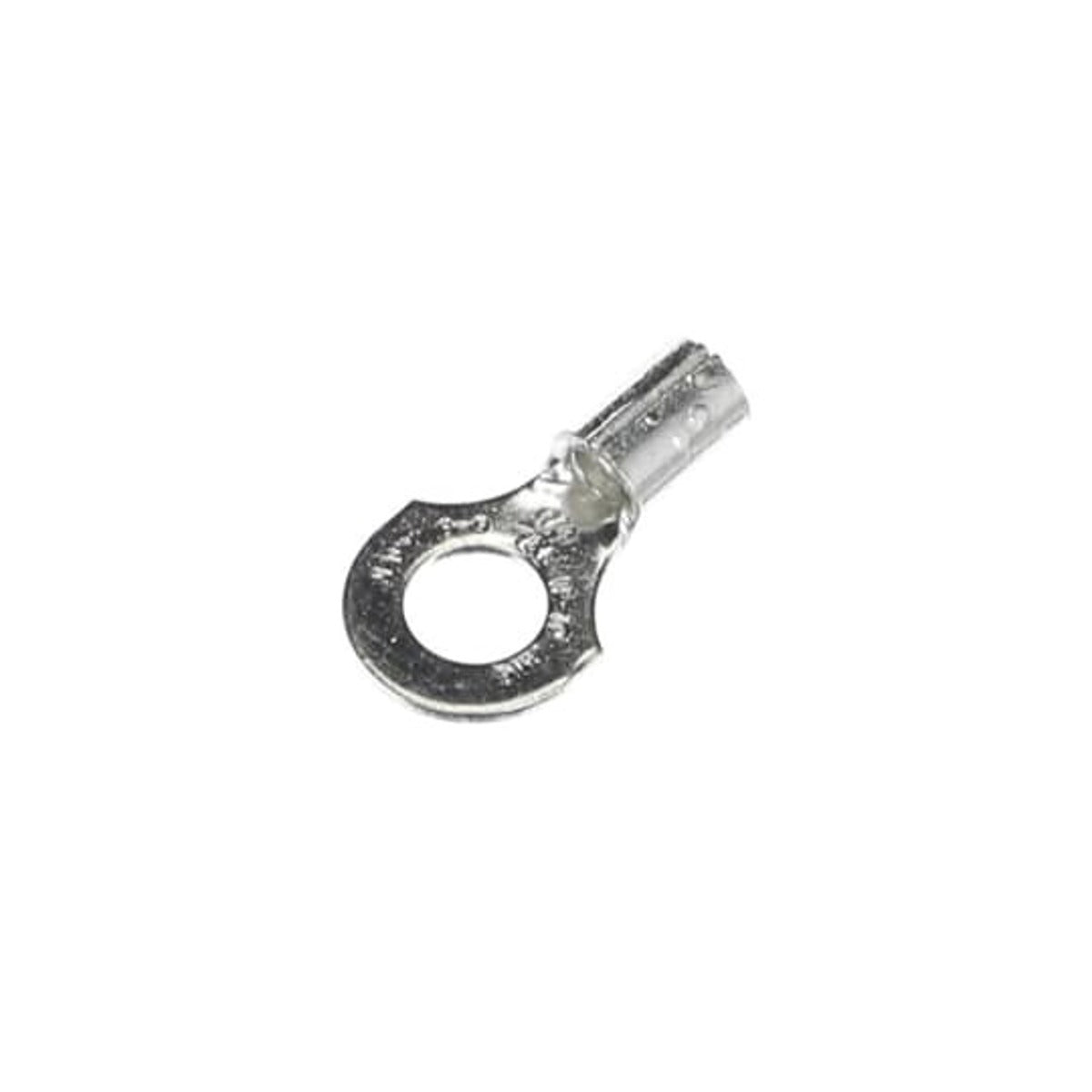

Sta-Kon C71 Non-Insulated Ring Terminal 12-10 AWG 500 Pack

Product Description

The STA-KON C71 non-insulated ring terminals are constructed of electrolytic copper for high conductivity. These terminals can be installed with single or double indentor crimping tools and feature a serrated barrel that increases grip on wire. Designed for a wire range of 12-10 AWG.

• Made of electrolytic copper for high conductivity
• Can be installed with single or double indentor crimping tools
• Serrated barrel increases grip on wire

Product Highlights

Non-insulated ring terminals made of electrolytic copper with serrated barrel for increased wire grip and high conductivity.

Product Information

Standard Information

• Brand: STA-KON
• Manufacturer Part Number: C71
• Country of Origin: United States

Technical Specifications

• Catalog Number: C71
• Manufacturer: ABB - Installation Products
• Brand: Sta-Kon
• Country of Origin: United States
• Made in USA: Yes
• Material: Copper
• Standard: UL E9809
• UPC: 786210810799
• GTIN: 00786210810799
• Item Type: Non-Insulated Ring Terminal
• Voltage Rating: 600 V
• Wire Size: 12-10 AWG
• Type: Standard
• Minimum Conductor Size: 12 AWG
• Maximum Conductor Size: 10 AWG
• Insulation Type: Non-Insulated
• Stud Size: 1/4 Inch
• Temperature Rating: 150 Deg C
• Approval: UL 486-A, CSA 22.2
• Finish: Electro Tin Plated
• RoHS: RoHS3 Compliant
• REACH: REACH 240 Compliant
• TSCA: TSCA Section 6(h) Compliant
• ETIM: EC001052 Solderless copper terminals for copper conductors
• Flange shape: Ring shape
• Insulation: None
• AWG-range: 12-10
• Surface protection: Tinned
• Stud size (imperial): 1/4 inch
• Length: 0.91 in
• Series: C Series
• Application: For WT110M, WT111M, WT112M, WT2000, ERG4002 and ERG4005 tools
• Barrel Type: Serrated
• Tongue Type: Ring
• UNSPSC: 39121432
• Plating Material: Tin
• Maximum Temperature: 302 °F
