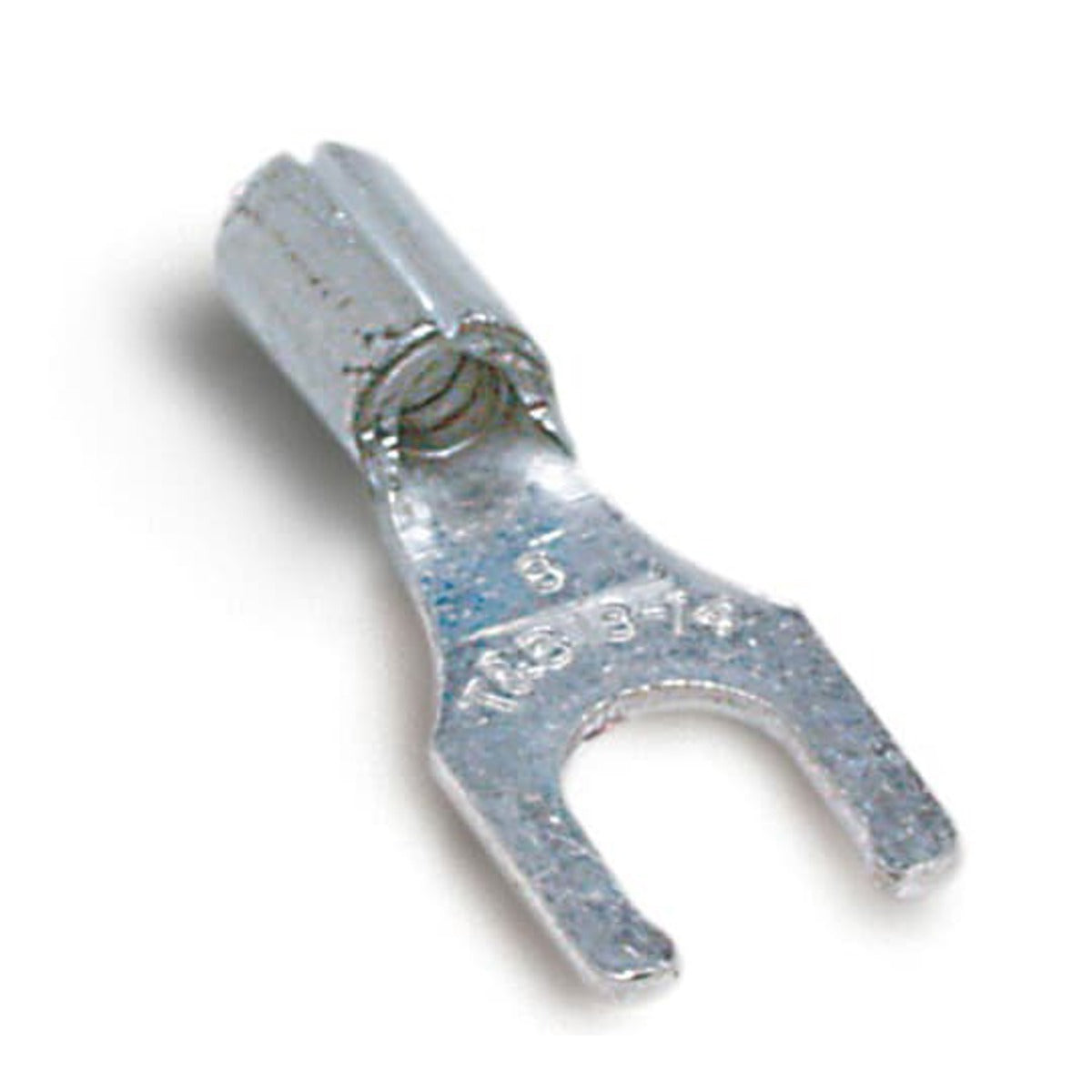

Sta-Kon C222-TB Non-Insulated Locking Fork Terminal #12-#10 AWG (500 Pack)

Product Description

The STA-KON C222-TB is a non-insulated locking fork terminal designed for secure connections. These terminals feature a specialized tongue that allows easy installation like a fork terminal but with the secure hold of a ring terminal. They accommodate wire sizes from #12 to #10 AWG and are made of copper with tin plating. Comes in a pack of 500.

• Locking fork design ensures secure connection
• Constructed from copper with tin plating for enhanced conductivity and corrosion resistance
• Suitable for use in applications up to 600V

Product Highlights

Non-insulated locking fork terminals for wire connections in electrical applications, ensuring a reliable and secure termination.

Product Information

Standard Information

• Brand: STA-KON
• Manufacturer Part Number: C222-TB
• Country of Origin: United States

Technical Specifications

• Catalog Number: C222-TB
• Manufacturer: ABB - Installation Products
• Brand: Sta-Kon
• Country of Origin: United States
• Made in USA: Yes
• Material: Copper
• Special Features: Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring
• Standard: UL E9809
• UPC: 786210811079
• GTIN: 00786210811079
• Item Type: Non-Insulated Locking Fork Terminal
• Voltage Rating: 600 VAC
• Wire Size: 12-10 AWG
• Minimum Conductor Size: 12 AWG
• Maximum Conductor Size: 10 AWG
• Insulation Type: Non-Insulated
• Stud Size: #10
• Approval: UL, CSA
• Type: Locking
• RoHS: RoHS3 Compliant
• REACH: REACH 240 Compliant
• TSCA: TSCA Section 6(h) Compliant
• ETIM: EC001052 Solderless copper terminals for copper conductors
• Flange shape: Fork shape
• Insulation: None
• AWG-range: 12-10
• Surface protection: Tinned
• Stud size (imperial): 10
• Length: 0.85 in
• Series: C
• Clearance: 0.27 in
• Temperature Rating: 150 deg C
• Tongue Size: 0.37 in W x 0.04 in THK
• Tongue Type: Fork
• Standard & Approvals: CSA Certified, RoHS Compliant, UL 94 V-0 Flammability Rating, E9809 UL Listed
• Conductor Size: 12 to 10 AWG
• Barrel Type: Brazed Seam
• Finish: Electro-Tin Plated
