Product Description

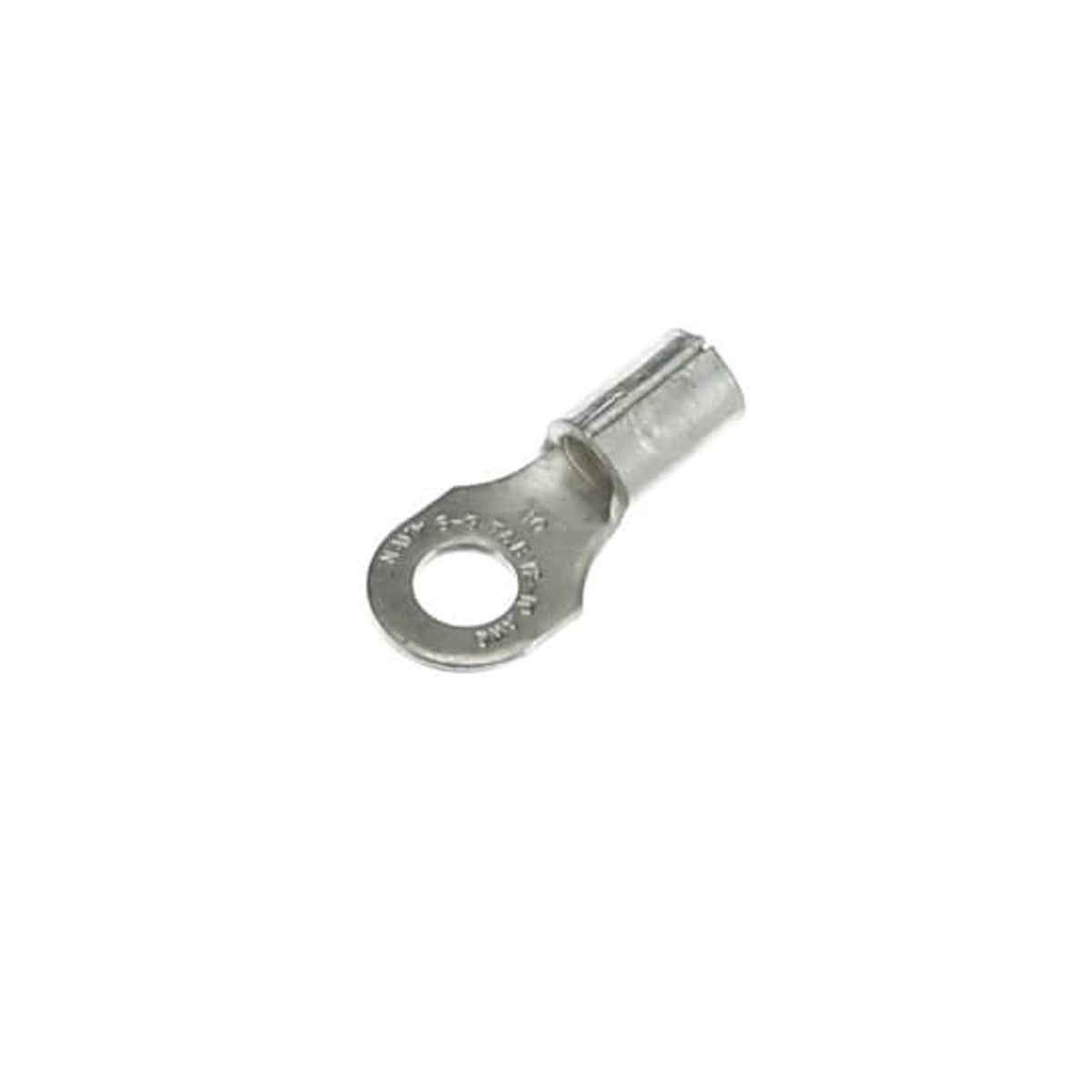

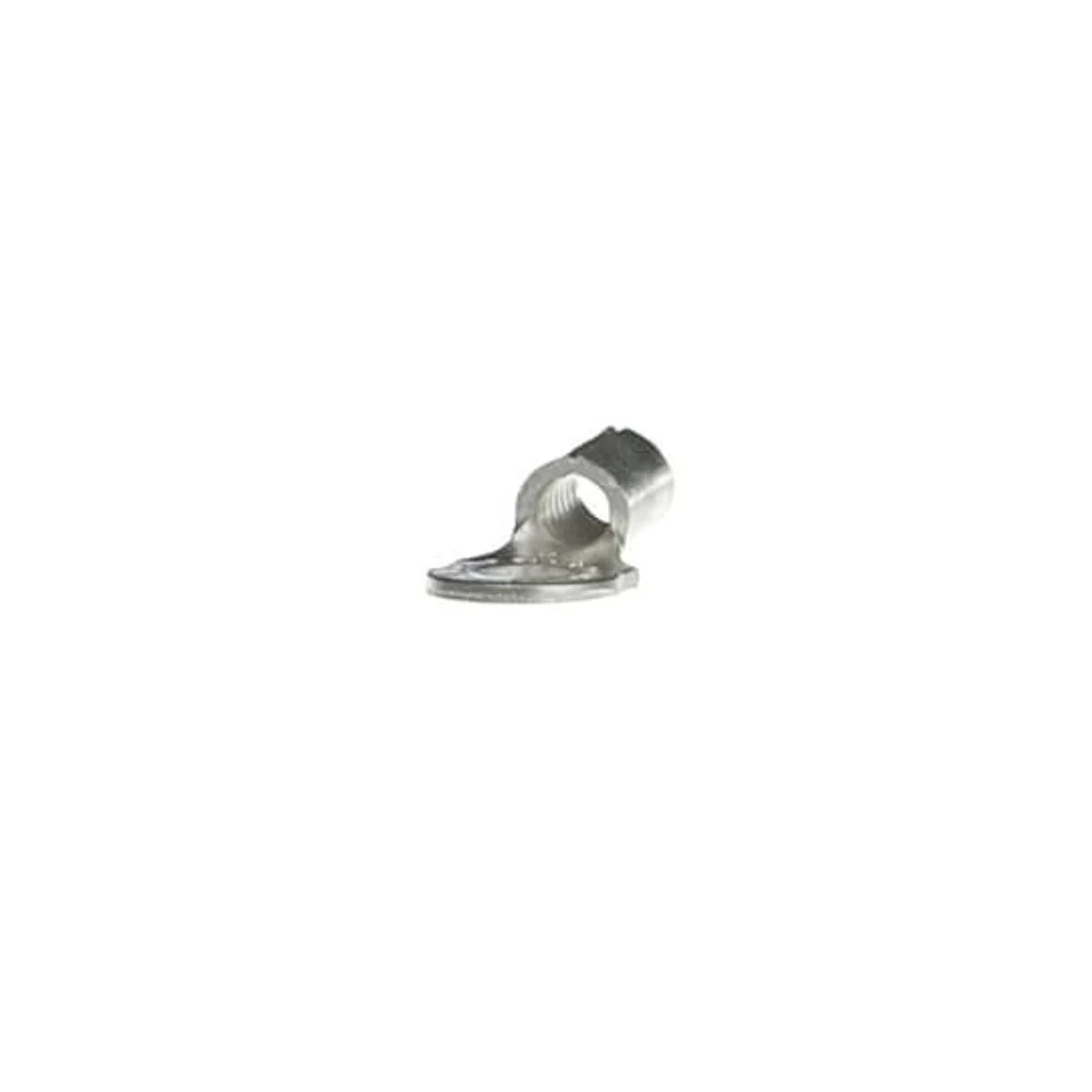

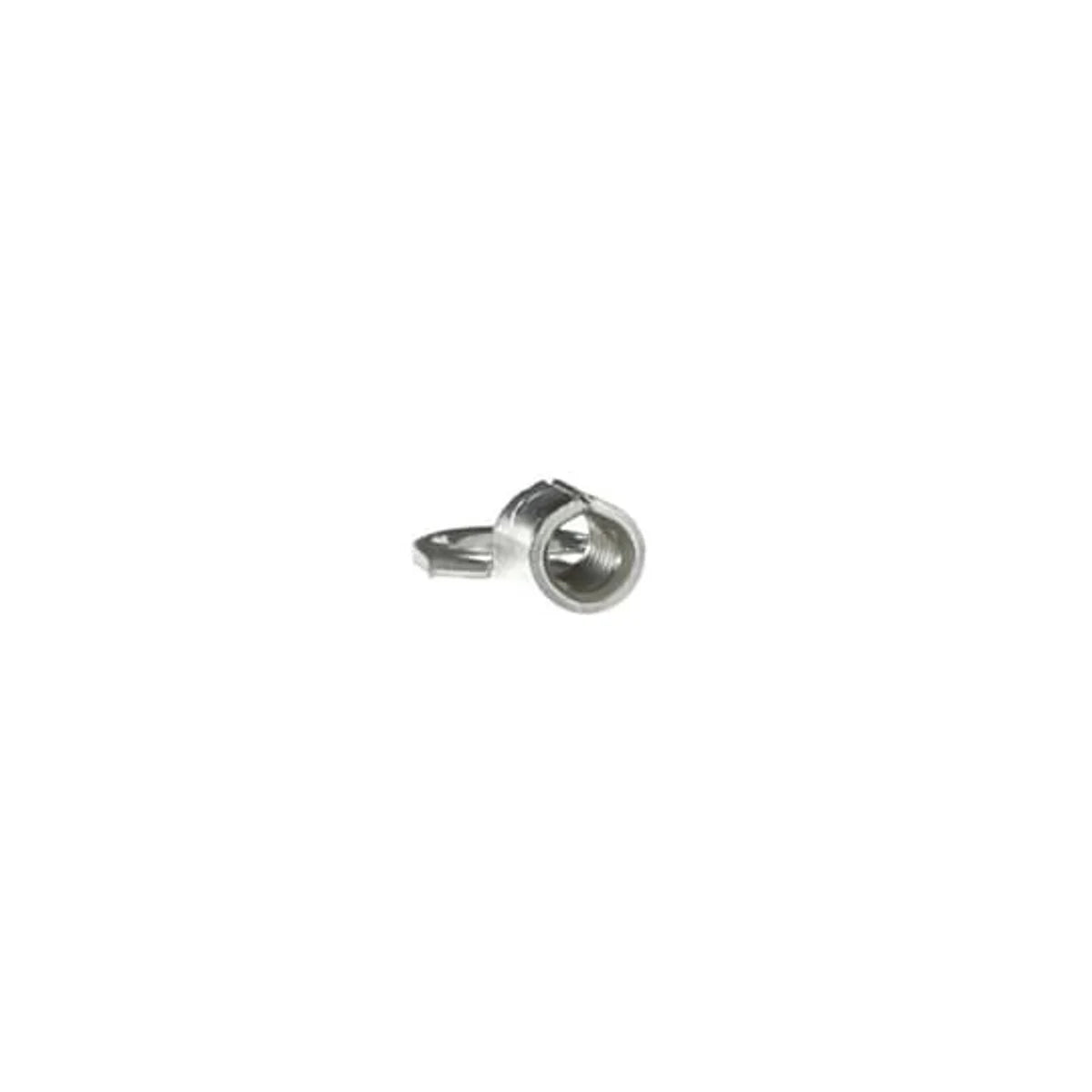

The Sta-Kon C10-10 is a non-insulated ring terminal designed for wire connections. This terminal is suitable for use with wire sizes ranging from twelve to ten American Wire Gauge (AWG). It has a length of eighty-five hundredths of an inch and a width of thirty-eight hundredths of an inch. The bolt hole is sized at number ten.
- Wire range: 12-10 AWG
- Material: Copper, tin plated
- Compliance: UL 486-A, CSA 22.2
Product Highlights
The Sta-Kon C10-10 offers high conductivity due to its electrolytic copper construction. It is compatible with crimping tools and has a serrated barrel to ensure a secure grip on the wire.
Product Information
Standard Information
-
Catalog Number: C10-10
-
Manufacturer: ABB - Installation Products
Technical Specifications
-
Color: Metallic
-
Material: Copper
-
Wire Size: 12-10 AWG
-
Voltage Rating: 600 V
-
Special Features: Serrated barrel increases grip on wire
-
Country of Origin: United States
-
Used With: Crimping tools (single or double indentor)
-
Standard Package: 50
