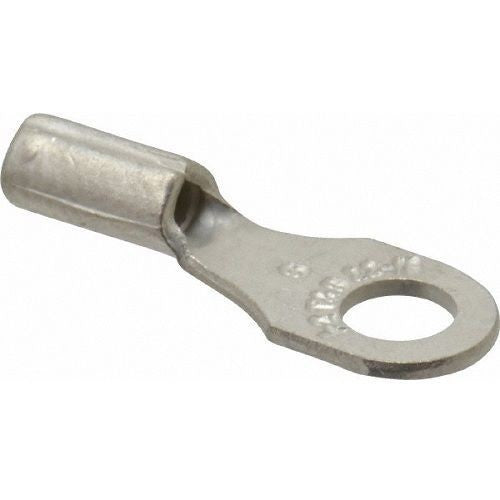

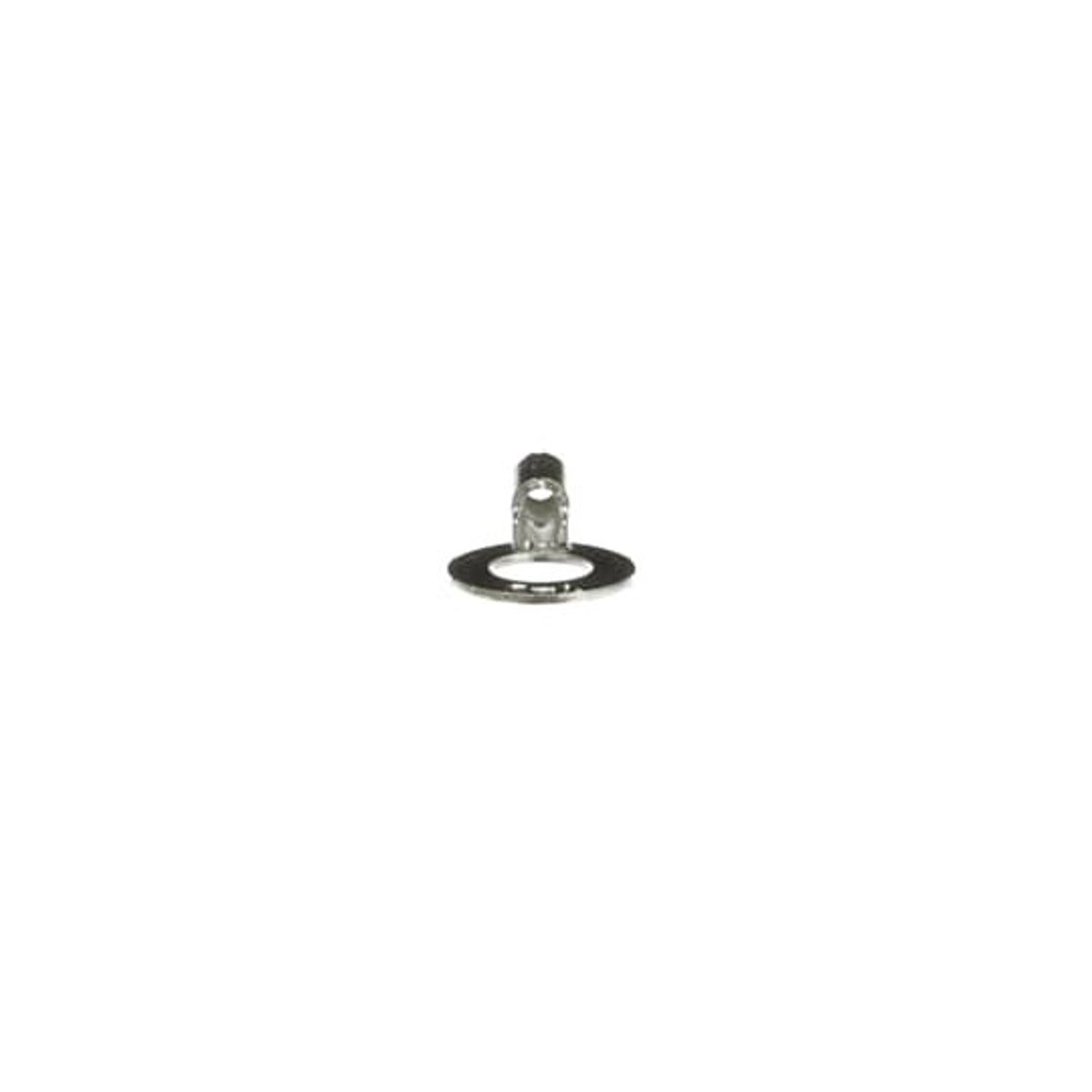

Sta-Kon B71 Non-Insulated Ring Terminal, Length .93 Inches, Width .50 Inches, Bolt Hole 1/4 Inch, Wire Range #18-#14 AWG, 1,000 Pack

Product Description

The STA-KON B71 non-insulated ring terminal is made of electrolytic copper for high conductivity. It can be installed with crimping tools having a single indentor or double indentor, which is recommended for solid wire. The serrated barrel increases grip on wire, and it supports a wire range of #18-#14 AWG.

• Made of electrolytic copper for high conductivity
• Can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire)
• Serrated barrel increases grip on wire

Product Highlights

Electrolytic copper ring terminal ensures high conductivity. Installs with single or double indentor crimping tools. Serrated barrel enhances wire grip.

Product Information

Standard Information

• Brand: STA-KON
• Manufacturer Part Number: B71
• Country of Origin: United States

Technical Specifications

• Catalog Number: B71
• Manufacturer: ABB - Installation Products
• Brand: Sta-Kon
• Country of Origin: United States
• Made in USA: Yes
• Material: Copper
• Special Features: These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire
• Standard: UL E9809
• UPC: 786210809243
• GTIN: 00786210809243
• Item Type: Non-Insulated Ring Terminal
• Voltage Rating: 600 V
• Wire Size: 18-14 AWG
• Type: Non-Insulated
• Minimum Conductor Size: 18 AWG
• Maximum Conductor Size: 14 AWG
• Stud Size: 1/4 Inch
• Temperature Rating: 150 Deg C
• Approval: UL 486-A, CSA 22.2
• Finish: Electro Tin Plated
• RoHS: RoHS3 Compliant
• REACH: REACH 240 Compliant
• TSCA: TSCA Section 6(h) Compliant
• ETIM: EC001052 Solderless copper terminals for copper conductors
• Flange shape: Ring shape
• Insulation: None
• Reel packaging: N
• AWG-range: 18-14
• Surface protection: Tinned
• Stud size (imperial): 1/4 inch
• Length: 0.93 in
• Barrel Type: Brazed Seam
• Series: B
• Tongue Size: 0.5 in W x 0.03 in T
• Tongue Type: Ring
• Standard Package: 1000
