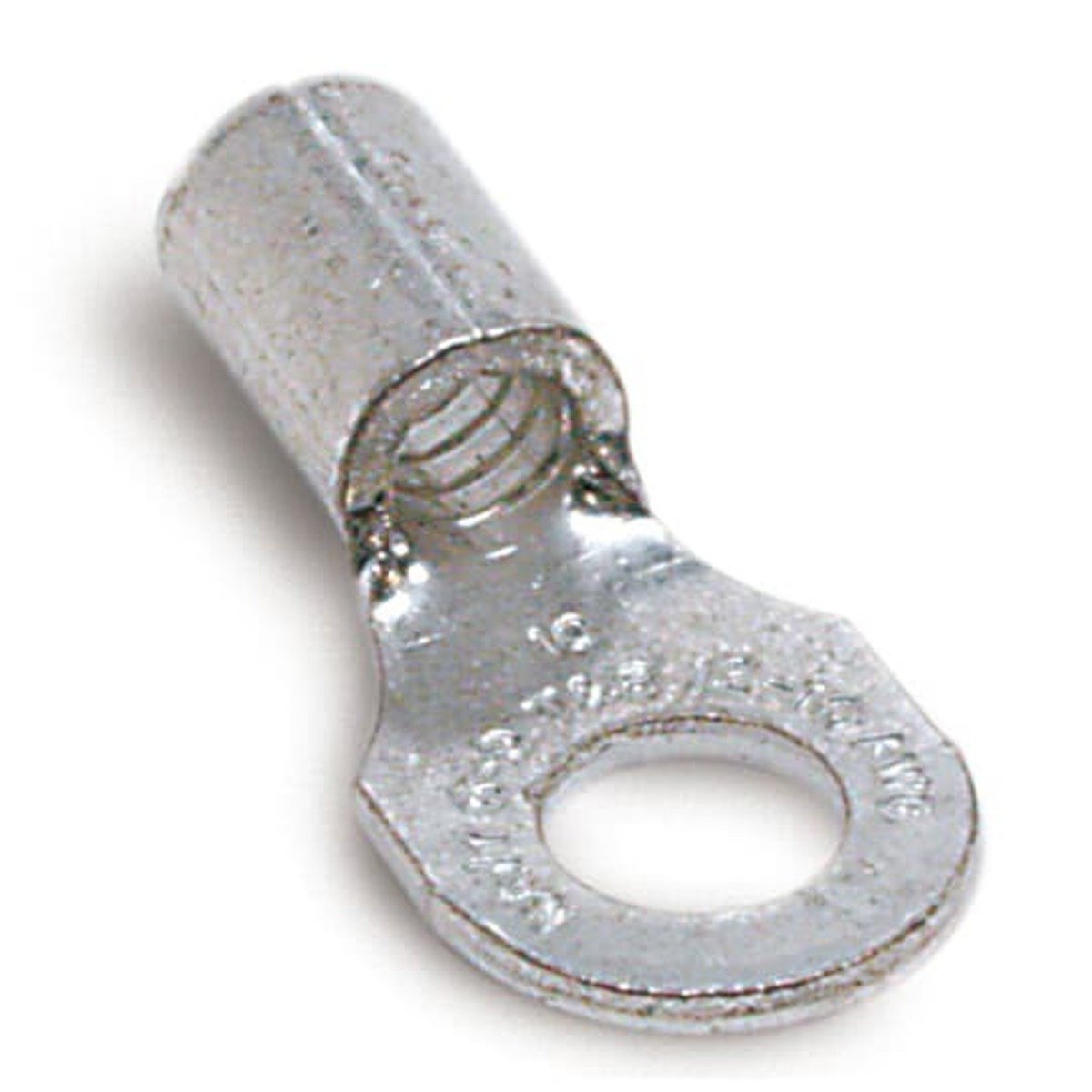

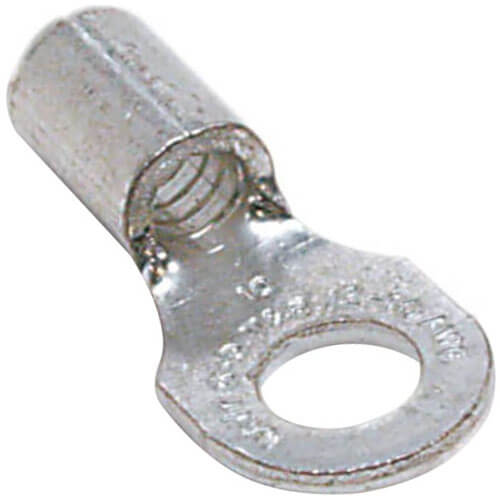

Sta-Kon A18-4 Non-Insulated Ring Terminal #4 22-16 AWG

Product Description

The STA-KON A18-4 non-insulated ring terminal is made of electrolytic copper for high conductivity. It is designed for use with crimping tools having a single or double indentor. The serrated barrel increases grip on the wire. This ring terminal accommodates wire sizes from 22-16 AWG and has a bolt hole size of #4.

• Made of electrolytic copper for high conductivity
• Can be installed with crimping tools having a single indentor or double indentor
• Serrated barrel increases grip on wire

Product Highlights

Non-insulated ring terminal made from electrolytic copper with serrated barrel for secure wire grip. Suitable for 22-16 AWG wire.

Product Information

Standard Information

• Brand: STA-KON
• Manufacturer Part Number: A18-4
• Country of Origin: United States

Technical Specifications

• Catalog Number: A18-4
• Manufacturer: ABB - Installation Products
• Brand: Sta-Kon
• Country of Origin: United States
• Made in USA: Yes
• Material: Copper
• Special Features: These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire
• Standard: UL E9809
• UPC: 786210802978
• GTIN: 00786210802978
• Item Type: Non-Insulated Ring Terminal
• Voltage Rating: 600 V
• Wire Size: 22-16 AWG
• Type: Standard
• Minimum Conductor Size: 22 AWG
• Maximum Conductor Size: 16 AWG
• Stud Size: 0.112 in
• Temperature Rating: 150 Deg C
• Approval: UL 486-A, CSA 22.2
• Finish: Electro Tin Plated
• AWG: 22-16
• Gauge: 16, 22
• Features: Non-Insulated
• Product Type: Ring (Terminal)
• Bolt Hole Size: #4
• Seam: Brazed
• Standards: CSA Certified, UL Listed E9809
• Wire Type: Solid
• Max. Temp.: 221 Degrees F
• Seam Style: Brazed
• Wire Range: 22 to 16 AWG
• Termination: Crimp Termination Only
• Barrel Style: Serrated Barrel
• Hole Spacing: 0.27 in
• Max. Voltage: 600 V
• Tongue Width: 0.31 in
• Barrel Length: 0.32 in
• For Wire Size: 16 AWG, 18 AWG, 20 AWG, 22 AWG
• Terminal Type: Standard
• Tongue Length: 0.43 in
• Contact Finish: Tin
• For Wire Sizes: 22 AWG to 16 AWG
• Overall Length: 0.75 in
• Terminal Shape: Ring Terminal
• Connection Type: Crimp
• Insulation Type: Non-Insulated
• Maximum Voltage: 600 V
• Contact Material: Copper
• Insulation Color: Bare
• Tongue Thickness: 0.03 in
• Ring Width Ranges: 0.26 - 0.50 inches
• Termination Style: Crimp
• Connection Material: Copper
• Terminal Connection: Crimp
• Combo for Heat Shrink: None / Non-Insulated
• Compatible with Product Type: Copper Conductors
• Maximum Operating Temperature: 221 Degrees F
• Minimum Operating Temperature: 221 Degrees F
• Tongue Width - Wire Connector: 0.31 in
• Country of Origin (subject to change): United States
• Category: Electrical terminals
• RoHS: RoHS3 Compliant
• REACH: REACH 247 Compliant
• TSCA: TSCA Section 6(h) Compliant
• ETIM: EC001052 Solderless copper terminals for copper conductors
• Flange shape: Ring shape
• Insulation: None
• Reel packaging: N
• AWG-range: 22-16
• Surface protection: Tinned
• Angle: 180 Degree(s)
• Family Name: Sta-Kon and Catamount Terminal
• Primary Type: Ring
• Series: A Series
