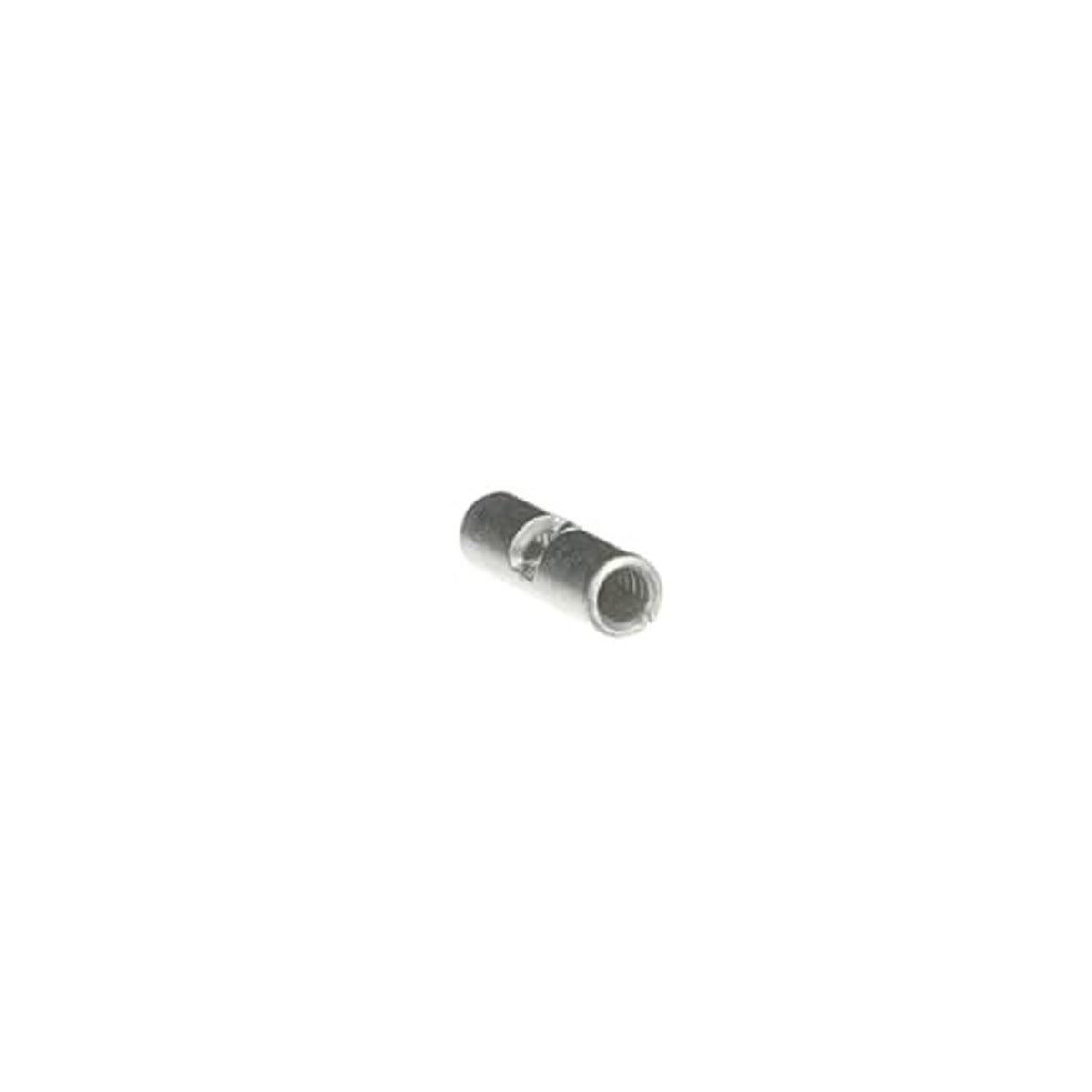

Sta-Kon 2C-10 Non-Insulated Butt Splice, Length 0.72 Inch, Wire Range 12-10 AWG

Brand: STA-KON
SKU: 2C-10
Availability: In Stock

Ships same day if ordered by 12 pm
$90.77
$90.77
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The STA-KON 2C-10 non-insulated butt splice connects wires with a crimp-type connection. With a length of 0.72 inches and a width of 0.22 inches, it accommodates wire sizes ranging from 12 to 10 AWG. Constructed from tin-plated copper, this splice ensures a reliable electrical connection for various applications.

  • Wire range: 12-10 AWG
  • Made of copper with tin plating
  • Non-insulated butt splice

Product Highlights

This non-insulated butt splice is ideal for creating secure wire connections in electrical projects.

Product Information

Standard Information

  • Brand: STA-KON
  • Manufacturer Part Number: 2C-10
  • Country of Origin: United States
Technical Specifications
Catalog Number
2C-10
Manufacturer
ABB - Installation Products
Brand
Sta-Kon
Country of Origin
United States
Made in USA
Yes
Finish
Electro -Tin Plated
Material
Copper
Standard
UL E9809
UPC
786210800073
GTIN
00786210800073
Item Type
Non-Insulated Butt Splice
Temperature Rating
150 C
Voltage Rating
600 V
Type
Butt
Length
0.72 Inch
Barrel Outer Diameter
0.22 Inch
Conductor Size
12 to 10 AWG
Insulation Type
Non-Insulated
Approval
UL 94, CSA
Wire Range
12-10 AWG
Plating
Tin Plated
Width
0.22 Inch
Seam
Brazed
Barrel ID
0.31 in
Max. Temp.
221 Degrees F
Seam Style
Brazed
Body Finish
Tin Plated
Max. Voltage
600 V
Body Material
Copper
For Wire Size
10 AWG, 12 AWG
Overall Width
0.22 in
Connector Type
Butt Splice
Overall Length
0.72 in
Connection Type
Crimp
Maximum Voltage
600 V
Wire Size Range
12 AWG - 10 AWG
Contact Material
Copper
Insulation Material
None
Barrel Inside Diameter
0.31 in
Maximum Operating Temperature
302 Degrees F
Country of Origin (subject to change)
United States
Compatible Installation Tool Model Number
ERG4002, WT110M, WT111M, WT112M, WT2000
Application Tools
WT110M, WT111M, WT112M, WT2000, ERG4002
Category
Wire or cable compression splice
AWG-range
12-10
Surface protection
Tinned
Insulation
None
