Sta-Kon 22R106 Ring Terminal Insulation Piercing Magnet Wire 16 to 12 AWG

Product Description

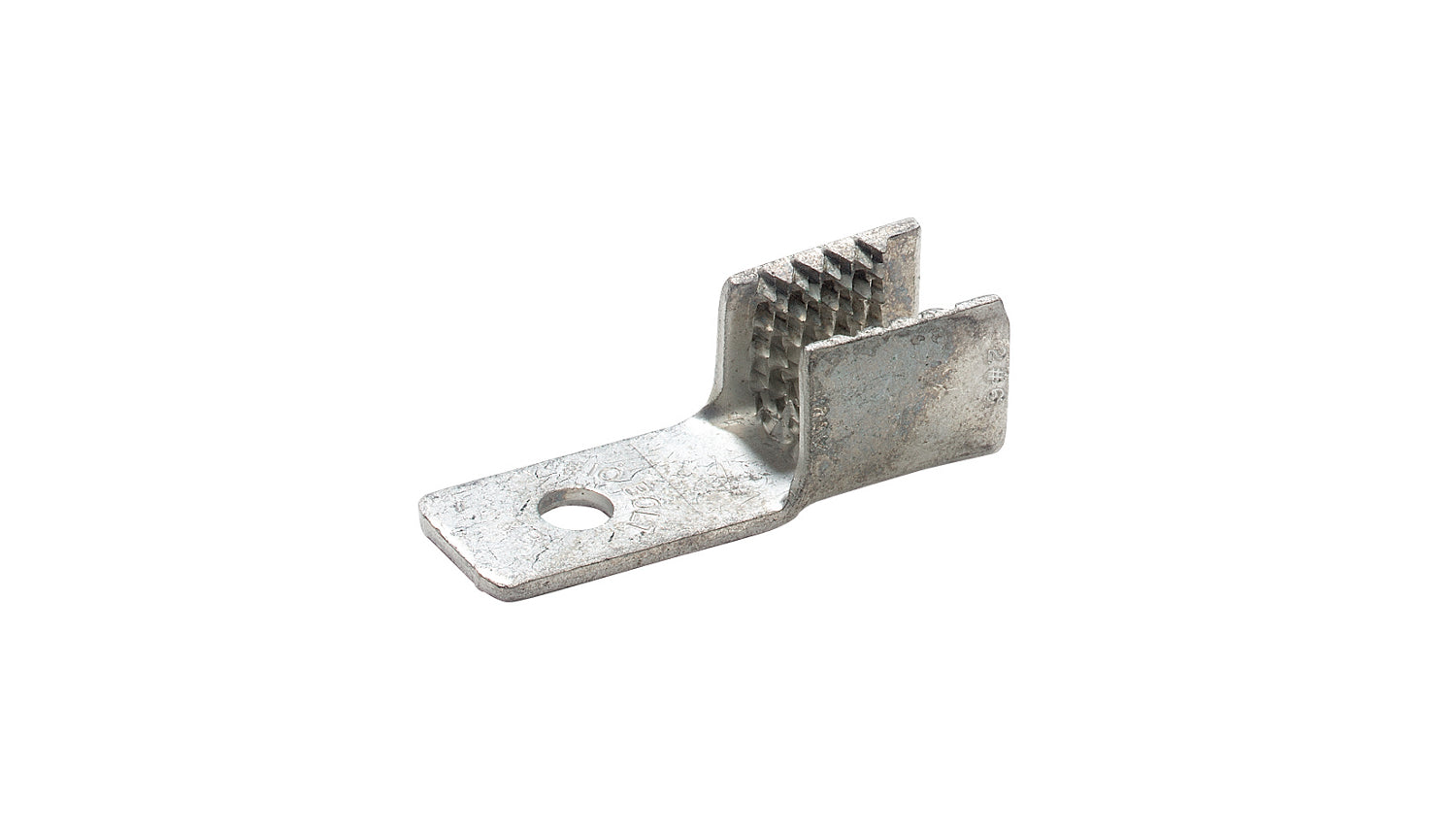

Sta-Kon 22R106 is a Dragon Tooth insulation piercing magnet wire ring terminal designed for use with conductors sized 16 to 12 AWG. This device effectively connects aluminum and copper conductors without stripping insulation. It ensures a reliable electrical connection in motor and transformer applications.

• Designed to pierce insulation for effective connections
• Compatible with 16 to 12 AWG conductors
• Made from copper alloy with a tin-plated finish

Product Highlights

This ring terminal allows quick installation and requires minimal training for effective use. It is suitable for various wiring applications in electric motors and transformers.

Product Information

Standard Information

• Manufacturer: ABB
• Brand: Sta-Kon

Technical Specifications

• Barrel Size: 0.45 inches long x 0.25 inches wide
• Conductor Type: Aluminum/Copper
• Finish: Tin Plated
• Specifications: 2580 to 12330 kcmil, 0.05 to 0.08 inches thick
• Stud Size: #10
• Tongue Size: 0.3 inches wide
• Type: Insulation Piercing Magnet Wire
• Conductor Size: 16 to 12 AWG
• Length: 0.91 inches
• Material: Copper Alloy
