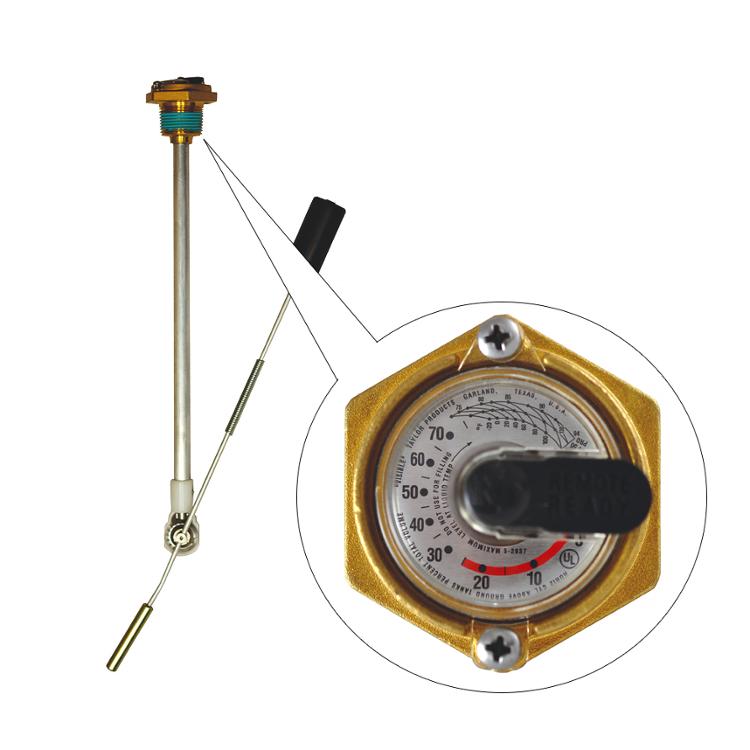

Squibb Taylor 131619 Vertical Liquid Level Gauge 119 Gal

Product Description

The SQUIBB TAYLOR 131619 is a vertical liquid level gauge designed for tank monitoring applications in agricultural and industrial settings. It fits a 1 inch tank coupling and features a 1 inch brass head with a top-mount installation configuration. The gauge is rated for tanks up to 119 gallons or 420 pounds of liquid capacity, making it suitable for propane, chemical, or liquid storage tanks commonly serviced by licensed technicians and farm equipment operators. A 2 inch hex wrenching flat is built into the head for proper installation torque.

This gauge is intended for vertical tank installations where a top-mount fitting is required. It is commonly used in agricultural supply systems, propane storage tanks, and similar liquid containment vessels. The 1 inch brass head construction provides corrosion resistance suitable for use with a range of liquid media. Technicians working in ag equipment service, propane delivery, or industrial fluid management will find this gauge appropriate for field replacement and new installations.

Key Features

• 1 inch brass head for corrosion-resistant, durable tank coupling connection
• Top-mount vertical installation configuration
• Rated for tanks up to 119 gallons or 420 pounds capacity
• 2 inch hex wrenching flat for controlled torque application during install
• Specified installation torque range of 75 to 150 ft-lbs (102 to 200 Nm)

Compatibility

Designed for vertical tanks with a 1 inch tank coupling, suitable as an OEM-style replacement gauge for agricultural and industrial liquid storage tanks requiring a top-mount brass head fitting.

Installation Notes

Installation should be performed by a qualified technician familiar with tank fittings and liquid storage systems. Before servicing, ensure the tank is depressurized and emptied to a safe level per applicable safety standards. Use an appropriate wrench on the 2 inch hex flat and torque the fitting to between 75 and 150 ft-lbs as specified. Do not overtorque, as this may damage the tank coupling or gauge body.

Technical Specifications

• Tank Coupling Size: 1 inch
• Head Type: 1 inch Brass
• Mount Type: Top
• Orientation: Vertical
• Capacity: 119 gallons / 420 pounds
• Hex Wrenching Flat: 2 inch
• Installation Torque: 75 to 150 ft-lbs (102 to 200 Nm)

Standard Information

• Brand: SQUIBB TAYLOR
• Manufacturer Part Number: 131619
