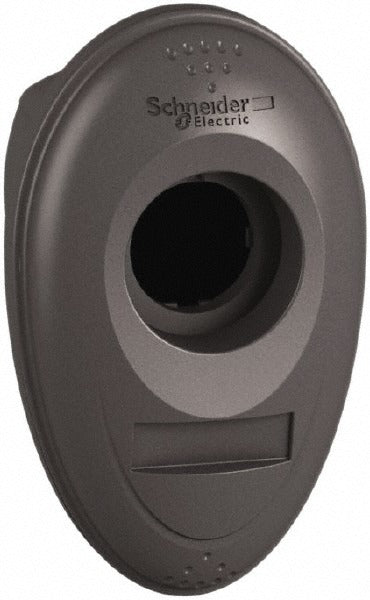

Square D ZBRM01 Wireless Pushbutton System IP65

Product Description

The SQUARE D ZBRM01 is a wireless pushbutton system designed for industrial and commercial control applications where running control wiring is impractical or cost-prohibitive. The unit carries an IP65 ingress protection rating, meaning it is fully dust-tight and protected against low-pressure water jets — making it suitable for wash-down environments and outdoor installations. Measuring 3.5 inches long by 3.3 inches wide by 3.3 inches tall and weighing 2.3 pounds, the ZBRM01 provides a compact, self-contained wireless actuation solution. Licensed electricians and industrial control technicians are the primary installers for this type of device.

The ZBRM01 is suited for use in light industrial, commercial, and process control environments where traditional hardwired pushbutton stations are difficult to route or where operator mobility is required. Typical applications include machine control panels, conveyor systems, remote start/stop stations, and similar installations requiring flexible operator interface placement. The wireless design eliminates the need for dedicated control wiring runs between the operator station and the control panel, reducing installation time and conduit cost.

Key Features

• IP65 ingress protection rating — fully dust-tight and resistant to directed water spray
• Wireless operation eliminates dedicated control wiring between station and panel
• Compact form factor: 3.5 x 3.3 x 3.3 inches for flexible mounting locations
• Meets CSA C22.2 No. 14 and UL 508 standards for industrial control equipment
• Compliant with EN/IEC 60947-5-1 for low-voltage switchgear and controlgear
• Meets ETSI EN 300 440-1, EN 300 440-2, EN 301 489-1, and EN 301 489-3 for wireless radio performance and EMC

Compatibility

Designed as an OEM-style wireless pushbutton component for use in industrial and commercial control panel applications compatible with the SQUARE D Harmony XB5R wireless pushbutton system platform.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements and local electrical codes. De-energize and lock out the control panel before connecting the receiver module or making any wiring terminations. Verify wireless signal range and transmission reliability during commissioning before placing the system into service. Follow the manufacturer installation guide for pairing the transmitter to the receiver module.
