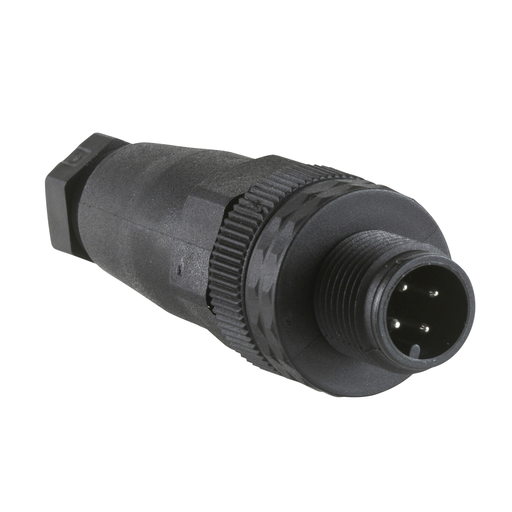

Square D XZCC12MDP40B Connector, Male, M12, 4-Pin, Straight, PG7 Cable Gland

Product Description

The Square D XZCC12MDP40B connector serves as a reliable solution for cabling applications. It features a straight male design with four pins and is optimized for use in various electrical setups. The screw terminal ensures a secure cable connection, while the plastic collar enhances durability in demanding environments.

• M12, 4-pin straight male connector with screw terminal for easy installation.
• Includes a screw-on cable connector fixing and PG7 cable gland for secure cable management.
• Rated for operational voltages of 125V AC and 150V DC, with an output current of 3A and IP67 protection for moisture and dust resistance.

Product Highlights

This connector is designed for optimal performance in industrial and commercial applications, ensuring robust connectivity and protection against environmental factors.

Product Information

Standard Information

• Brand: Square D
• Part Number: XZCC12MDP40B

Technical Specifications

• Accessory Category: Cabling accessories
• Accessory Type: Connector
• Electrical Connection: Straight male connector M12, 4 pins
• Collar Material: Plastic
• Cable Connection: Screw terminal (0.75 mm²)
• Cable Gland Type: PG7
• Input Voltage AC: 125V
• Input Voltage DC: 150V
• Output Current: 3A
• Enclosure Material: Plastic
• IP Protection: IP67
• Operating Temperature: -40 to 185 °F
• Weight: 0.06 lb (0.025 kg)
• Insulating Resistance: 1000 MΩ
• Contact Resistance: 8000 µOhm
• RoHS Compliant: Yes
