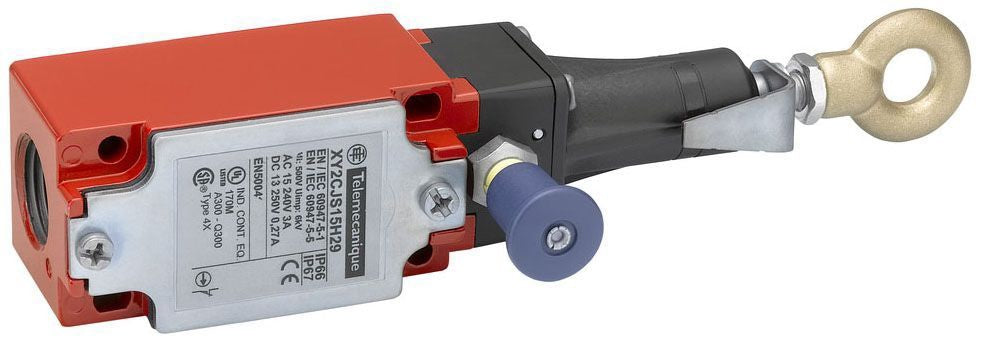

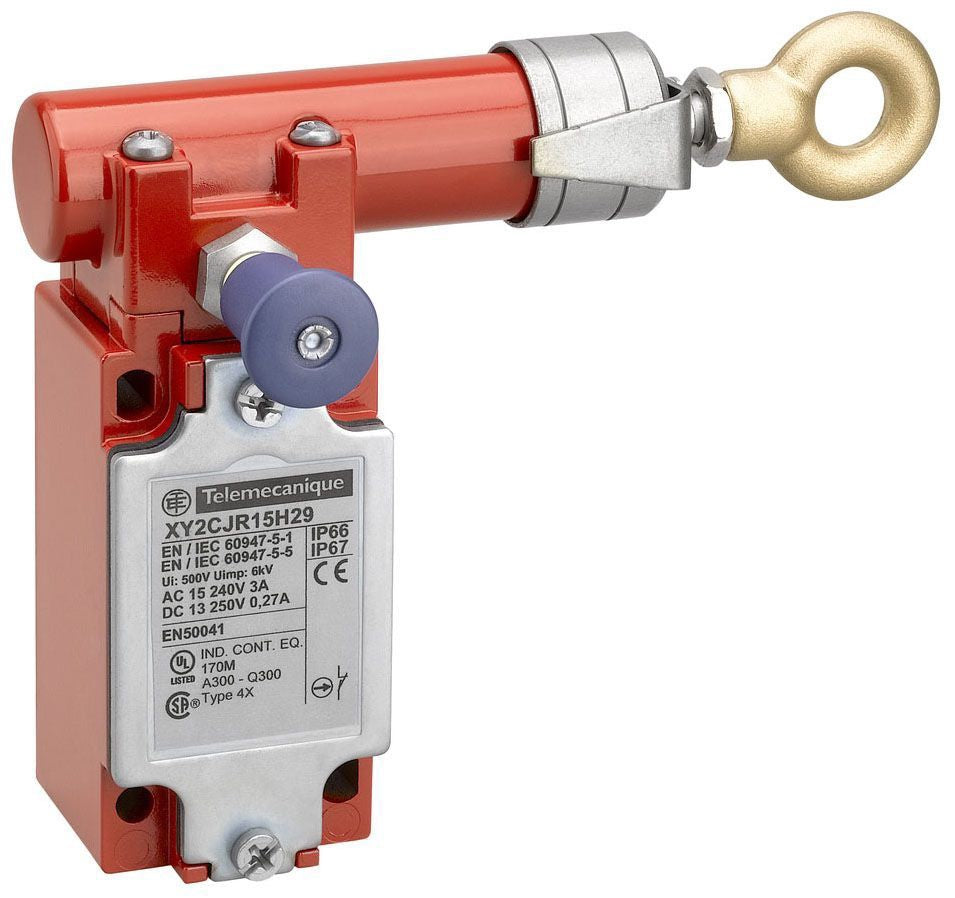

SQUARE D XY2CJR15 Latching Emergency Stop Rope Pull Switch

Product Description

The SQUARE D XY2CJR15 is a latching emergency stop rope pull switch. This switch operates with the Telemecanique XY2C rope pull switch systems. It includes a right-hand side trigger cable anchor point. Users can access 1 NC (Normally Closed) and 1 NO (Normally Open) contact configuration. The product is built with a red RAL 3000 housing that ensures high visibility. Its galvanized steel cover and Zamak body provide durability. The reset function is performed using a pull button, making it user-friendly. This switch is ideal for various industrial applications such as woodworking, textile, and printing machines.

• Latching emergency stop rope pull switch with right-hand side anchor
• Features 1 NC and 1 NO slow-break contacts
• Suitable for Telemecanique XY2C emergency stop systems

Product Highlights

This product offers reliable operation in emergency situations, ensuring safety in industrial environments.

Product Information

Standard Information

• Brand: SQUARE D
• MPN: XY2CJR15

Technical Specifications

• Type: Latching emergency stop rope pull switch
• Housing Colour: Red RAL 3000
• Contacts Type: 1 NC + 1 NO
• Contact Operation: Slow-break
• Reset Method: Pull button
• Cable Entry Number: 1 tapped entry Pg 13.5 cable gland
• Enclosure Type: IP66/IP67
• Voltage Rating: 240 VAC/250 VDC
• Amperage Rating: 3, 2.7 A
