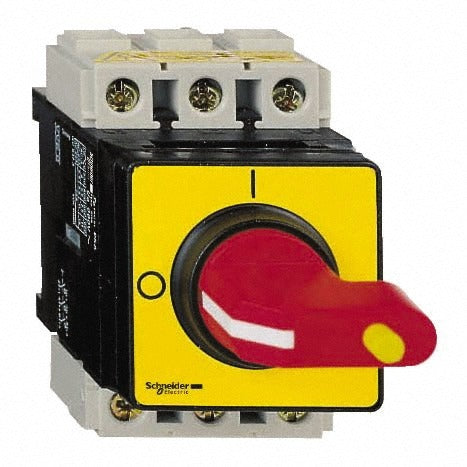

Square D VVE3 Cam Disconnect Switch Enclosed Fused 690VAC

Product Description

The SQUARE D VVE3 is an enclosed, fused cam disconnect switch rated for 690 volts AC. It is designed to interrupt power to electrical circuits and machinery, providing a visible isolation point for safe maintenance and servicing. This switch features a 3-pole, 3-wire configuration with a 3NO contact form. It ships with an integrated handle for manual operation. The unit measures 3.27 inches in overall height, 2.36 inches in overall width, and 4.33 inches in overall depth, making it a compact option for panel or enclosure mounting. Licensed electricians and industrial maintenance technicians are the primary installers of this device.

The VVE3 is suited for both commercial and light industrial applications where a code-compliant, lockable disconnect is required upstream of motors, HVAC equipment, or other three-phase or single-phase loads. Its IP20 and IP65 ingress protection ratings and NEMA 1 and NEMA 12 enclosure ratings make it adaptable to indoor environments ranging from clean control rooms to areas exposed to dust and oil mist. The included handle allows for direct manual actuation without additional accessories.

Key Features

• Fused disconnect design provides both isolation and overcurrent protection in a single device
• 690VAC voltage rating supports a wide range of industrial supply voltages
• 3-pole, 3NO configuration accommodates three-phase load switching
• Dual ingress protection ratings: IP20 and IP65
• NEMA 1 and NEMA 12 enclosure ratings for varied indoor environments
• Certified to CSA, GL, IEC 60947-3, and UL standards
• Handle included for direct manual operation

Compatibility

Designed as an OEM-style enclosed fused cam disconnect switch for commercial and industrial electrical systems requiring a 3-pole, 690VAC rated isolation device.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the upstream supply before beginning any wiring or mounting work. Verify that the fuse ratings and enclosure mounting orientation comply with the equipment manufacturer specifications and the governing electrical code. Do not exceed the 690VAC voltage rating of the switch.
