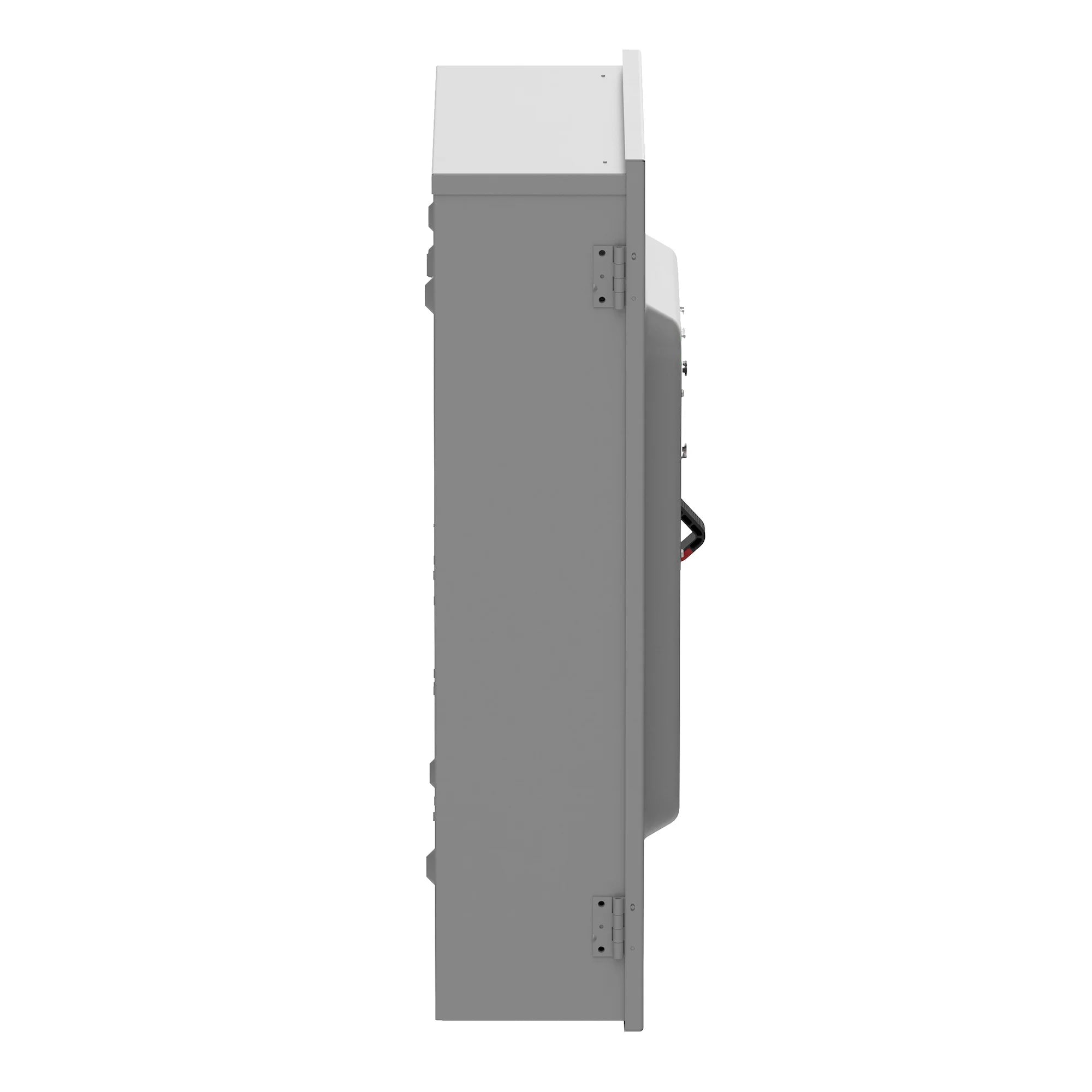

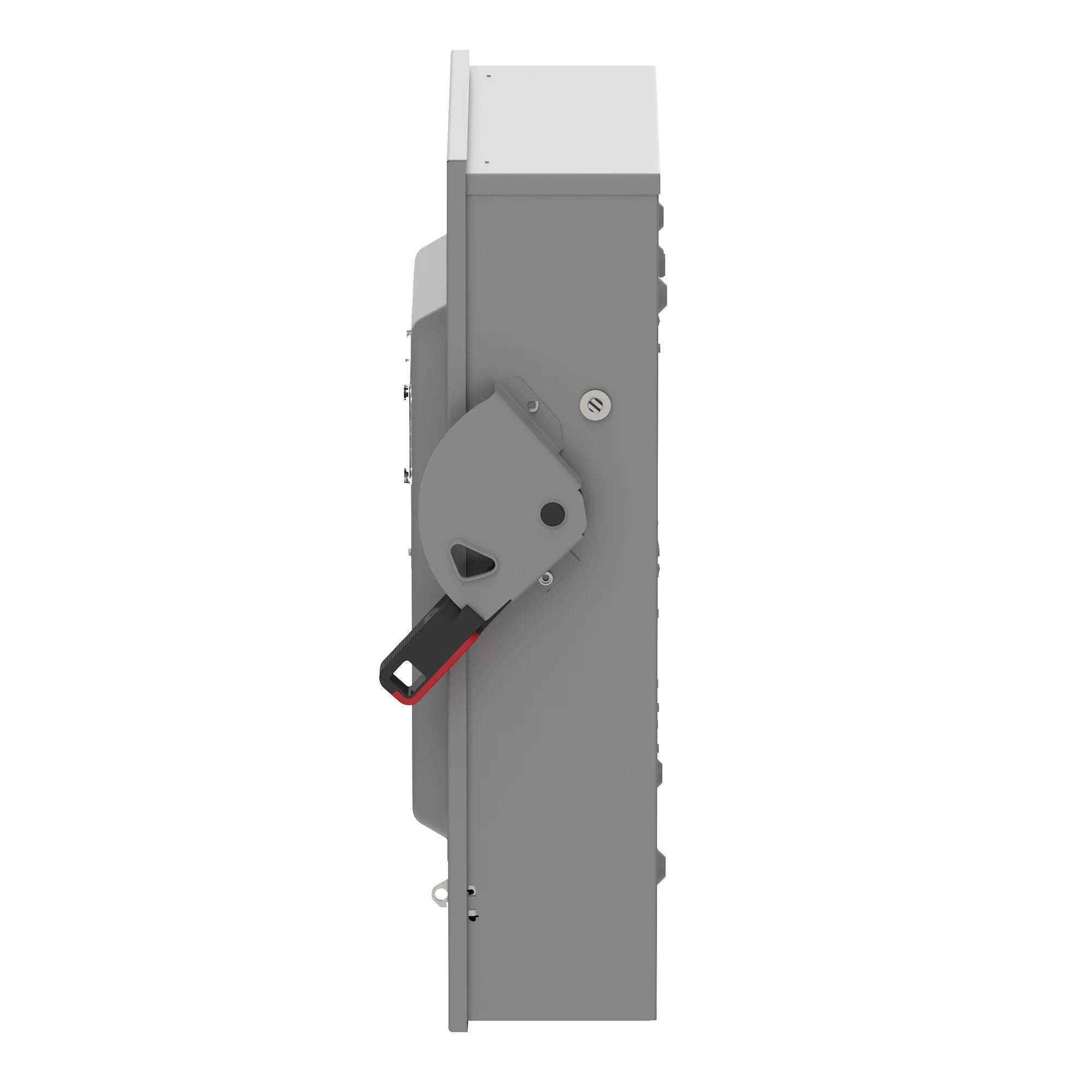

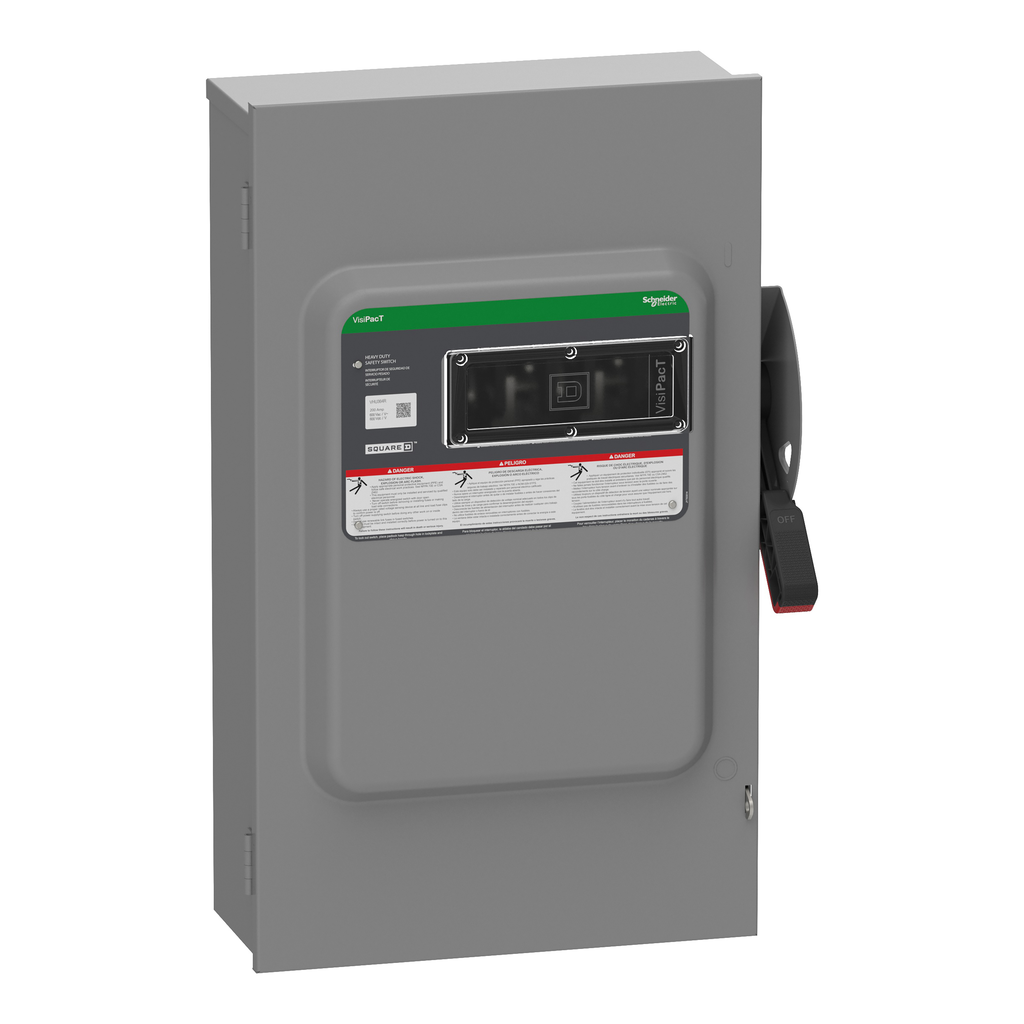

Square D VHU364R Safety Switch, Heavy Duty, 200A, 600V, NEMA 3R

Product Description

Square D VHU364R is a heavy-duty safety switch designed by Schneider Electric. This switch handles a current rating of 200 amps and operates at voltages up to 600 VAC and 600 VDC. It has been built to meet rigorous commercial and industrial requirements with enhanced durability.

• Durable three-blade non-fusible design.
• Features a quick-make, quick-break operating mechanism.
• Type 3R rated with a galvannealed steel enclosure.

Product Highlights

This safety switch is equipped with a viewing window and a color-coded indicator handle for easy identification. It has a 3-pole configuration and can accommodate a solid neutral kit for additional flexibility.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: VHU364R
• Line Rated Current: 200 A
• Voltage: 600 VAC / 600 VDC
• Number of Poles: 3 Pole
• Mounting Type: Surface
• Width: 17.016 inches
• Depth: 8.56 inches
• Height: 28.94 inches
• Net Weight: 19.96 kg
• Certifications: UL Listed File E2875
• GTIN: 03606485894942
• CA Prop65 Warning: WARNING: This product can expose you to chemicals including Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
