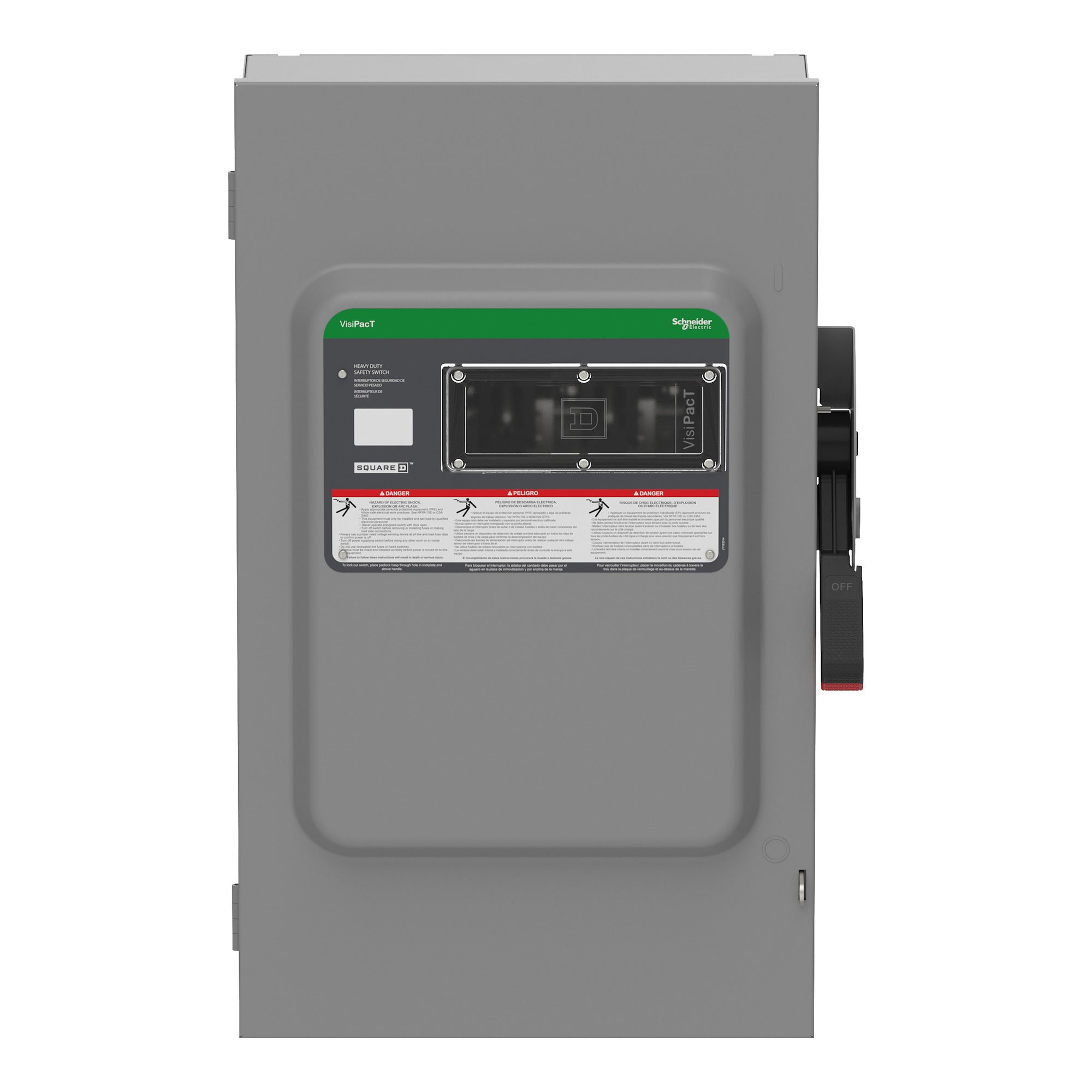

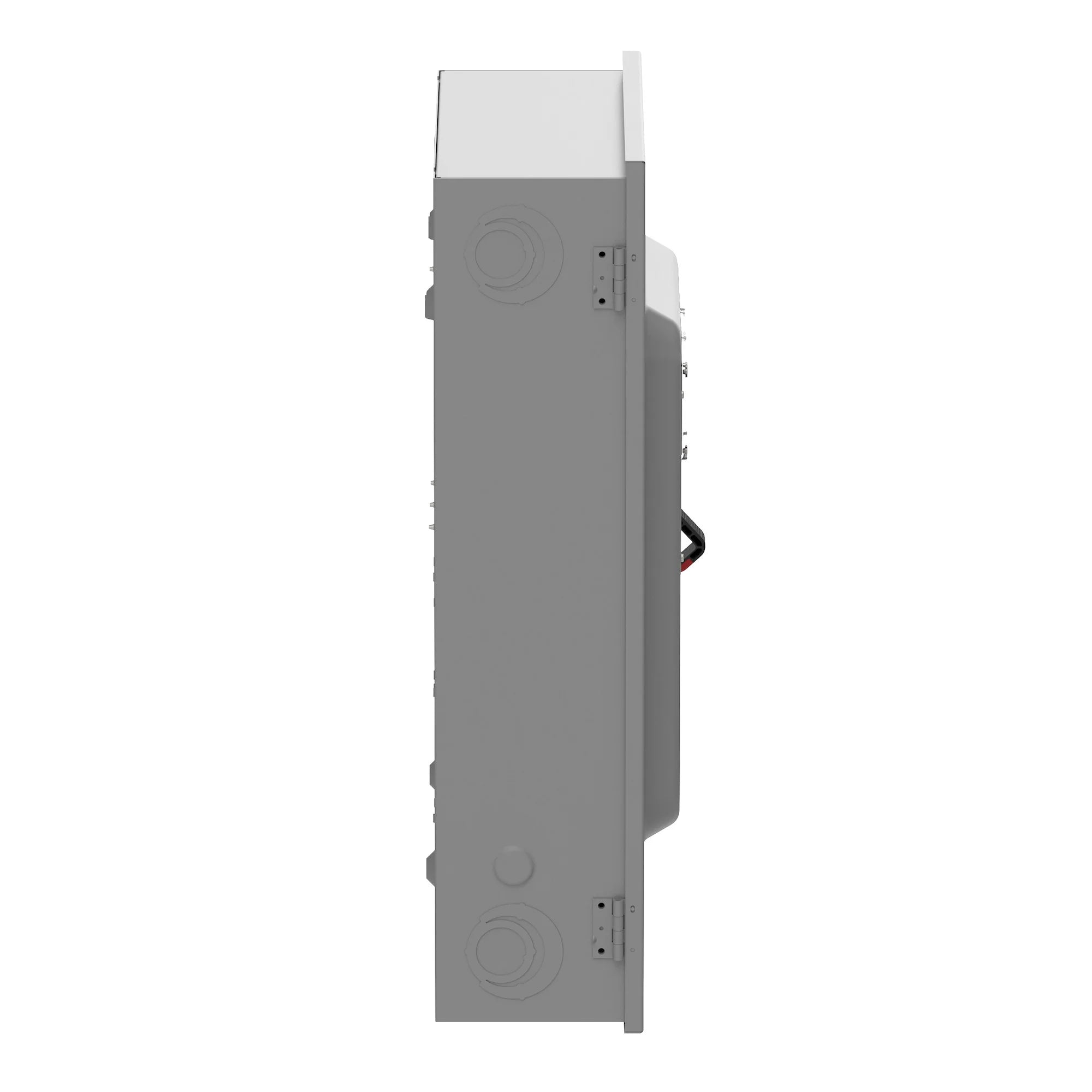

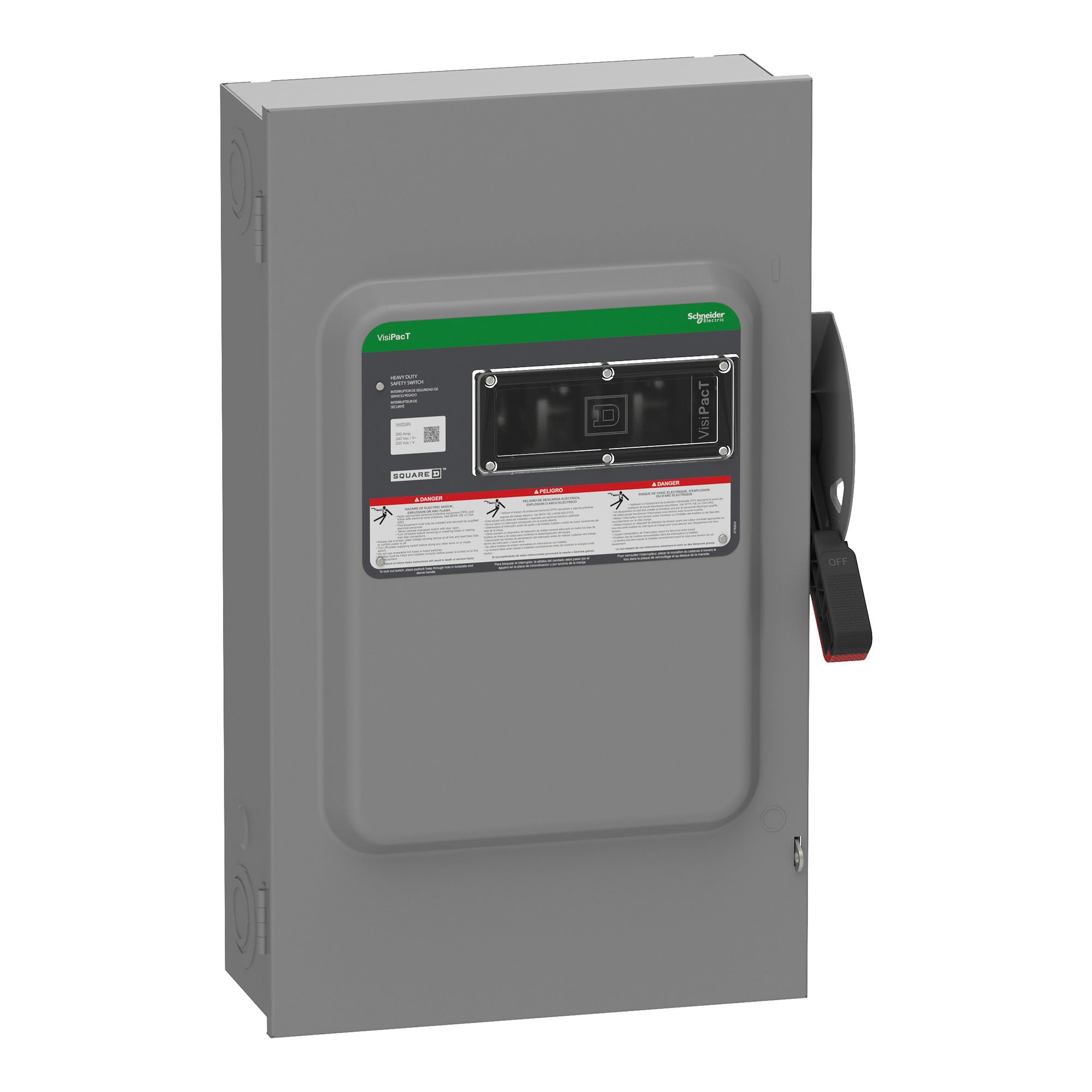

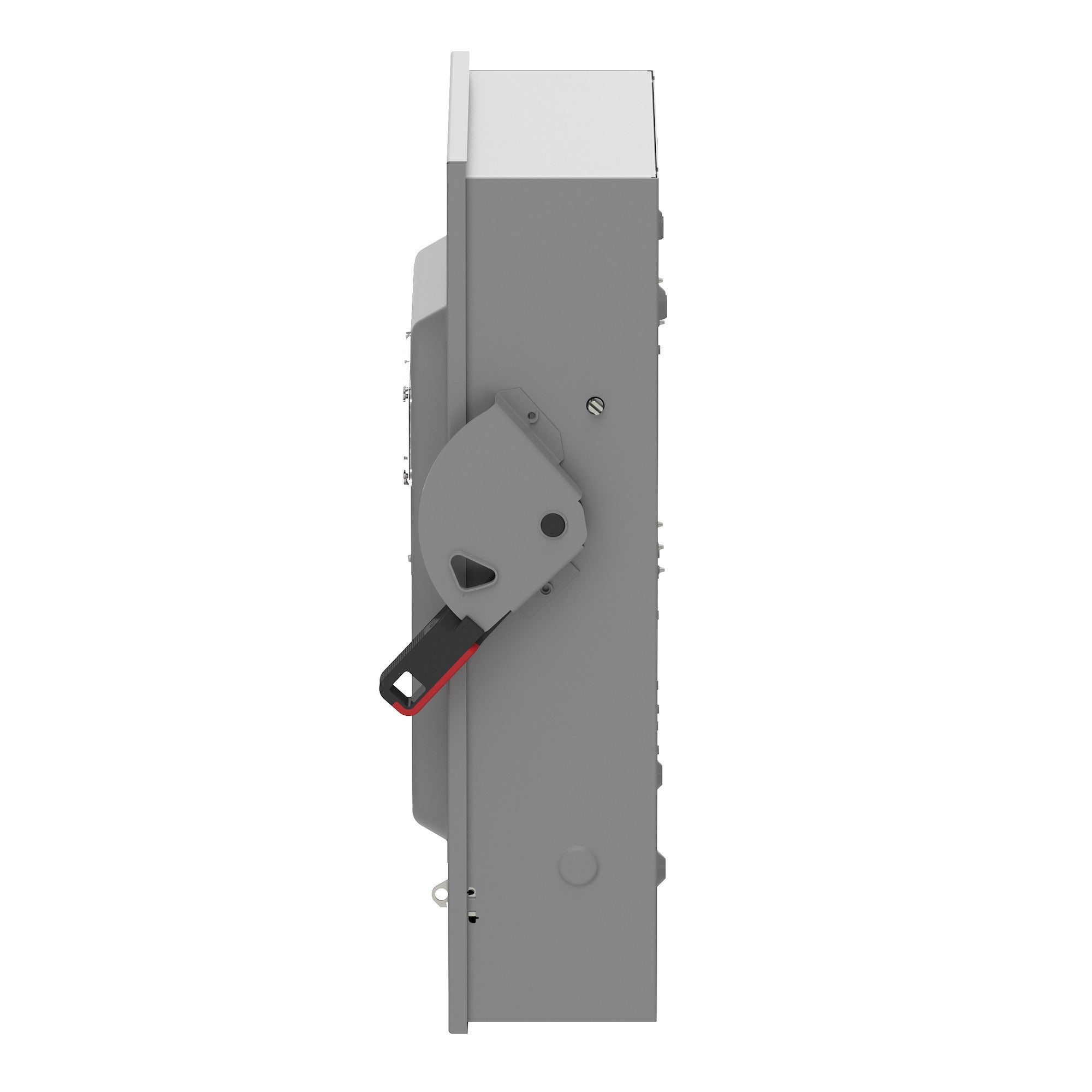

Square D VHU364 Safety Switch Heavy Duty 600V 200A 3 Pole

Product Description

Square D VHU364 is a heavy-duty safety switch designed for commercial and industrial use. The unit is capable of handling 200 amps at 600 volts AC and DC. It has an innovative construction that exceeds standard durability requirements. The switch includes a quick-make, quick-break mechanism and features a dual cover interlock for enhanced safety. The viewing window allows for easy status checks without the need for opening the enclosure.

• Designed for 600 VAC and VDC applications
• Three-pole configuration
• Surface mounted with a Type 1 rated steel enclosure

Product Highlights

The safety switch is built to withstand harsh environments, ensuring reliable operation. Suitable for various applications, this switch meets UL98 and NEMA KS1 standards for safety.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: VHU364
• Line Rated Current: 200 A
• Voltage Rating: 600 VAC / 600 VDC
• Number of Poles: 3 Pole
• Enclosure Rating: Type 1
• Mounting Type: Surface
• Net Weight: 23.59 kg
• Depth: 8.6 inches
• Width: 16.61 inches
• Height: 28.93 inches
• RoHS Compliance: Yes
