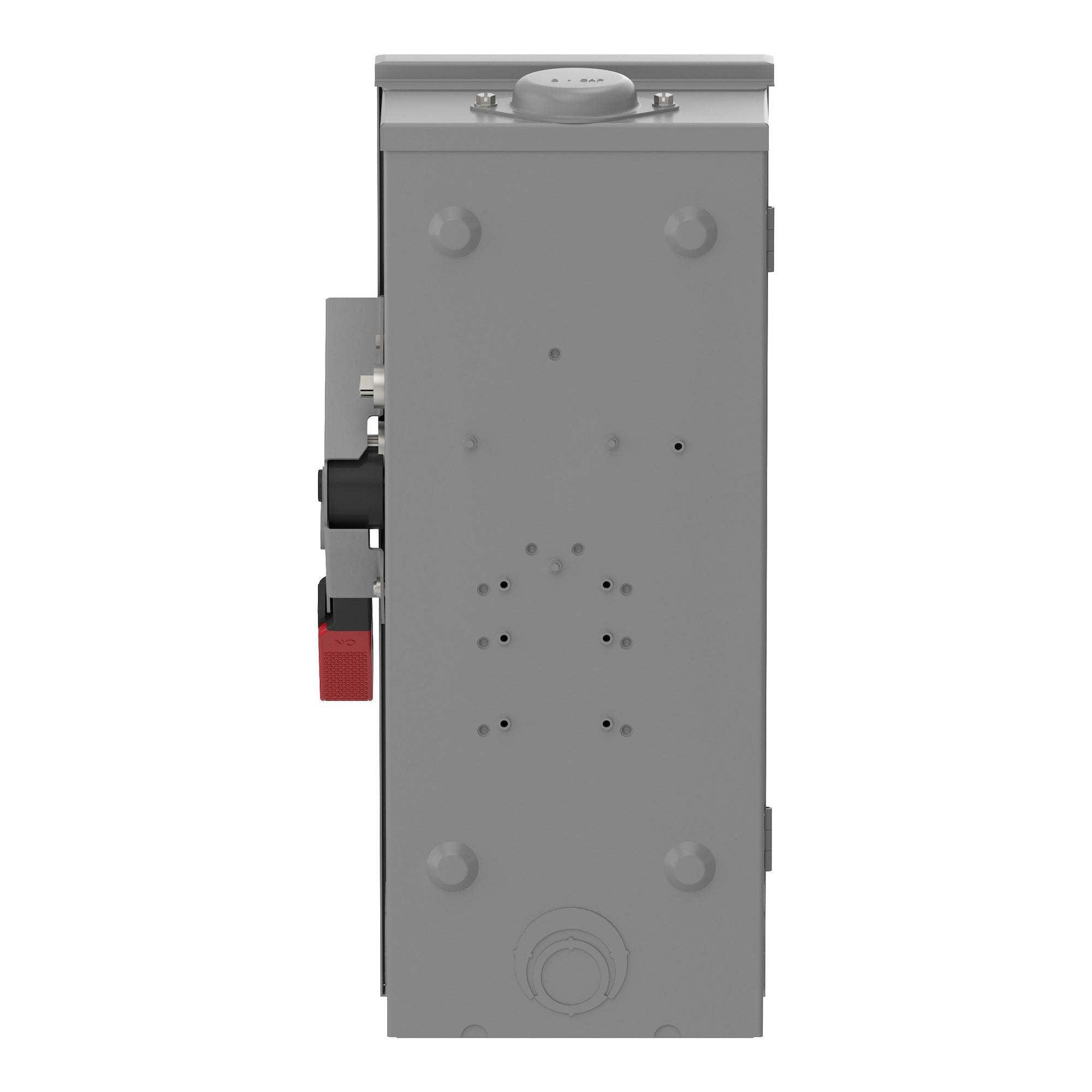

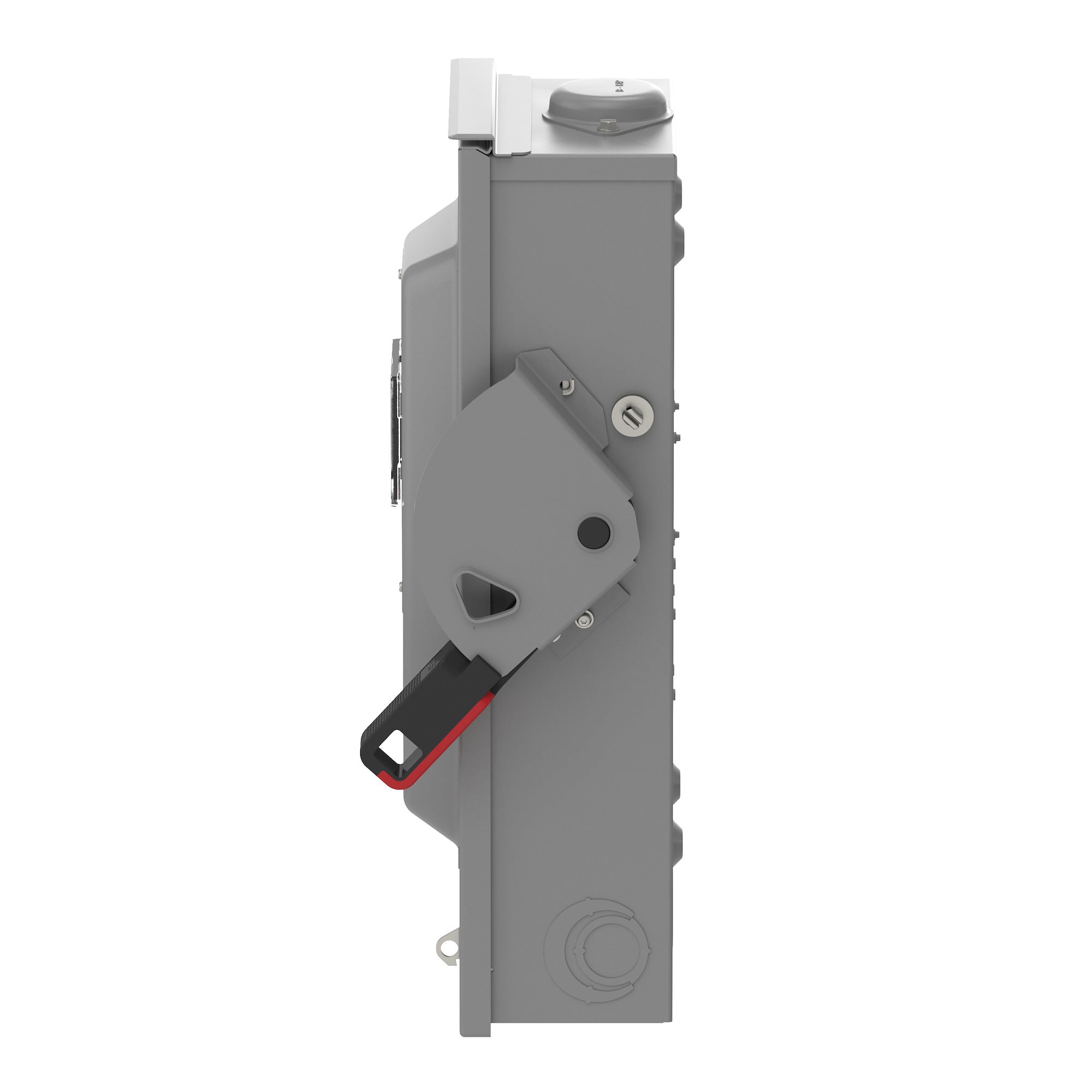

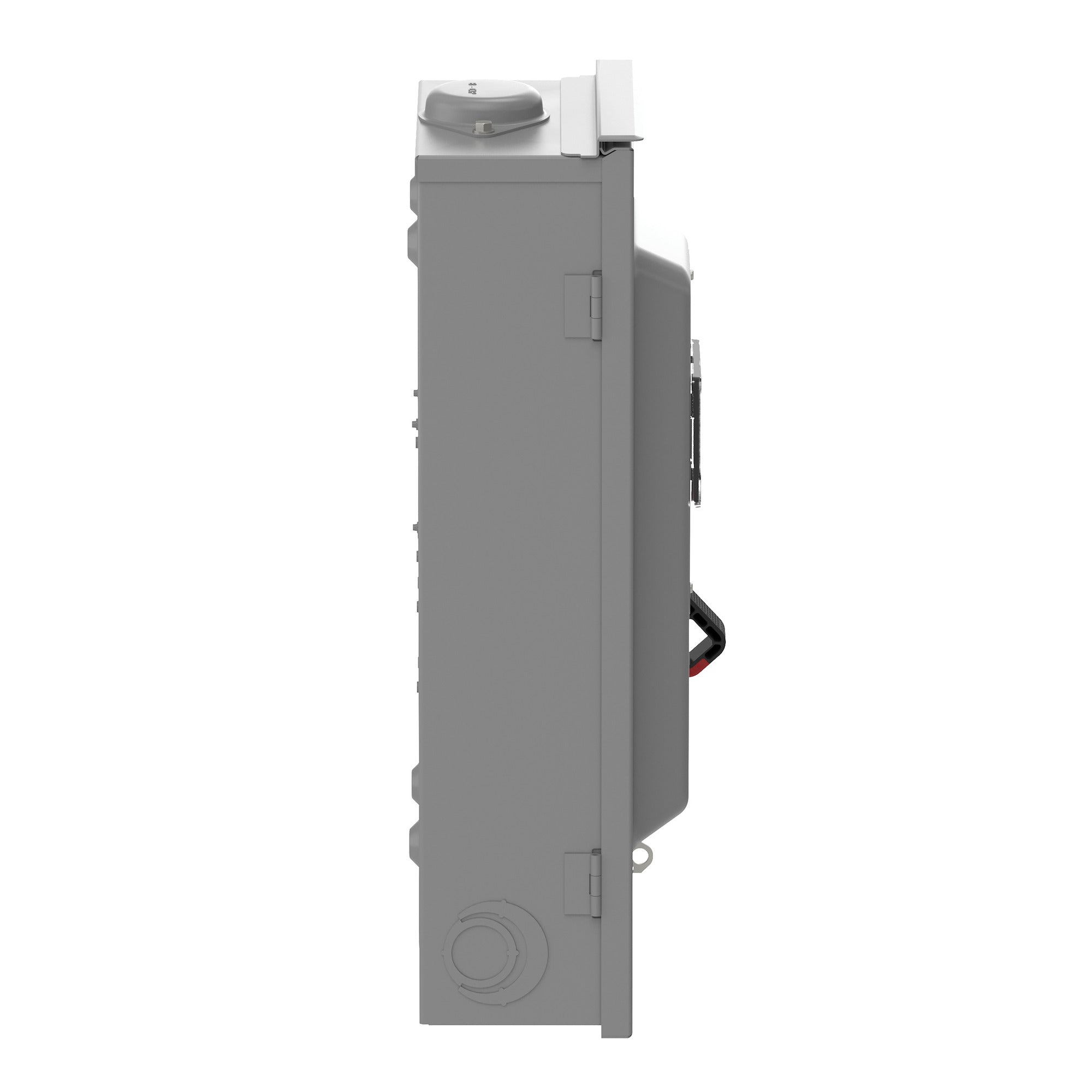

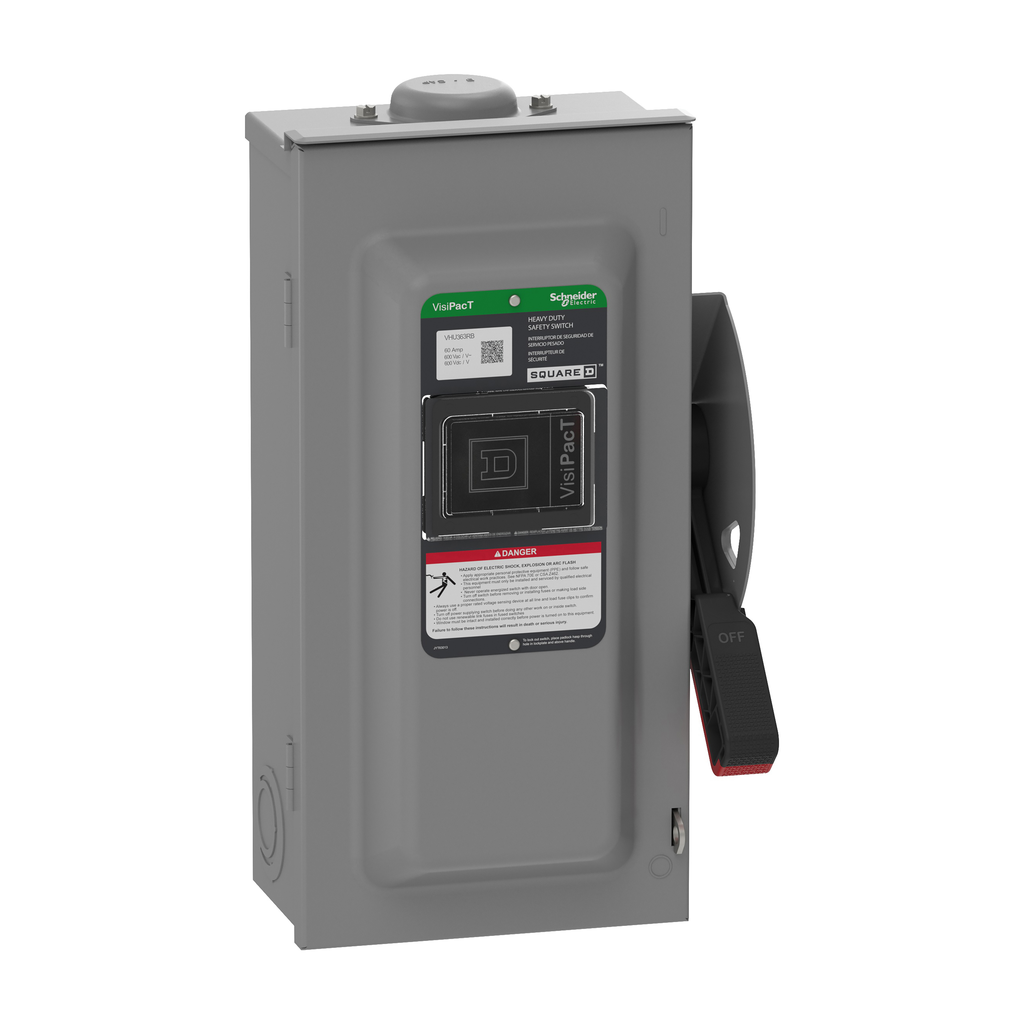

Square D VHU363RB Safety Switch Heavy Duty Unfused Viewing Window NEMA 3R 600V 100A 3 Pole

Product Description

Square D VHU363RB is a heavy duty safety switch designed for tough environments. It is manufactured by Schneider Electric. This switch is unfused, featuring a viewing window and is rated for 100 Amperes at 600 Volts AC or DC. The VHU363RB is a three pole switch that meets NEMA 3R standards.

• Quick-make, quick-break operating mechanism
• Galvannealed steel enclosure
• Tested per UL98 and NEMA KS1 standards

Product Highlights

This safety switch provides durability exceeding standard switches by three times per NEMA ratings and is ideal for commercial and industrial applications.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: VHU363RB
• Catalog Number: VHU363RB
• Rated Current: 100 A
• Voltage Rating: 600 VAC / 600 VDC
• Number of Poles: 3
• Wire Range: AWG 12 to AWG 1/0 aluminum and AWG 14 to AWG 1/0 copper
• Depth: 7.019 inches
• Width: 9.08 inches
• Height: 22.13 inches
• Net Weight: 8.34 kg
• Mounting Type: Surface
• Certification: UL Listed, File E2875
