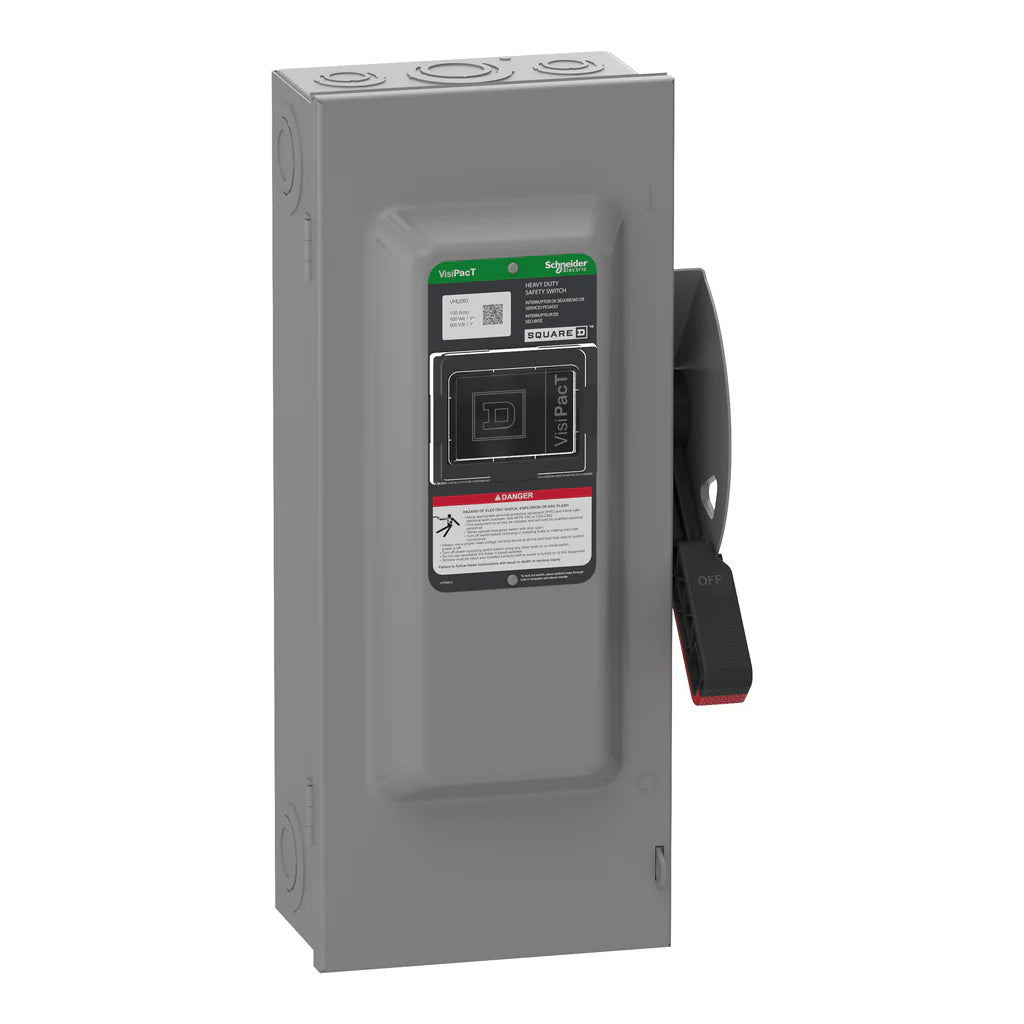

Square D VHU363 Safety Switch, Heavy Duty, Non-Fusible, Viewing Window, NEMA 1, 600V, 100A, 3 Pole

Product Description

The Square D VHU363 safety switch by Schneider Electric is a heavy-duty safety switch designed for tough environments. This non-fusible switch is rated for 100 amps and supports both 600 VDC and 600 VAC. Its construction exceeds standard NEMA ratings by a factor of three, ensuring durability for various commercial and industrial applications.

• Features a quick-make, quick-break mechanism.
• Equipped with a factory-installed viewing window for easy status checks.
• Surface mounted with a steel enclosure to withstand harsh conditions.

Product Highlights

The VHU363 safety switch features a three-pole configuration. It is ideal for installations where a solid neutral is required, but additional kits must be purchased separately to ground lugs. The wire range accommodates 12 to 1/0 AWG aluminum and 14 to 1/0 AWG copper wiring. All units undergo rigorous testing in compliance with UL98 and NEMA KS1 standards.

Product Information

Standard Information

• Catalog Number: VHU363
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage Rating: 600 VAC / 600 VDC
• Current Rating: 100 A
• Number of Poles: 3 Pole
• Enclosure Type: NEMA 1
• Weight: 8 kg
• Dimensions: 7.04 in (Depth) x 8.91 in (Width) x 21.84 in (Height)
• Certifications: UL Listed File E2875
• Country of Origin: United States
