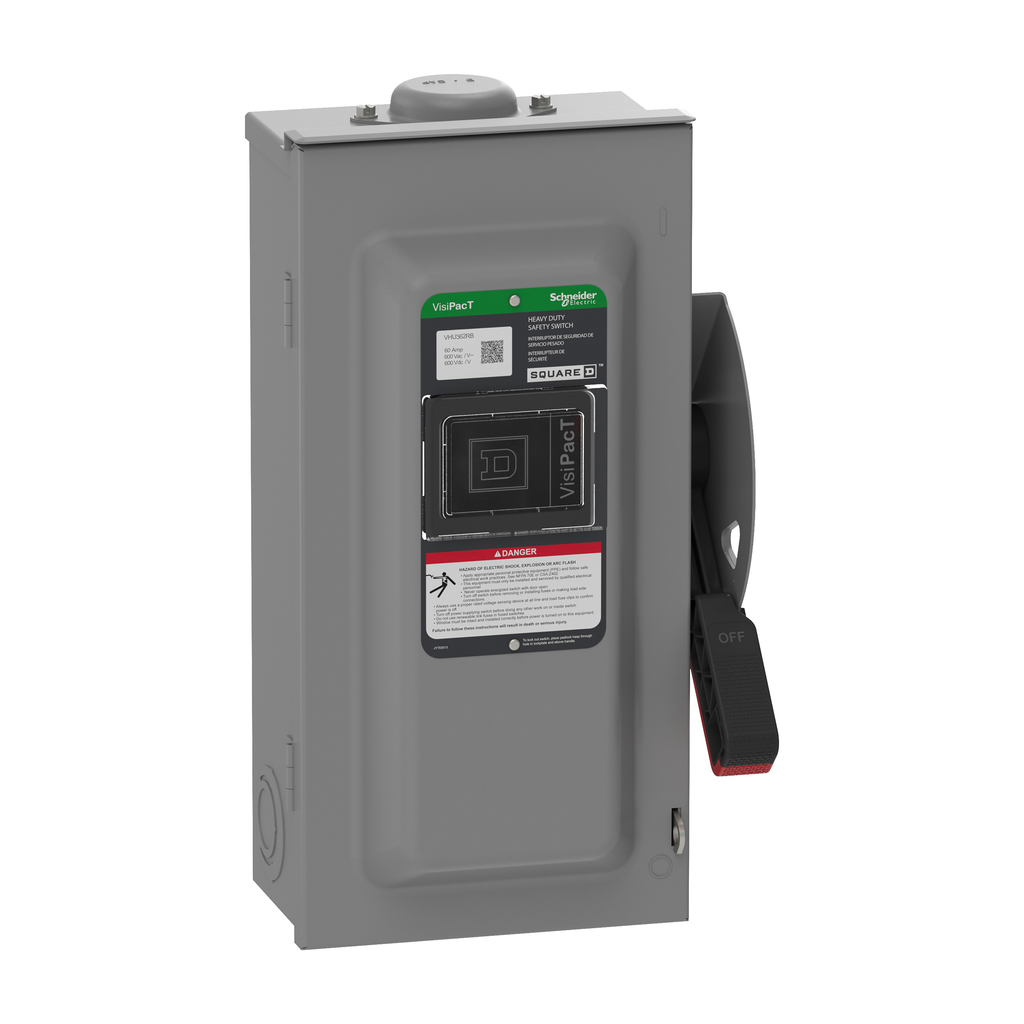

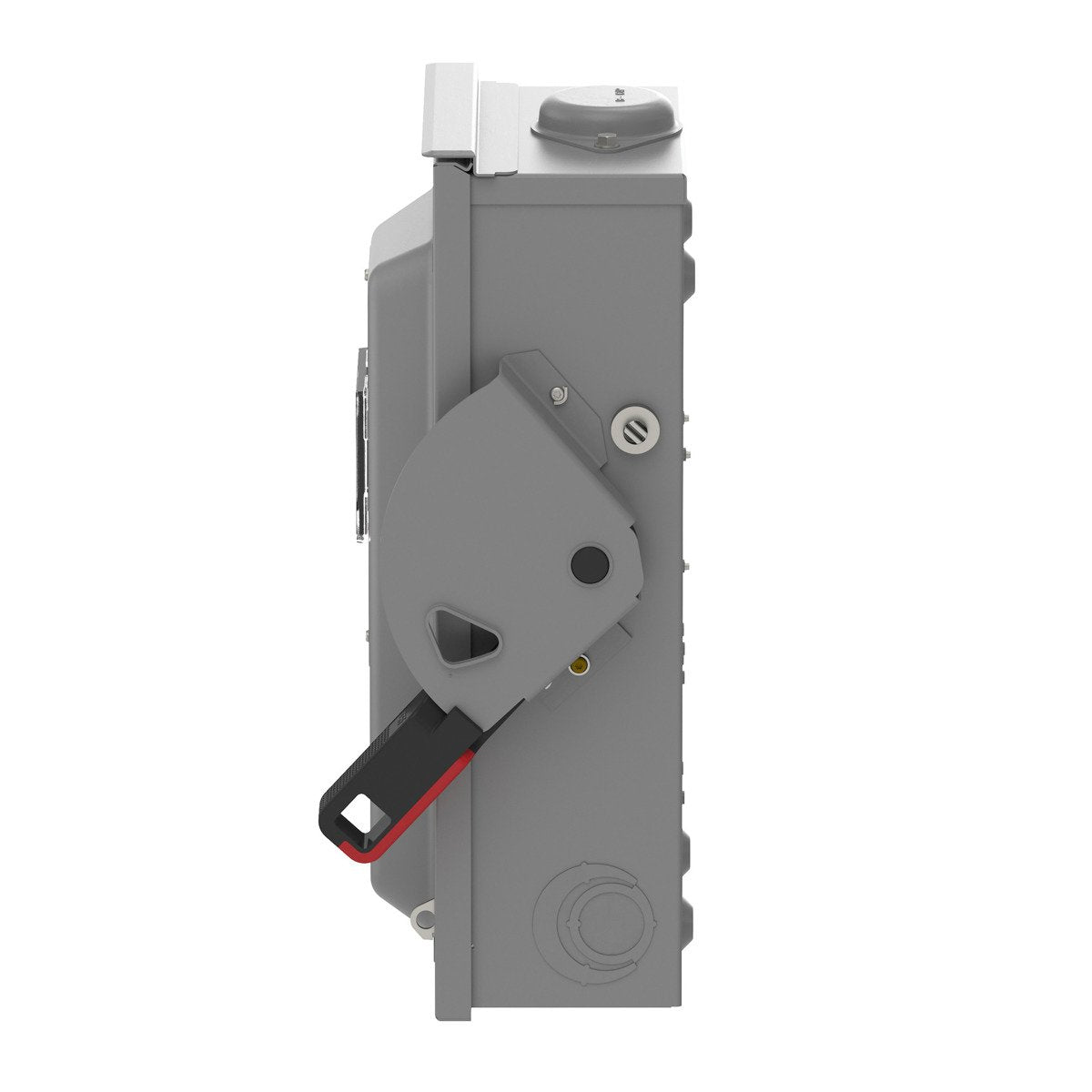

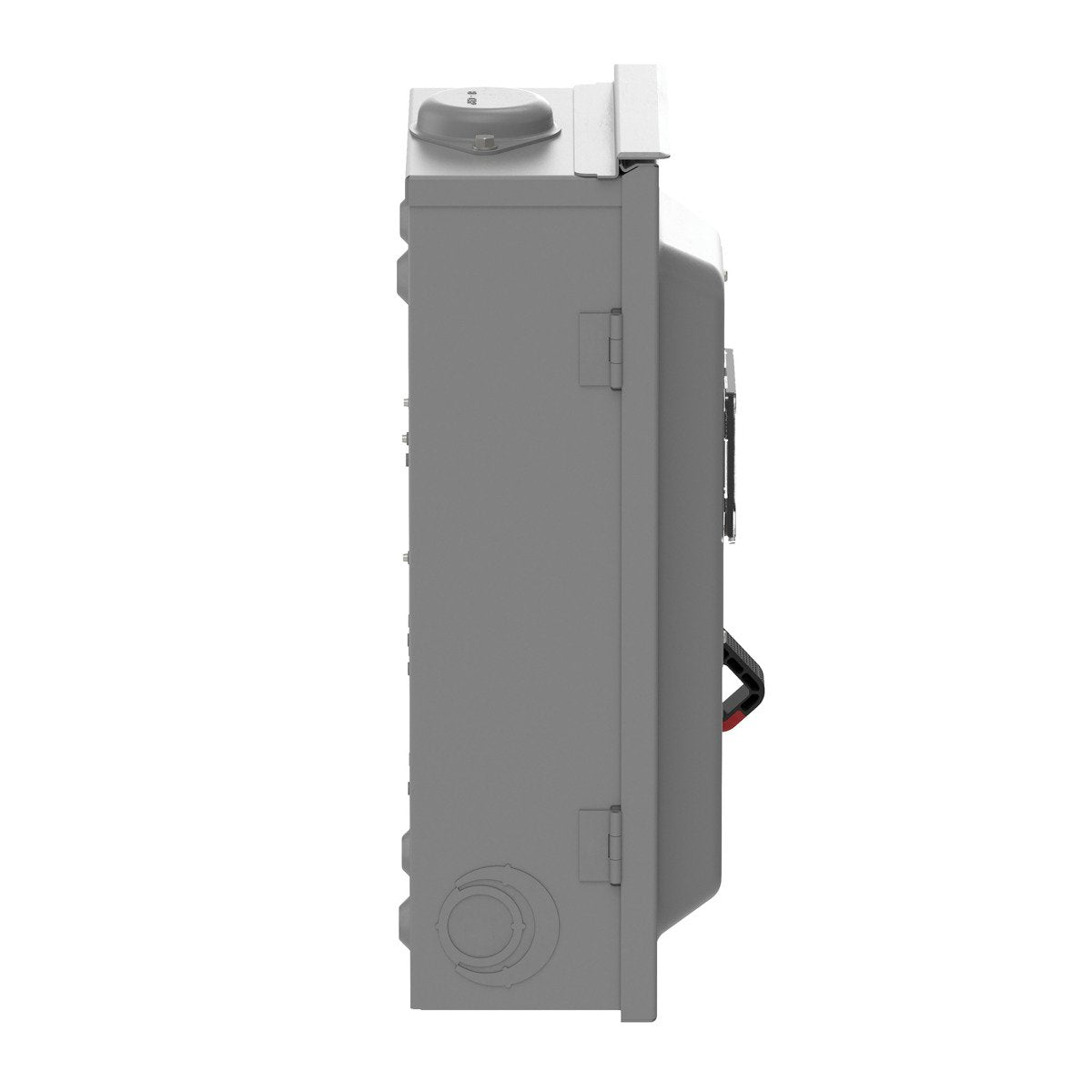

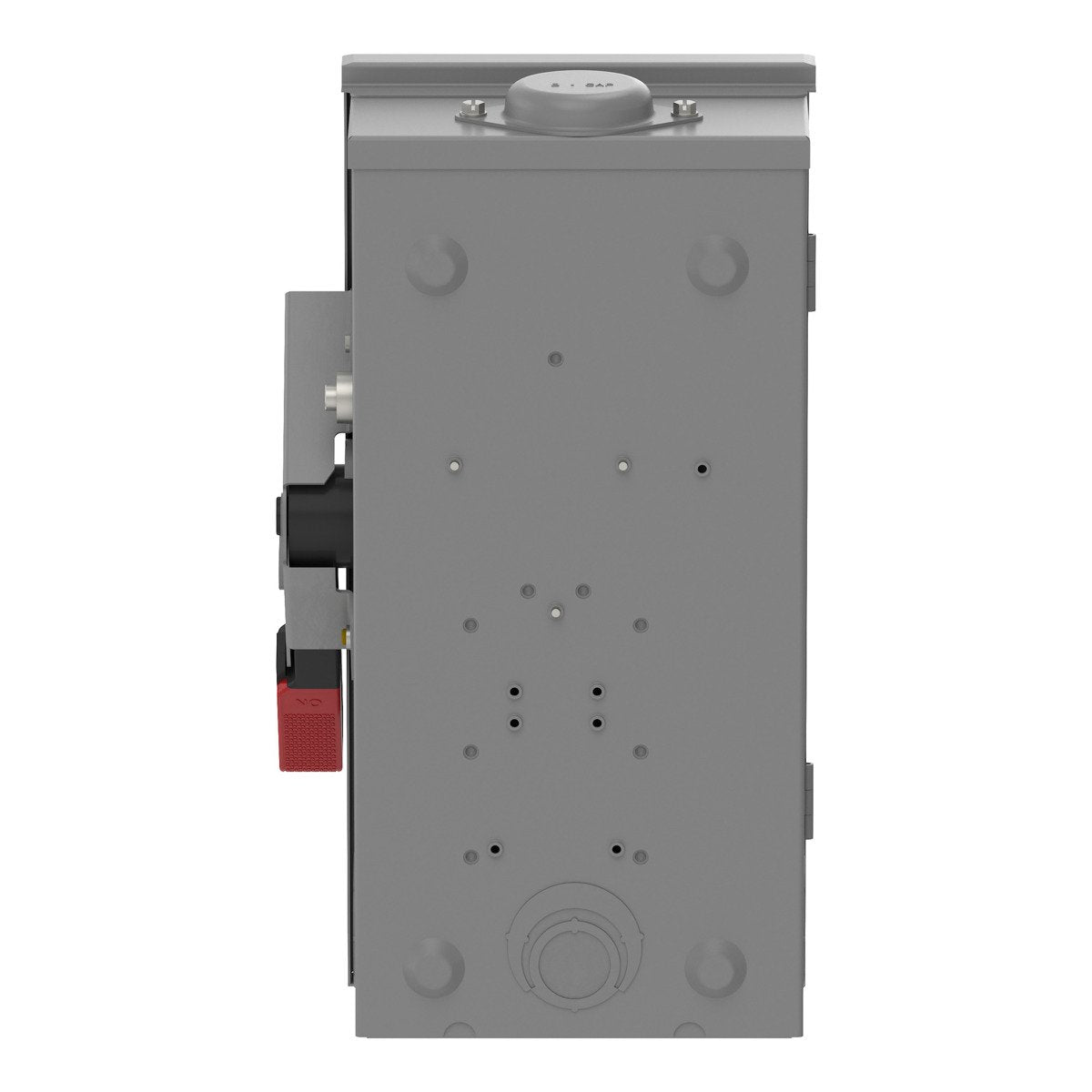

Square D VHU362RB Safety Switch 600V 60A 3 Pole

Product Description

The Square D VHU362RB is a safety switch from Schneider Electric, designed to provide reliable performance for electrical systems. This heavy-duty, non-fusible safety switch operates at a voltage of 600VAC and a current rating of sixty amperes. It features a viewing window for easy monitoring and a Type 3R rating, which makes it suitable for outdoor applications. The switch's robust design ensures it can handle tough, challenging environments making it ideal for commercial and industrial settings.

• Rated for 600V and 60A operation.
• Three-pole configuration with a viewing window.
• Surface mounted with a galvanized steel enclosure.

Product Highlights

This safety switch features a quick-make, quick-break mechanism, ensuring immediate disconnection of electrical circuits. It adheres to UL98 and NEMA KS1 standards for safety and reliability.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: VHU362RB
• Line Rated Current: 60 A
• Voltage Rating: 600 VAC/600 VDC
• Number of Poles: 3 Pole
• Enclosure Type: Galvannealed Steel
• Depth: 7.038 inches
• Width: 9.08 inches
• Height: 18.456 inches
• Net Weight: 7 kg
• GTIN: 03606485894669
• Certifications: UL Listed File E2875
