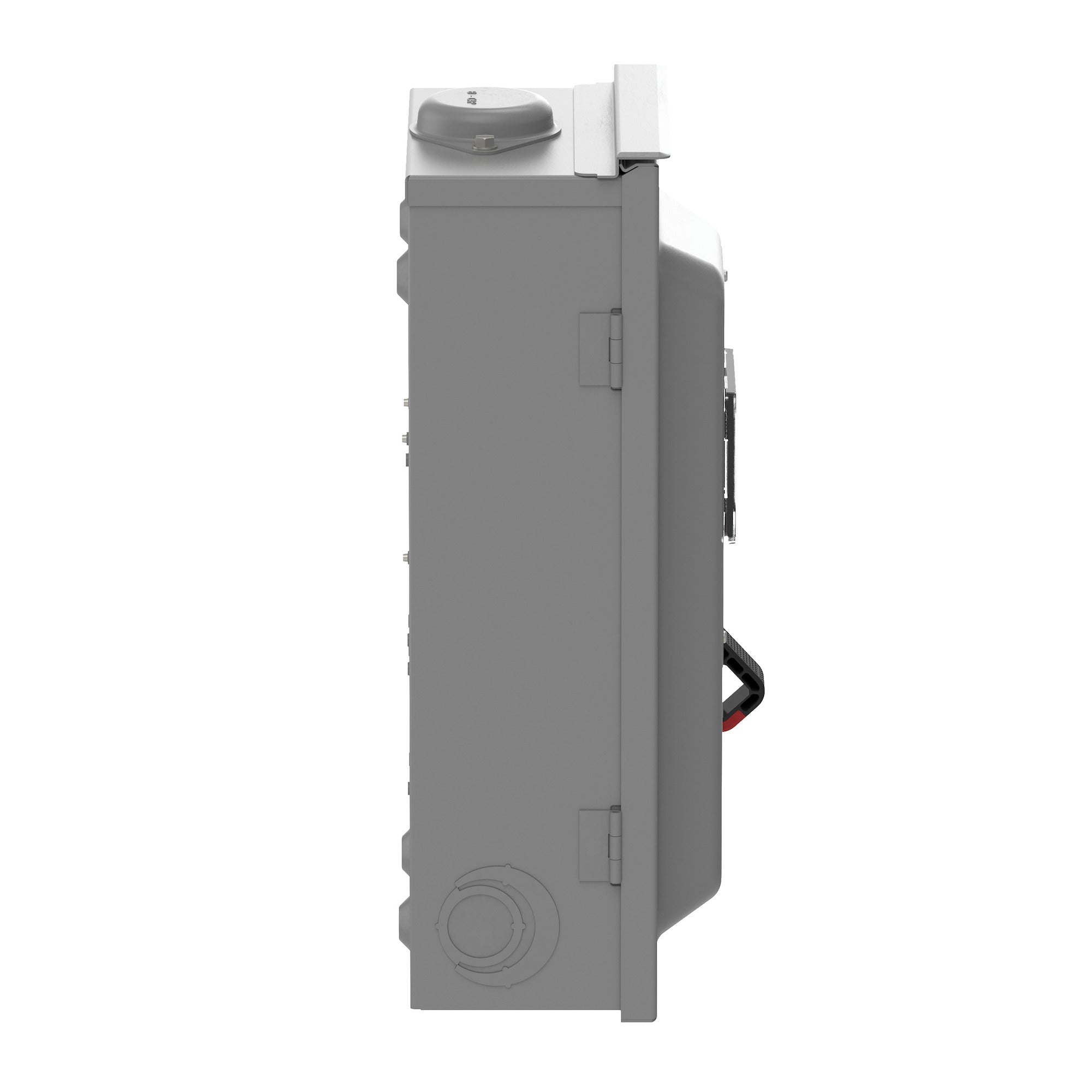

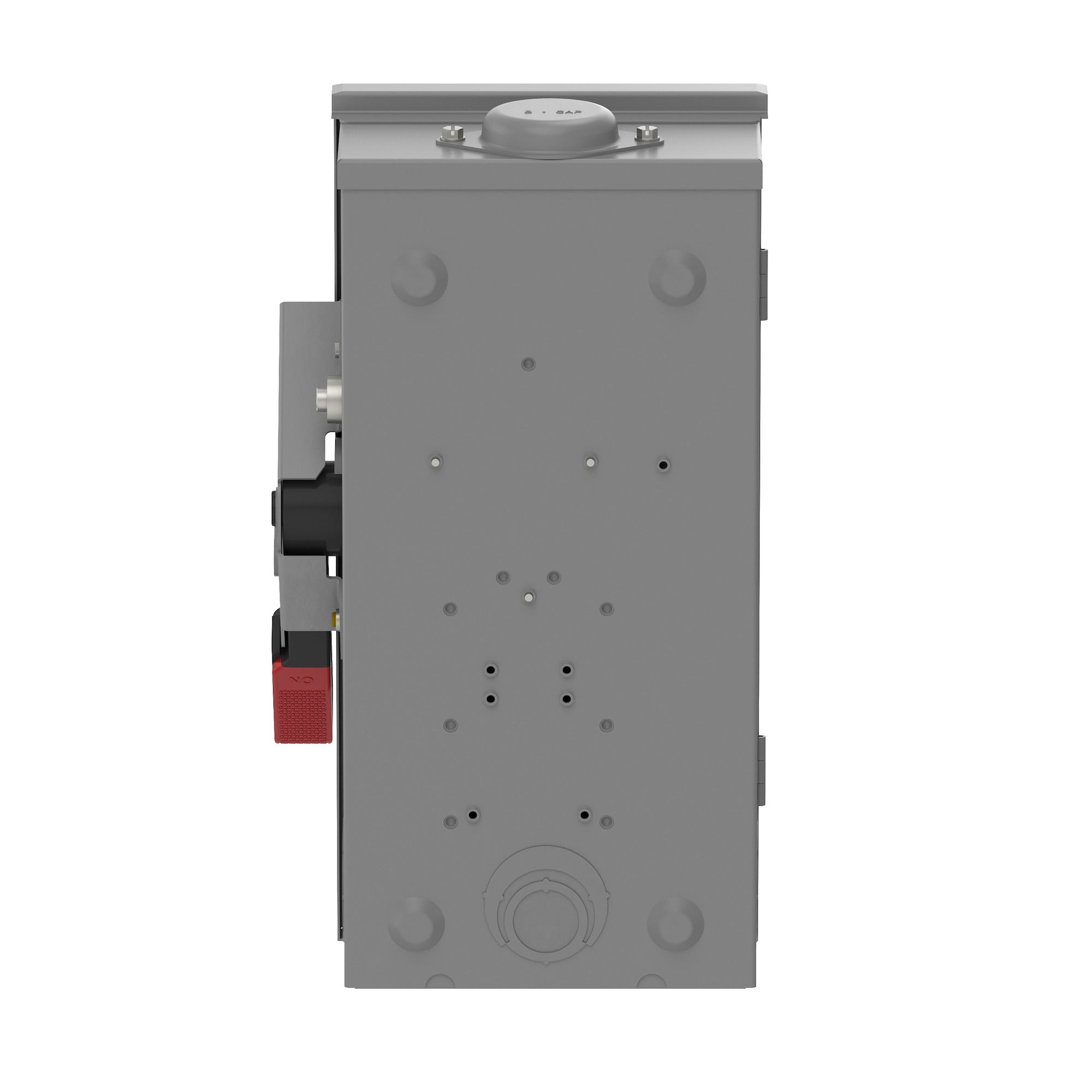

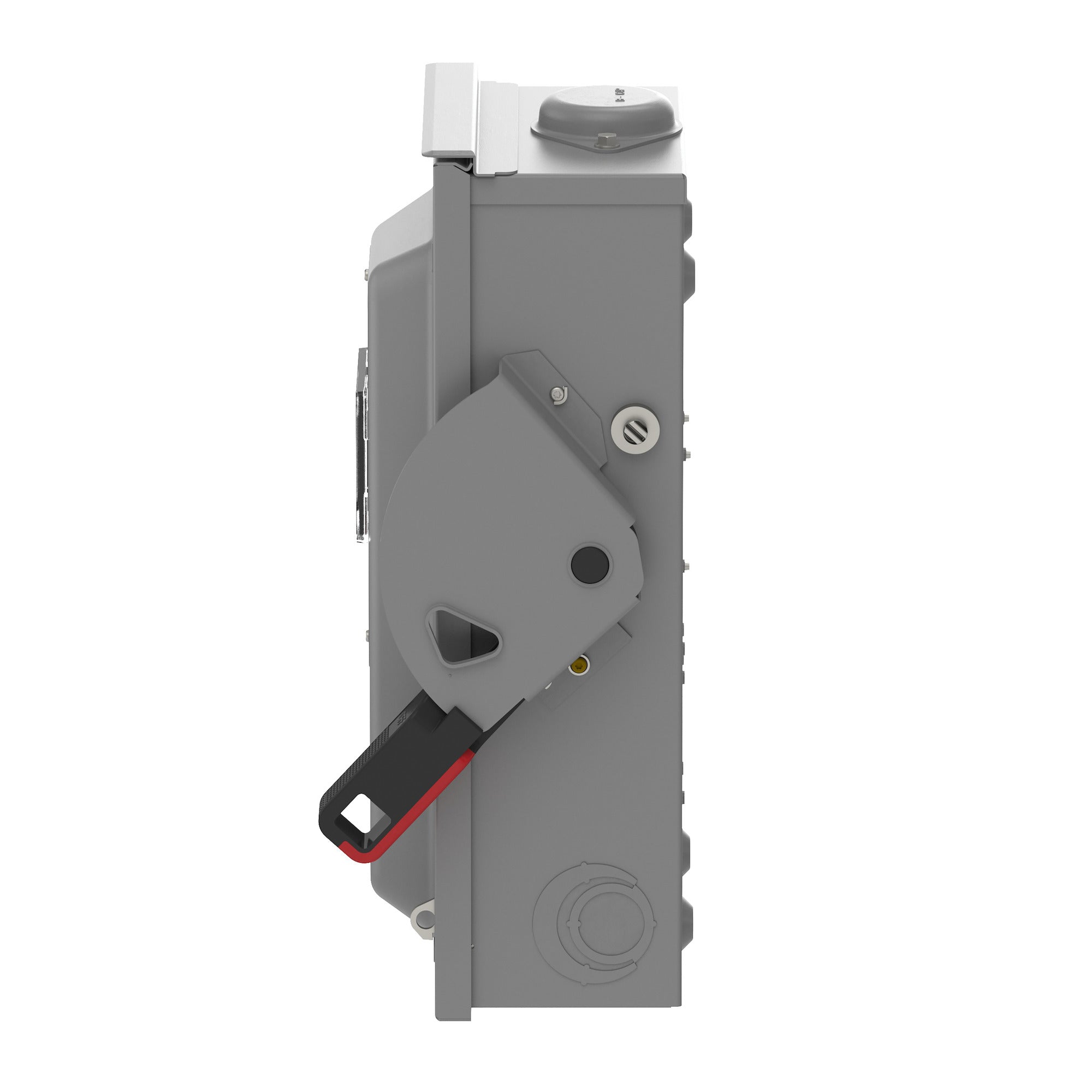

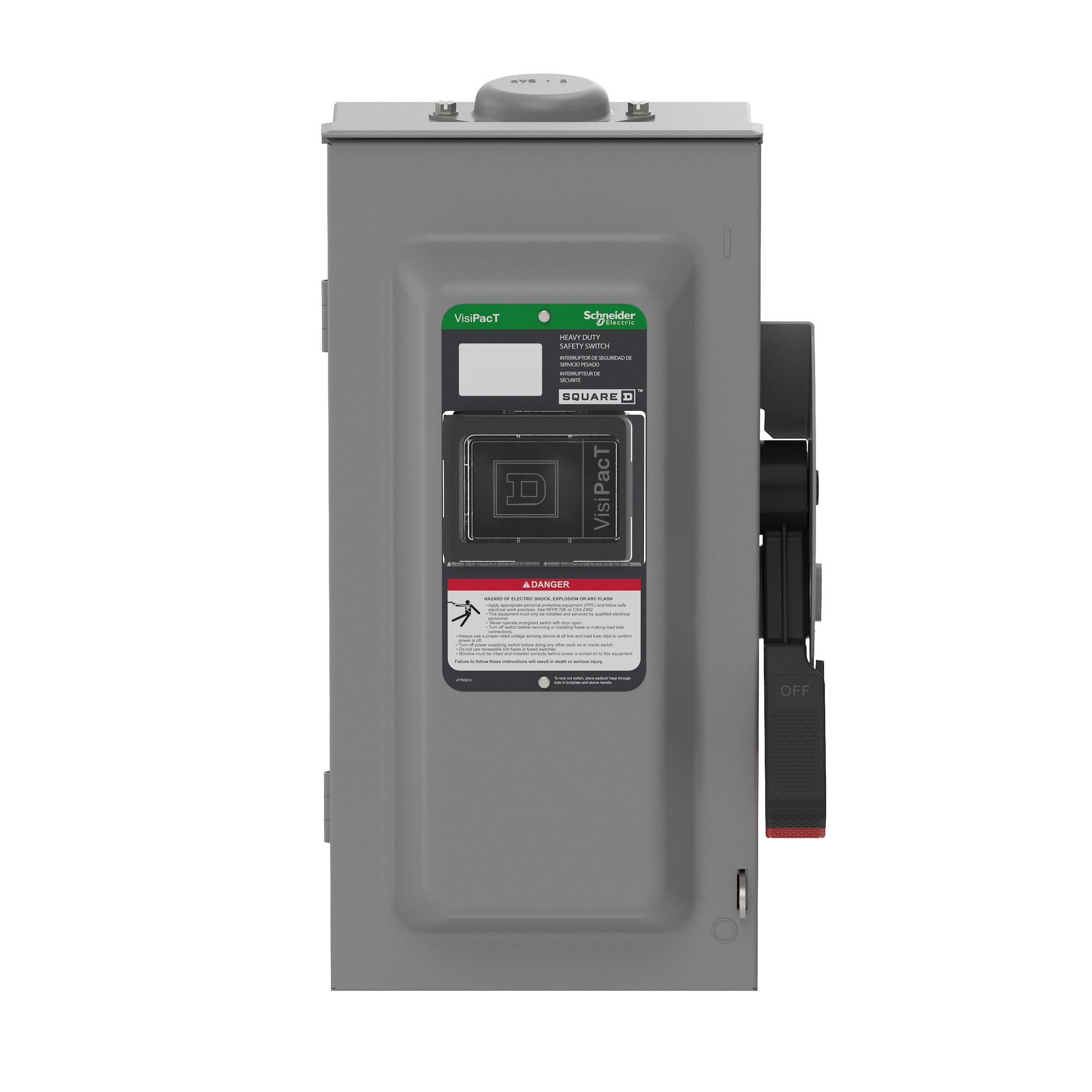

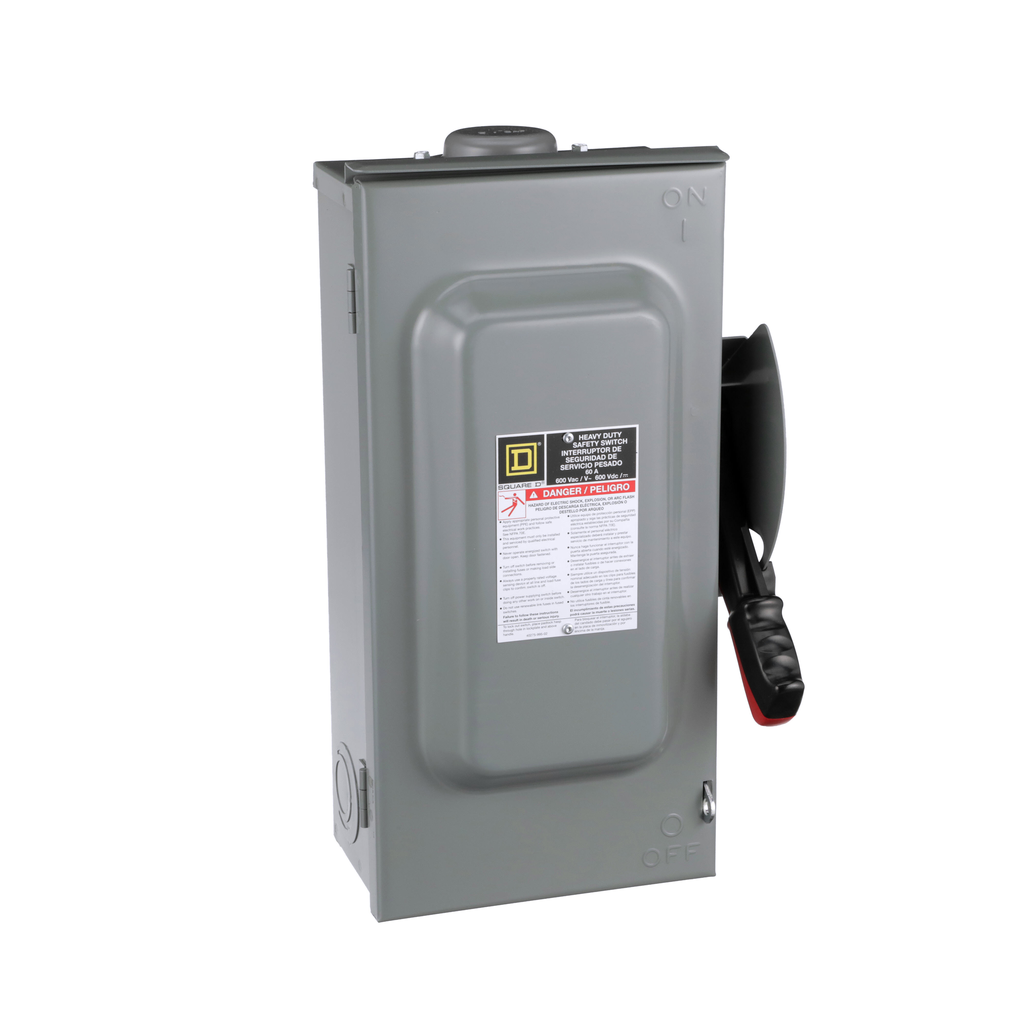

Square D VHU362NRB SQD HU362NRB SWITCH NO FUSE 600V 60

Product Description

Square D by Schneider Electric VHU362NRB is a heavy duty safety switch designed for industrial applications. It is made to withstand tough conditions while providing safe power distribution. This non-fusible switch can handle a maximum voltage of 600 volts and is rated for 60 amps.

• Rated for 60A at 600 VAC/VDC
• Surface mount with NEMA 3R enclosure
• Factory-installed neutral and viewing window

Product Highlights

The VHU362NRB model features a robust design, quick-make quick-break operation, and a durable galvannealed steel enclosure. It is suitable for various commercial and industrial electrical systems.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: VHU362NRB
• Voltage: 600 VAC/VDC
• Amperage: 60 A
• Enclosure: NEMA 3R Galvannealed Steel
• Wire Type: AWG 14 to AWG 3 Copper/AWG 12 to AWG 3 Aluminum
• Net Weight: 7 kg
• Number of Poles: 3 Pole
• Compliance: UL Listed File E2875
