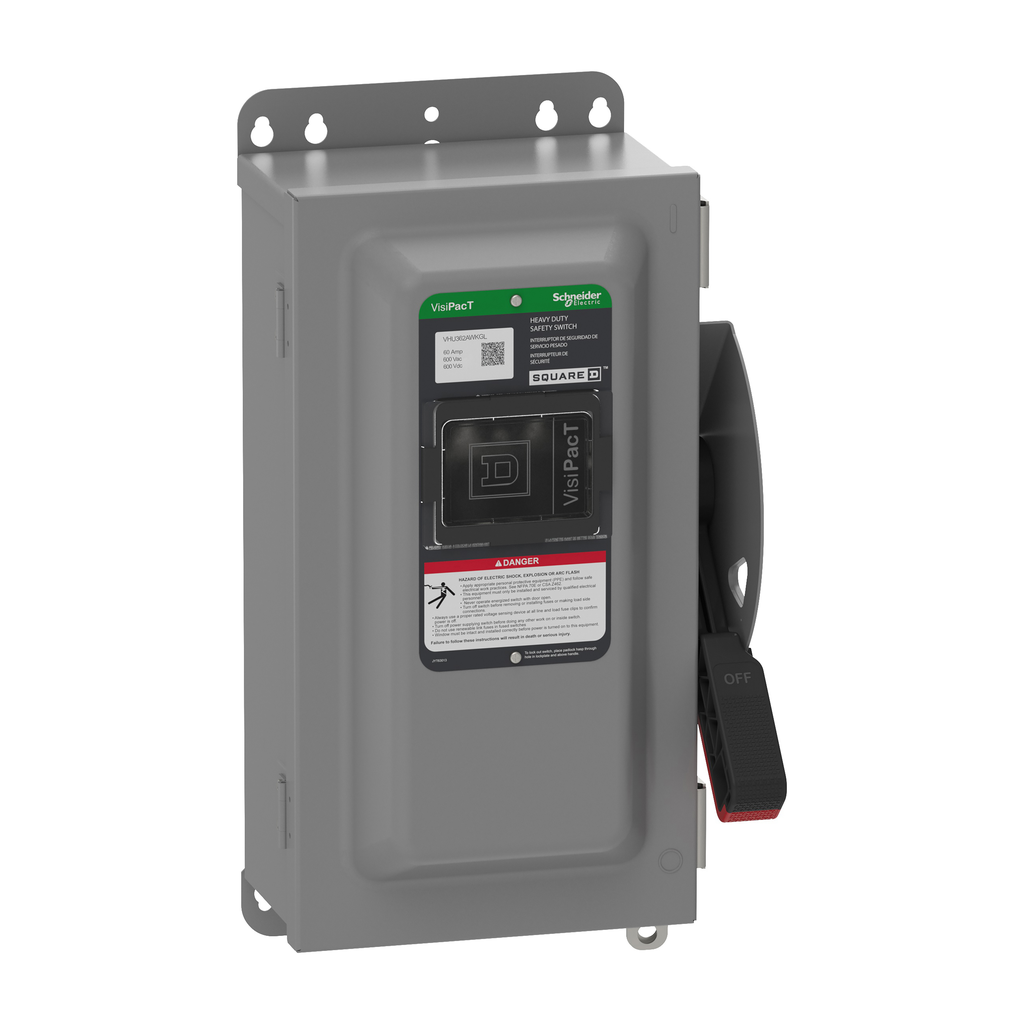

Square D VHU362AWKGL Safety Switch Heavy Duty 600V 60A 3 Pole Ground Lugs

Product Description

The Square D VHU362AWKGL safety switch by Schneider Electric is a heavy-duty, non-fusible disconnect switch that provides reliable performance in demanding environments. Built to exceed NEMA standards, this switch is ideal for commercial and industrial applications. It features a quick-make, quick-break operating mechanism ensuring safe operation.

• Rated for 600 volts AC and DC with a current capacity of 60 amps
• Constructed from galvannealed steel with a NEMA 12 enclosure for added durability
• Includes a factory-installed viewing window and ground lugs

Product Highlights

The VHU362AWKGL safety switch is designed for surface mounting and is equipped with a 3-pole configuration. It is suitable for applications requiring reliable disconnect protection.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: VHU362AWKGL
• Number of Poles: 3 Pole
• Line Rated Current: 60 A
• Height: 16.54 inches
• Width: 8.92 inches
• Depth: 7.164 inches
• Net Weight: 8 kg
• Mounting Type: Surface
• Certifications: UL Listed File E2875
