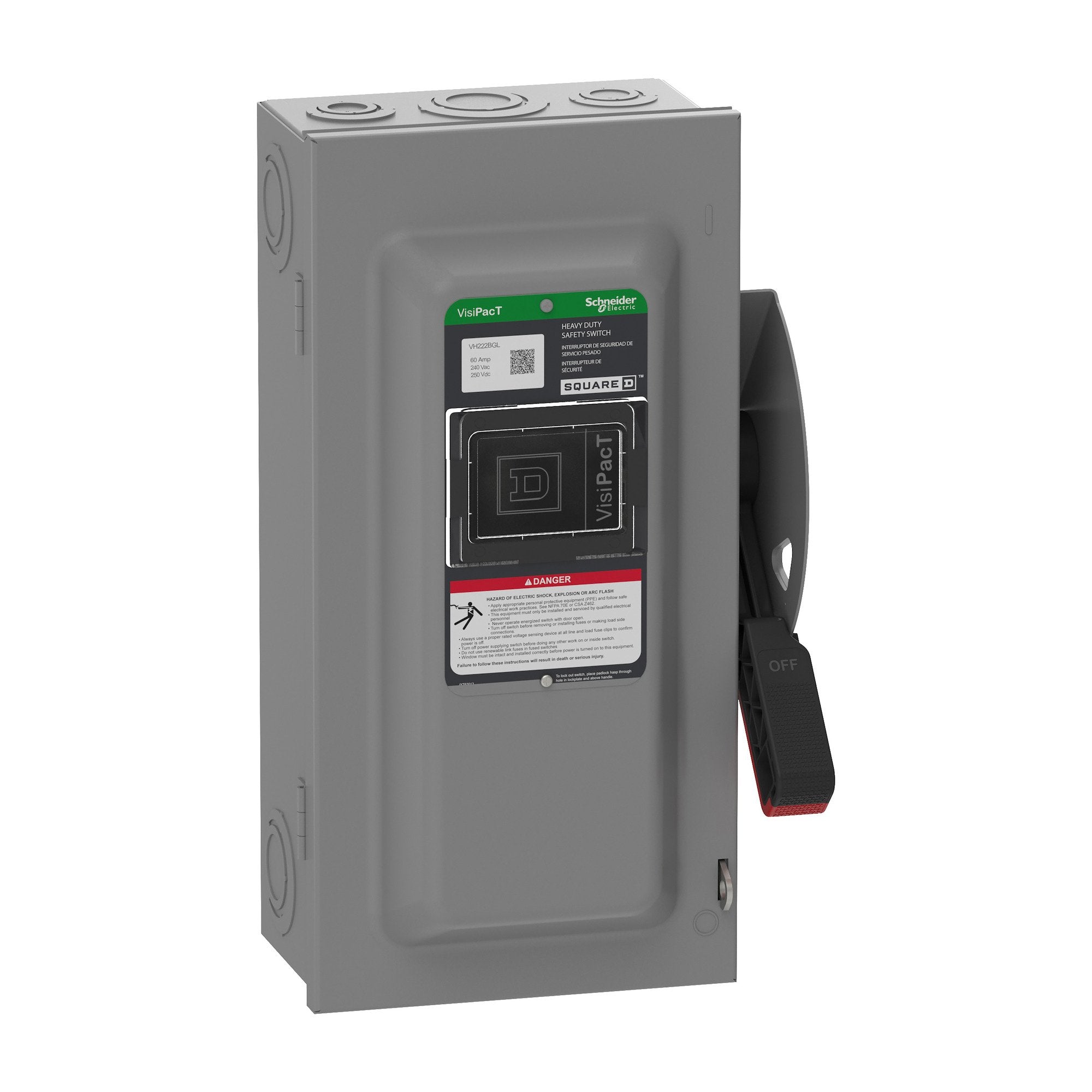

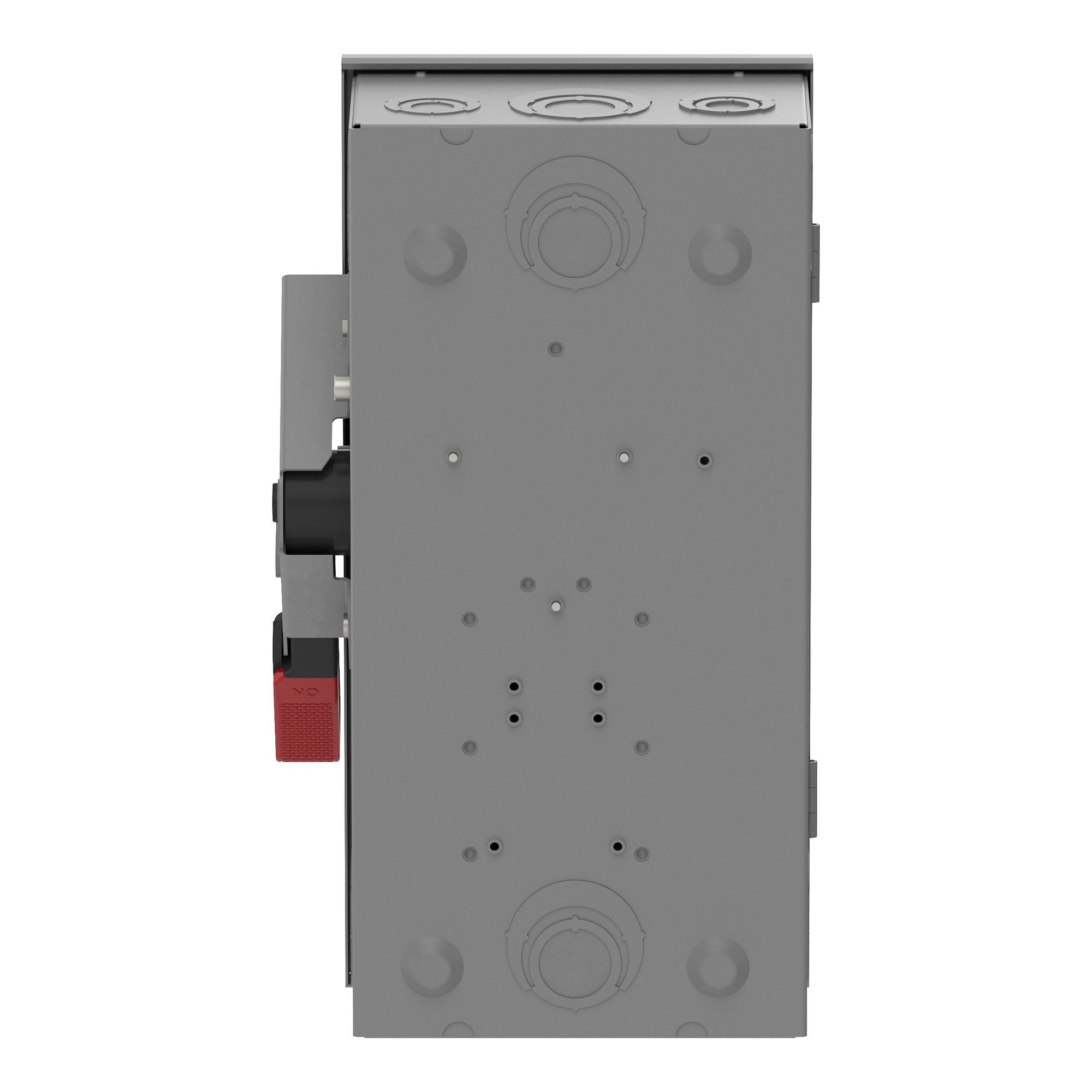

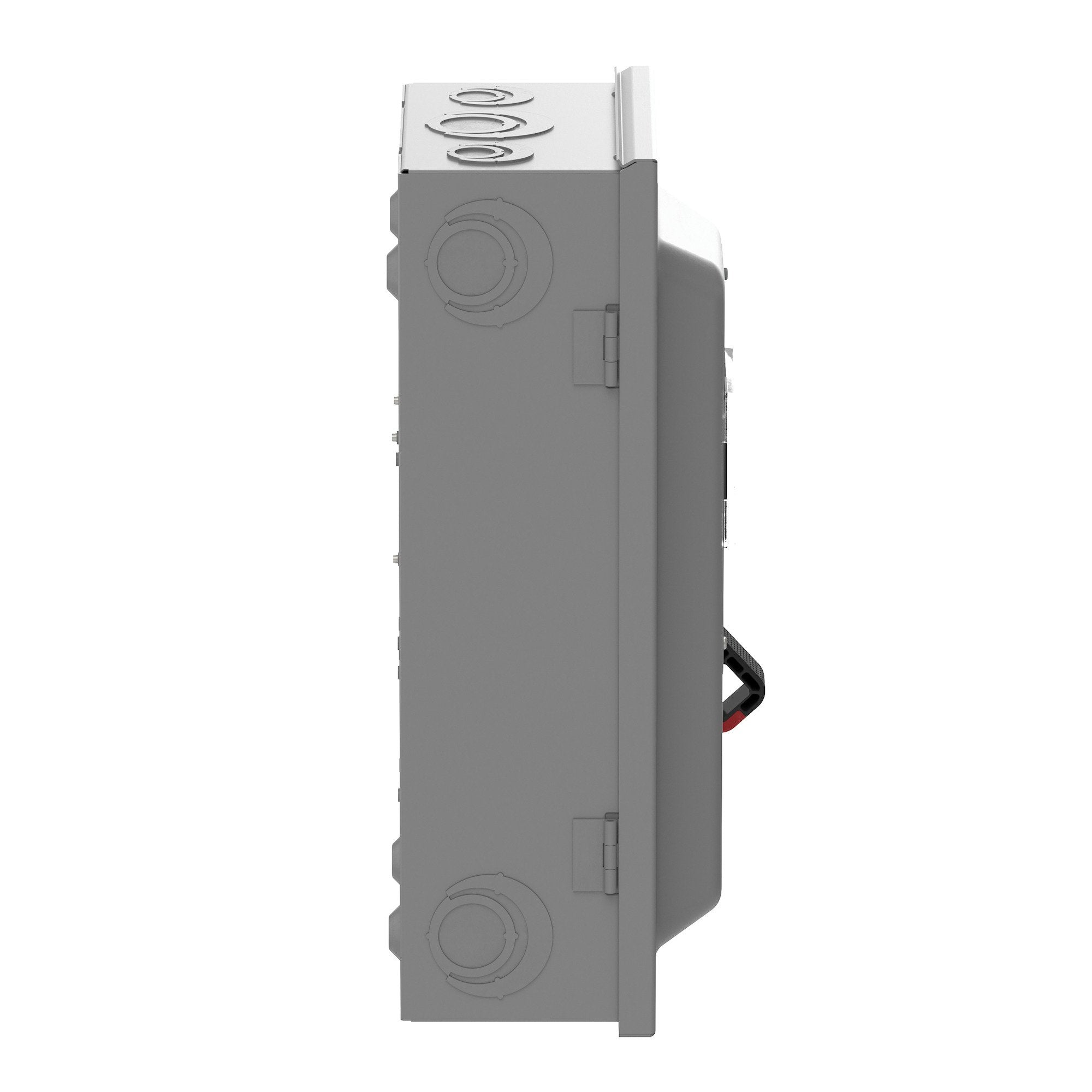

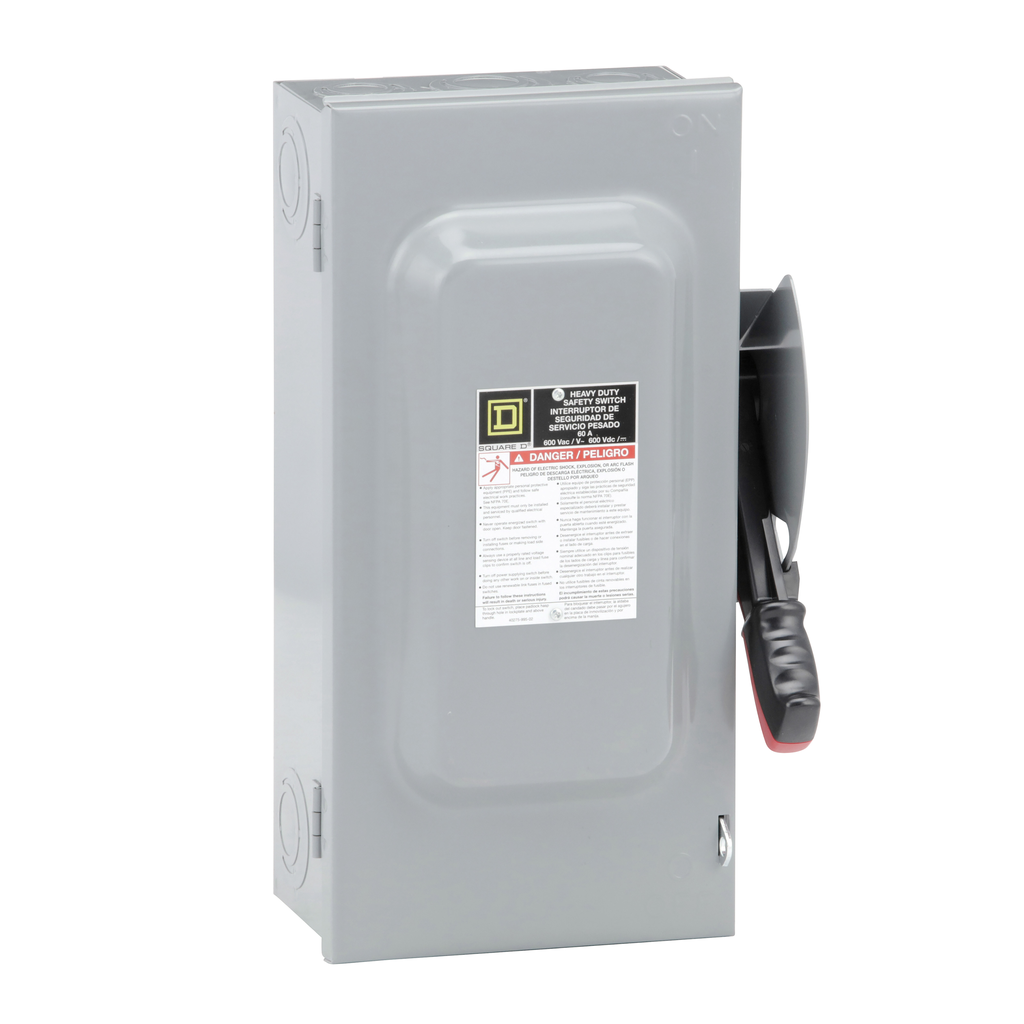

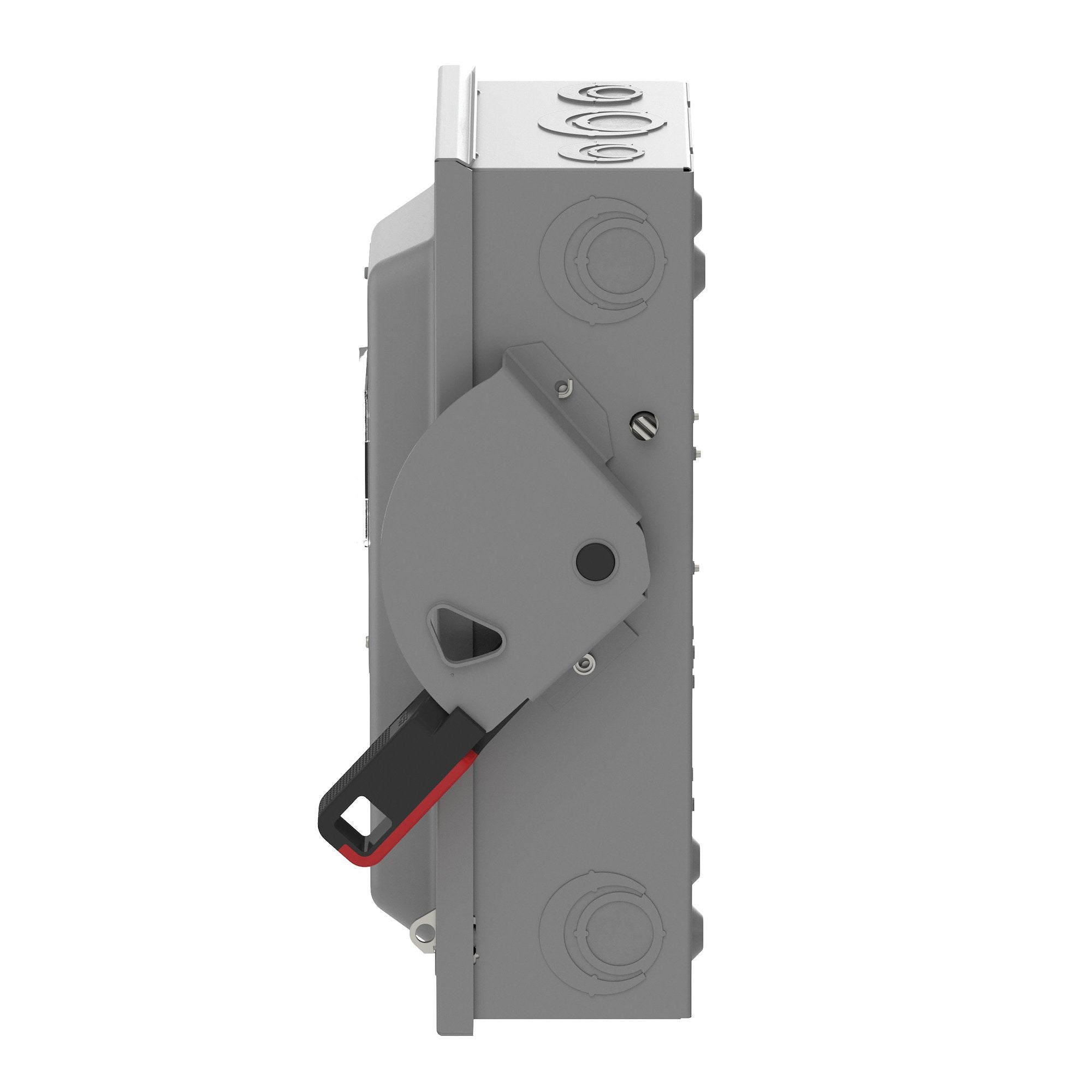

Square D VHU362 Safety Switch 600V 60A 3-Pole Unfused

Product Description

The Square D brand manufactured by Schneider Electric offers the VHU362, a heavy-duty safety switch designed to withstand tough conditions. It operates at a current of sixty amps and is suitable for both AC and DC voltage, rated up to six hundred volts. This robust safety switch features a viewing window for easy monitoring and is surface-mounted.

• Meets UL98 and NEMA KS1 standards
• Three-pole configuration with a short circuit rating of two hundred kiloamps
• Constructed from durable steel with a non-fusible disconnect design

Product Highlights

This safety switch is ideal for commercial and industrial applications, providing reliable performance and high durability compared to standard switches.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: VHU362
• Rated Current: 60 Amp
• Voltage Rating: 600 Volt
• Number of Poles: 3 Pole
• Enclosure Material: Steel
• NEMA Rating: 1
• Dimensions: 10.5 inches (width) x 21.25 inches (height) x 6.38 inches (depth)
• Weight: 15.43 lb
• Wire Type: AWG 14 to AWG 3 copper; AWG 12 to AWG 3 aluminium
