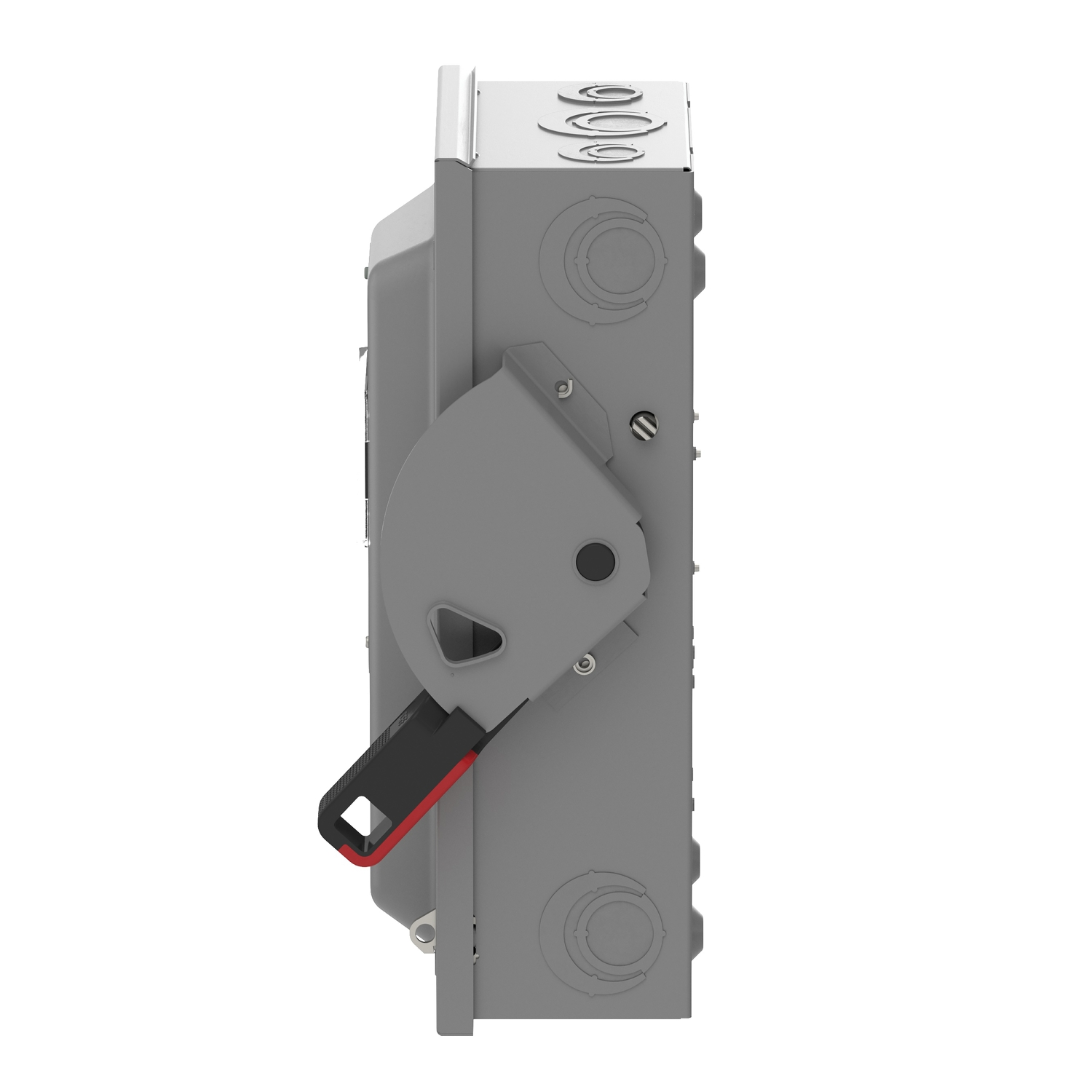

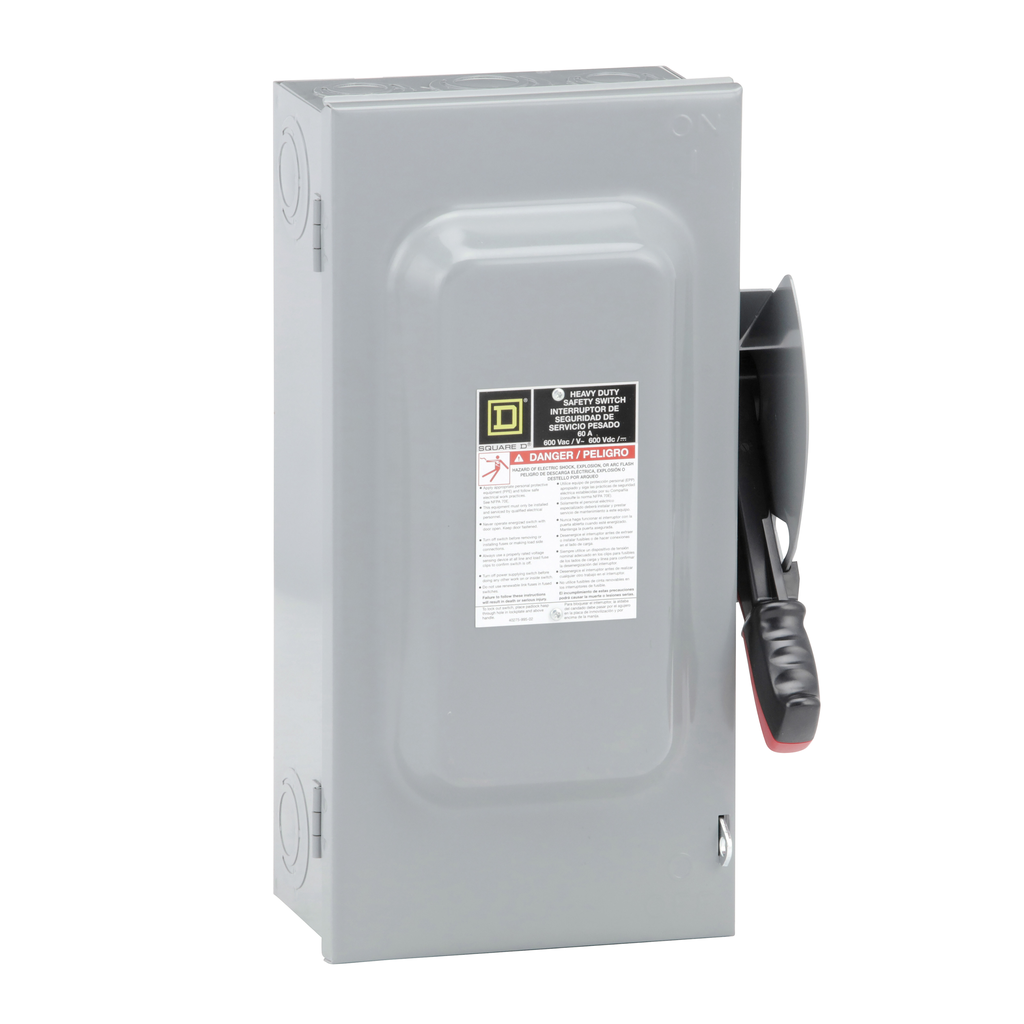

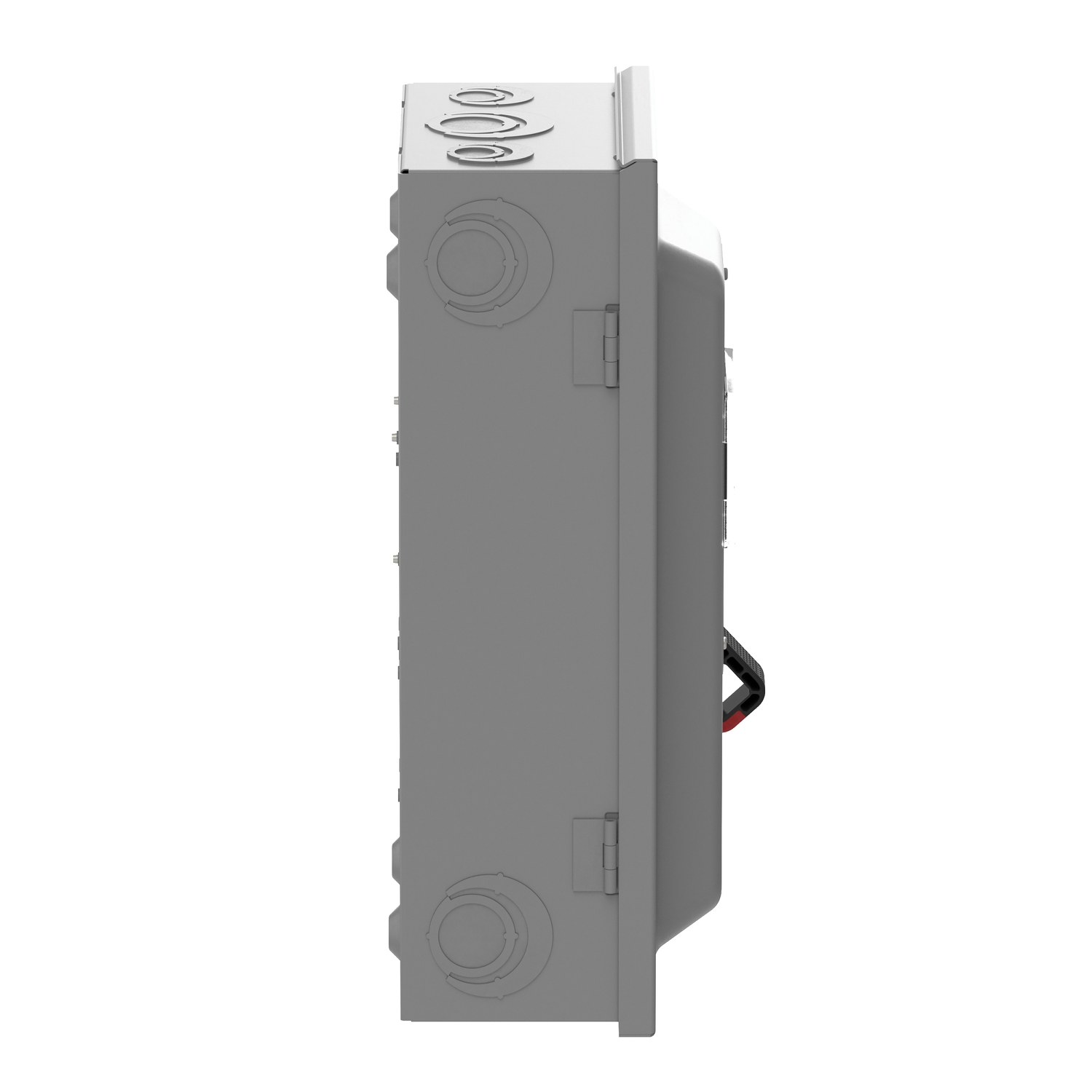

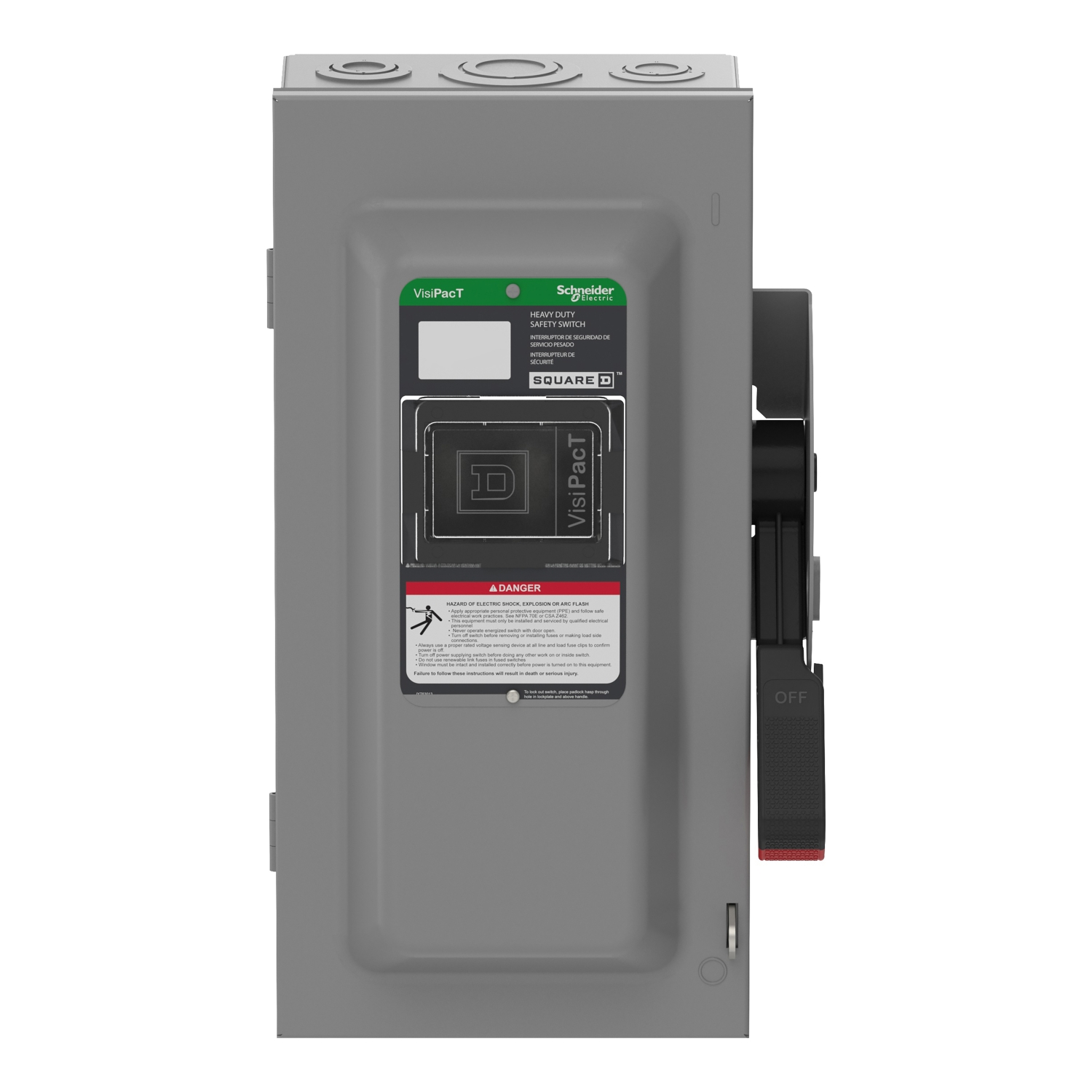

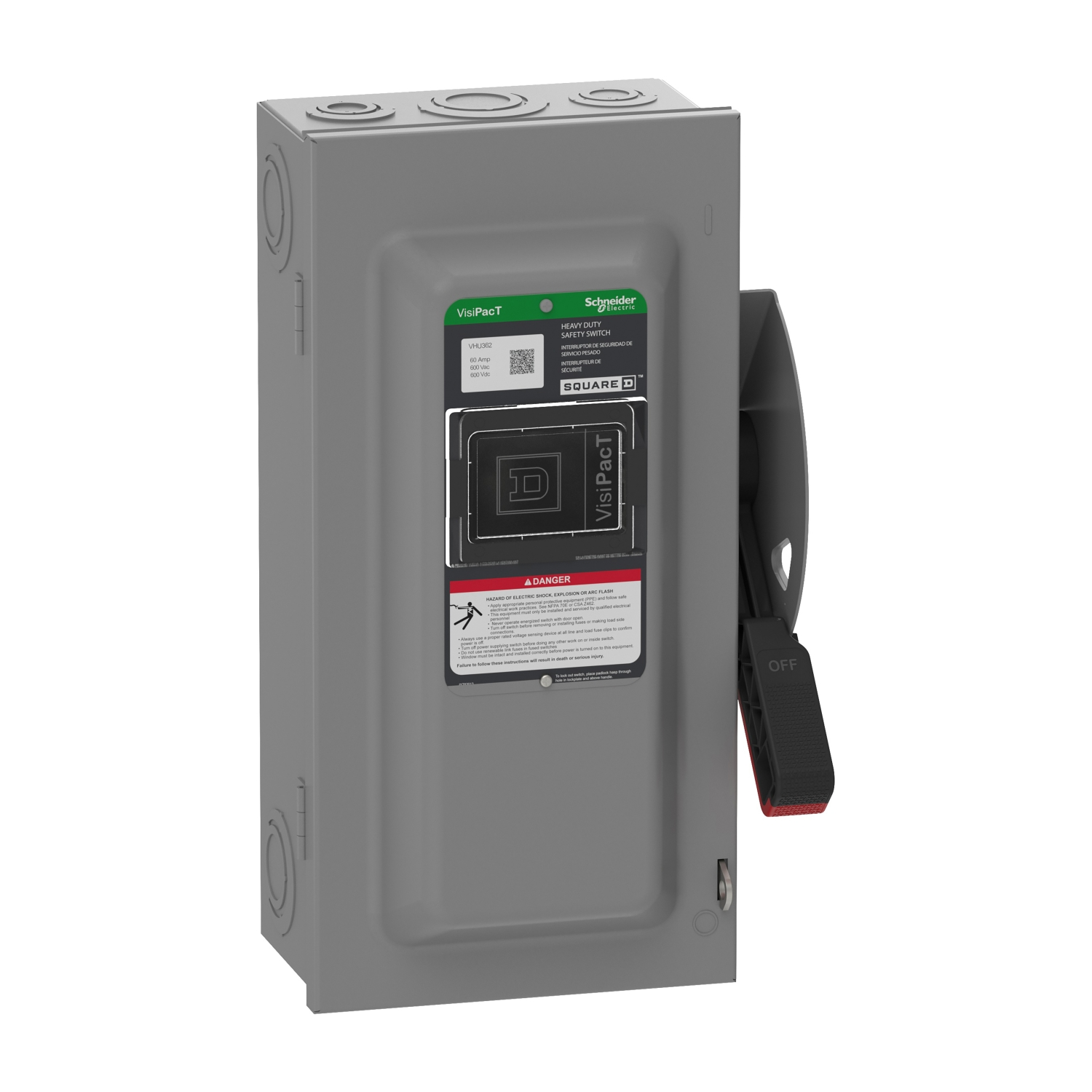

Square D VHU362 600V 60A 3-Pole Type-1 Unfused Heavy Duty Safety Switch w/ Viewing Window

Product Description

The Square D VHU362 Heavy Duty Safety Switch is designed for exceptional performance in demanding conditions. This single throw, non-fusible disconnect switch is rated at 60A and 600VAC/DC. UL listed with a NEMA 1 rating, it features a quick-make, quick-break operating mechanism and a dual cover interlock. The 3-pole switch has a steel enclosure and is surface mounted.

• Designed to be tough and reliable
• Quick-make, quick-break operating mechanism
• UL listed with a NEMA 1 rating of protection

Product Highlights

Heavy duty safety switch with quick-make, quick-break mechanism and NEMA 1 protection.

Product Information

Standard Information

• Brand: Square D
• Manufacturer Part Number: VHU362
• Country of Origin: USA

Technical Specifications

• Brand: Square D
• Type: SINGLE THROW SAFETY SWITCH,NON-FUSIBLE DISCONNECT
• Depth: 6.38 Inch
• Width: 10.5 in
• Height: 21-1/4 Inch
• Current: 60 Amp
• Voltage: 600 Volt
• Amperage: 60 A
• Material: Steel
• Enclosure: 1
• NEMA Size: 1
• Wire Size: AWG 14...AWG 3 copper;AWG 12...AWG 3 aluminium
• Duty Rating: Heavy duty
• Applications: HEAVY DUTY
• Mounting Type: Surface
• TC Connection: LUGS
• Certifications: UL Listed File E2875
• Conductor Size: 12-3 AWG (AL)/14-3 AWG (CU)
• Disconnect Type: Non-fusible disconnect
• Number of Poles: 3 Pole
• Enclosure Rating: 1
• Number of Phases: 3 Phase
• Line Rated Current: 60 A
• Short Circuit Current: 200 kA
• Environmental Conditions: GENERAL PURPOSE (INDOOR)
• Catalog Number: VHU362
• Manufacturer: Schneider Electric
• Made in USA: Yes
• Standards: UL98 || CSA C22.2 No 4 || NOM-003-SCFI-2000
• [Ue] Rated Operational Voltage: 600 V AC/DC
• Device Mounting: surface
• Condition Of Use: suitable service entrance for USA || suitable service entrance for Mexico
• Electrical Connection: lugs
• Wiring Configuration: 3-wire
• Product Certifications: cULus Listed File E2875
• Fused: Non-Fused
• Maximum Amperage (A): 60 A
• Disconnector Device Type: non-fusible disconnect
• Product Or Component Type: Single Throw Safety Switch
• Series Name: heavy duty
• Nema Degree Of Protection: NEMA 1 steel
• Device Application: heavy application
