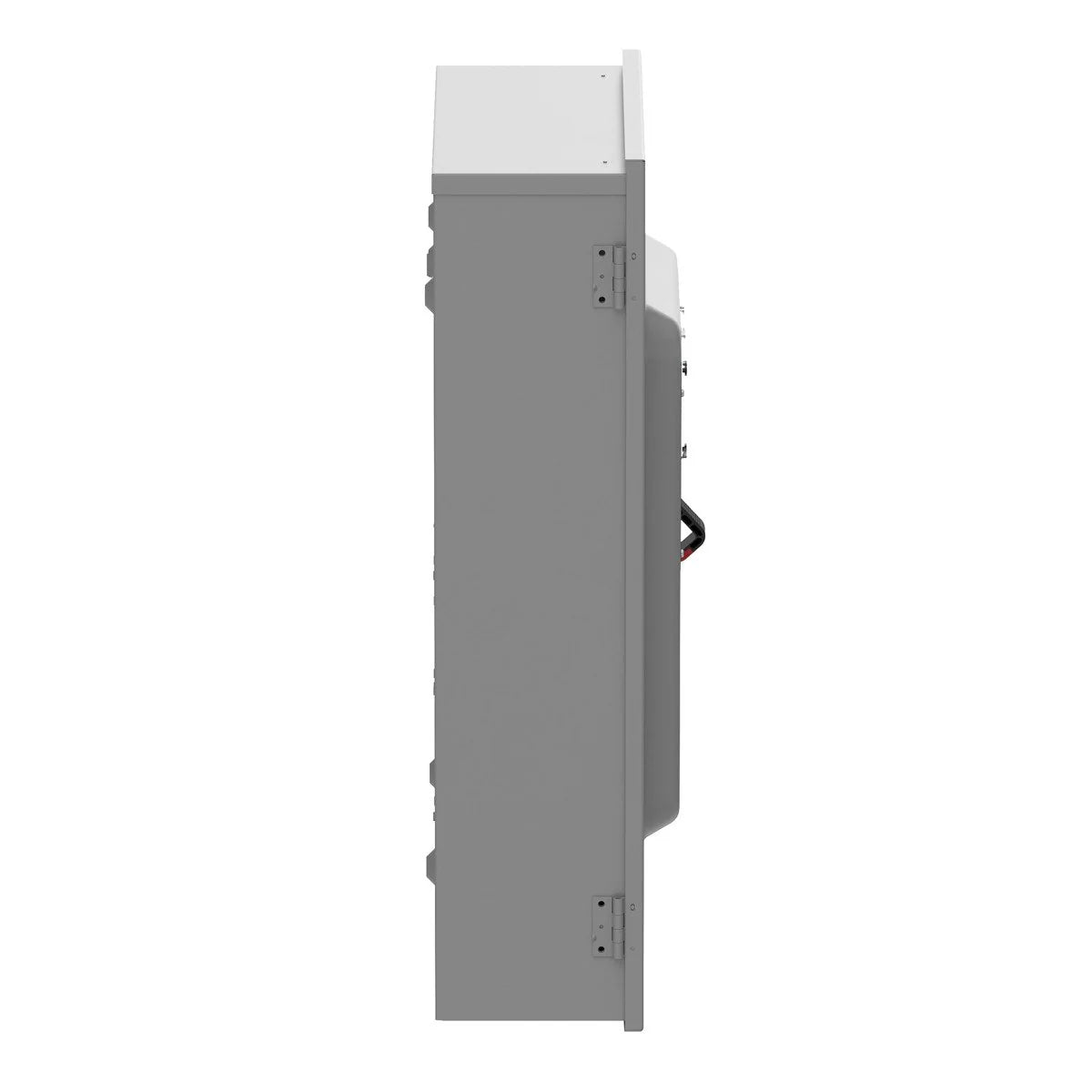

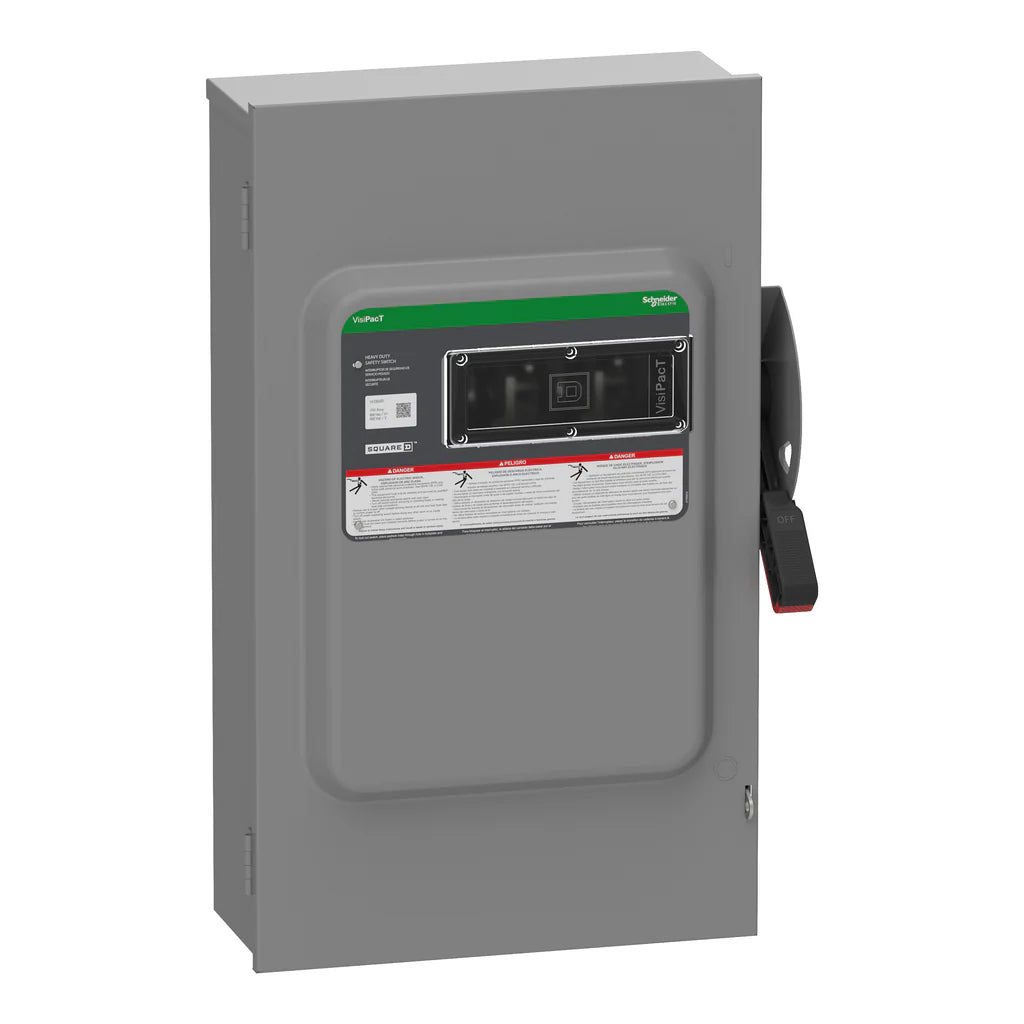

Square D VH364R Safety Switch Heavy Duty 200A 600V

Product Description

Square D's VH364R safety switch is a heavy-duty device designed for robust performance in demanding environments. This switch features a three-blade fusible design rated at two hundred amperes for both six hundred volts alternating current and six hundred volts direct current applications. Its construction ensures durability that surpasses standard switches, with a lifespan three times greater than typical NEMA standards.

• Quick-make, quick-break operating mechanism
• Type 3R rated with a galvannealed steel enclosure
• Accepts various fuse types including H, K, R, and can be modified for J fuses

Product Highlights

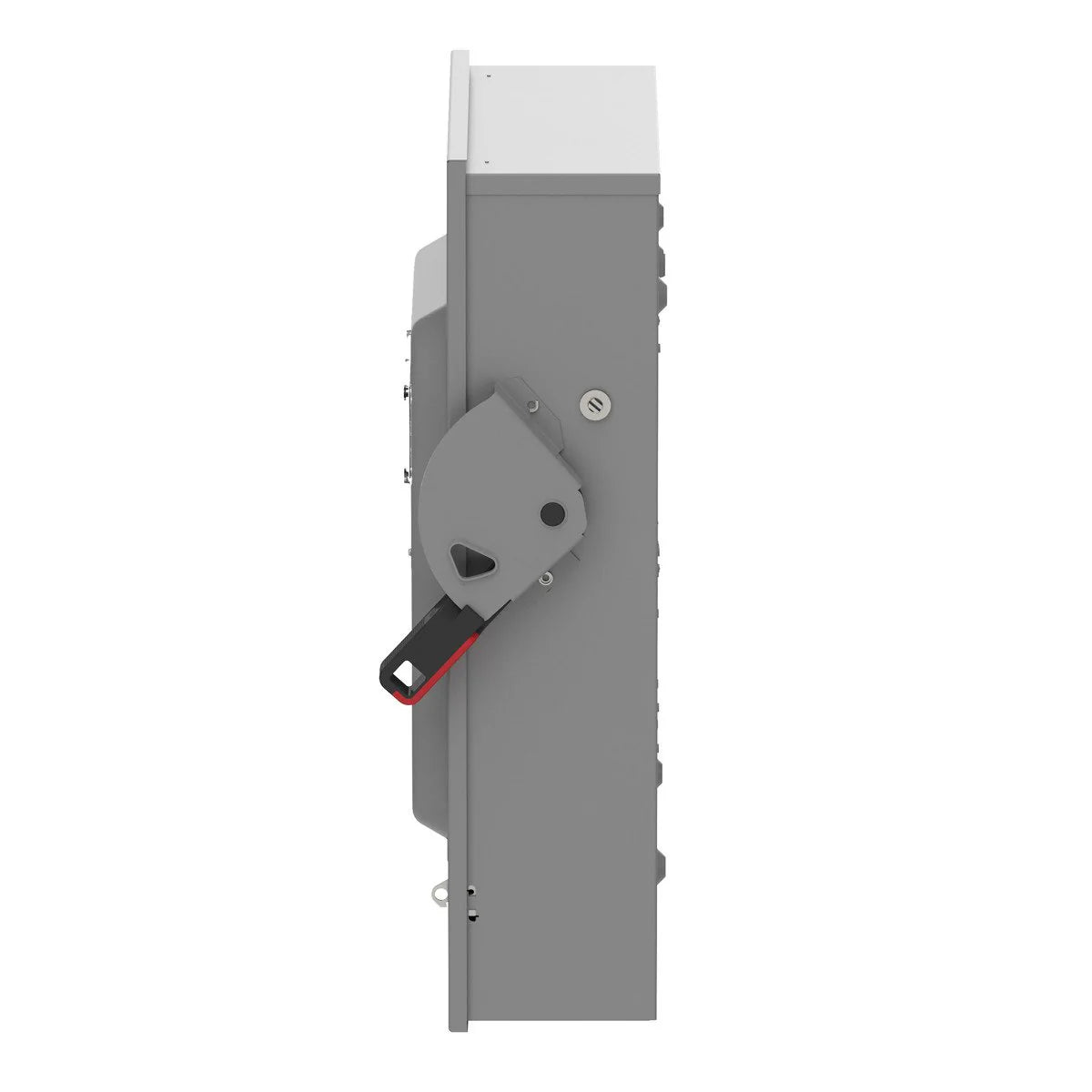

This heavy-duty safety switch is equipped with a dual cover interlock and a color-coded indicator handle for easy identification. The unit supports a three-pole, three-wire configuration. Standard lugs are non-grounded but can be converted with grounding kits.

Product Information

Standard Information

• Catalog Number: VH364R
• Manufacturer: Schneider Electric

Technical Specifications

• Width: 17.016 inches
• Depth: 8.56 inches
• Height: 28.94 inches
• Net Weight: 25.17 kg
• Line Rated Current: 200 A
• Short Circuit Current: 10 kA
• Mounting Type: Surface
• Number of Poles: 3 Pole
