Square D VH364NR Safety Switch Heavy Duty 200A 3 Pole Neutral Installed

Product Description

The Square D VH364NR safety switch from Schneider Electric offers robust protection for electrical systems. This model is engineered for high durability and reliability, suitable for tough environments. Key features include:

• Quick-make, quick-break operating mechanism
• Dual cover interlock for enhanced safety

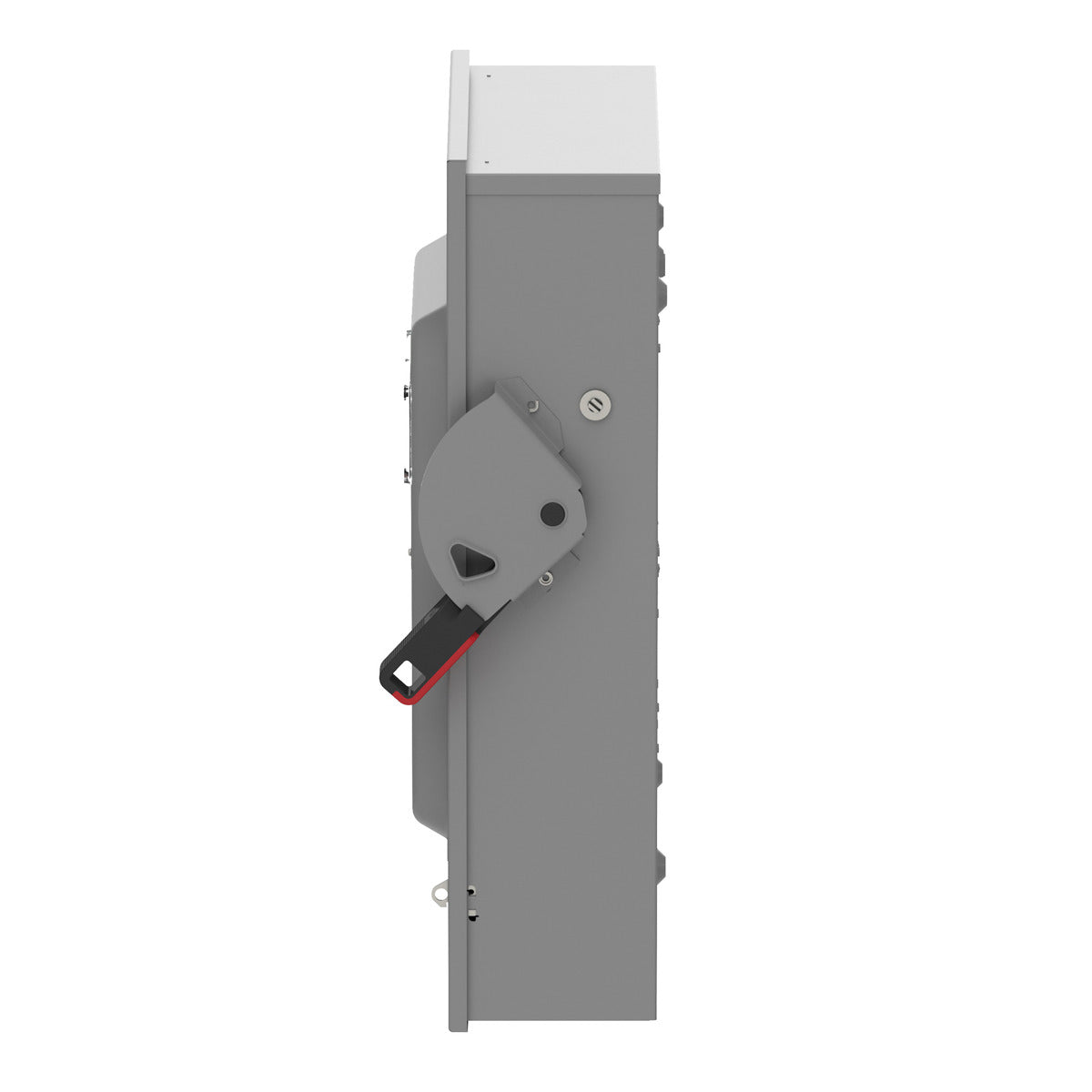

• Color-coded indicator handle for easy operation

Product Highlights

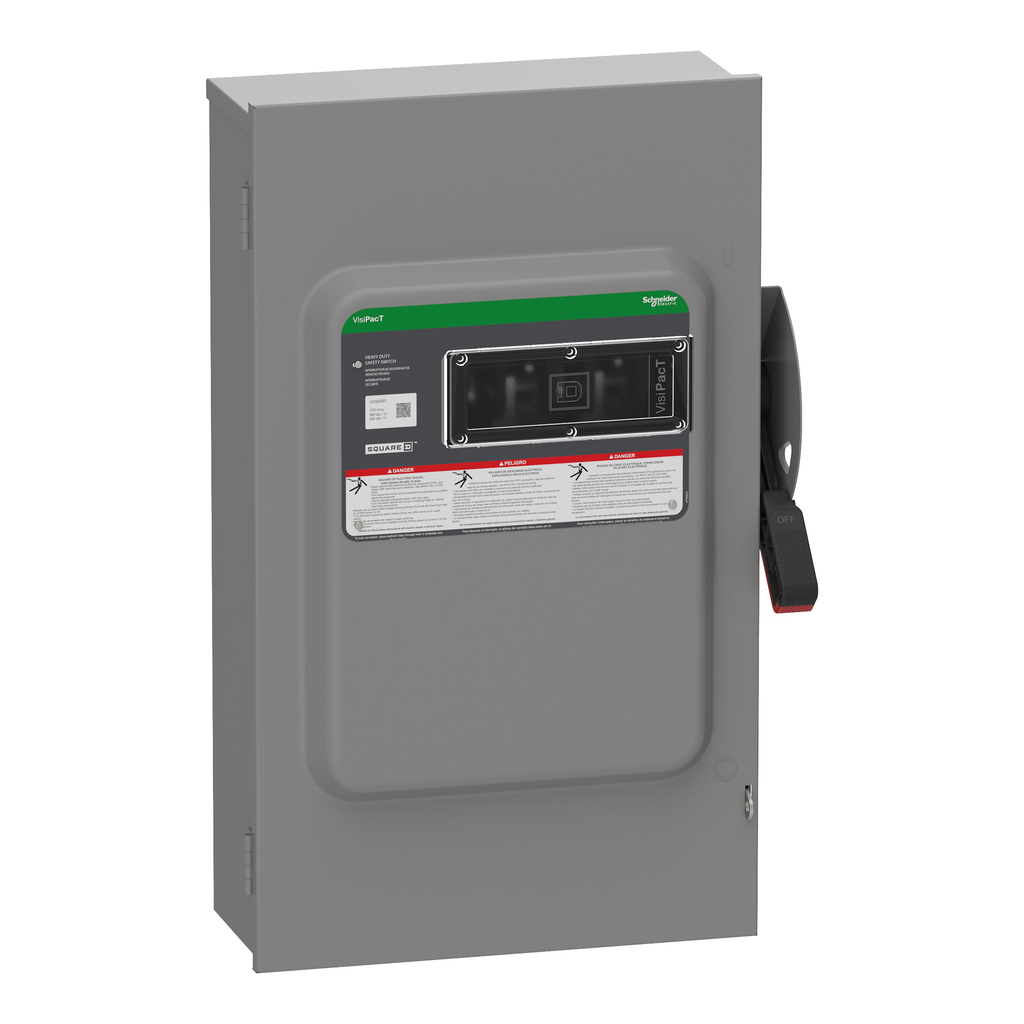

This fusible heavy-duty safety switch operates at 200A, with a voltage rating of 600 VAC and 600 VDC. It provides a short circuit rating of either 10kA or 200kA, depending on the fuses used. The design includes a galvannealed steel enclosure with a viewing window, suitable for surface mounting.

Product Information

Standard Information

• Catalog Number: VH364NR
• Manufacturer: Schneider Electric

Technical Specifications

• Fuse Type: H or K, R or J
• Net Weight: 25.17 kg
• Dimensions: Depth - 8.56 inches, Width - 17.016 inches, Height - 28.94 inches
• Number of Poles: 3 Pole
• Line Rated Current: 200 A
• Short Circuit Current: 10 kA
