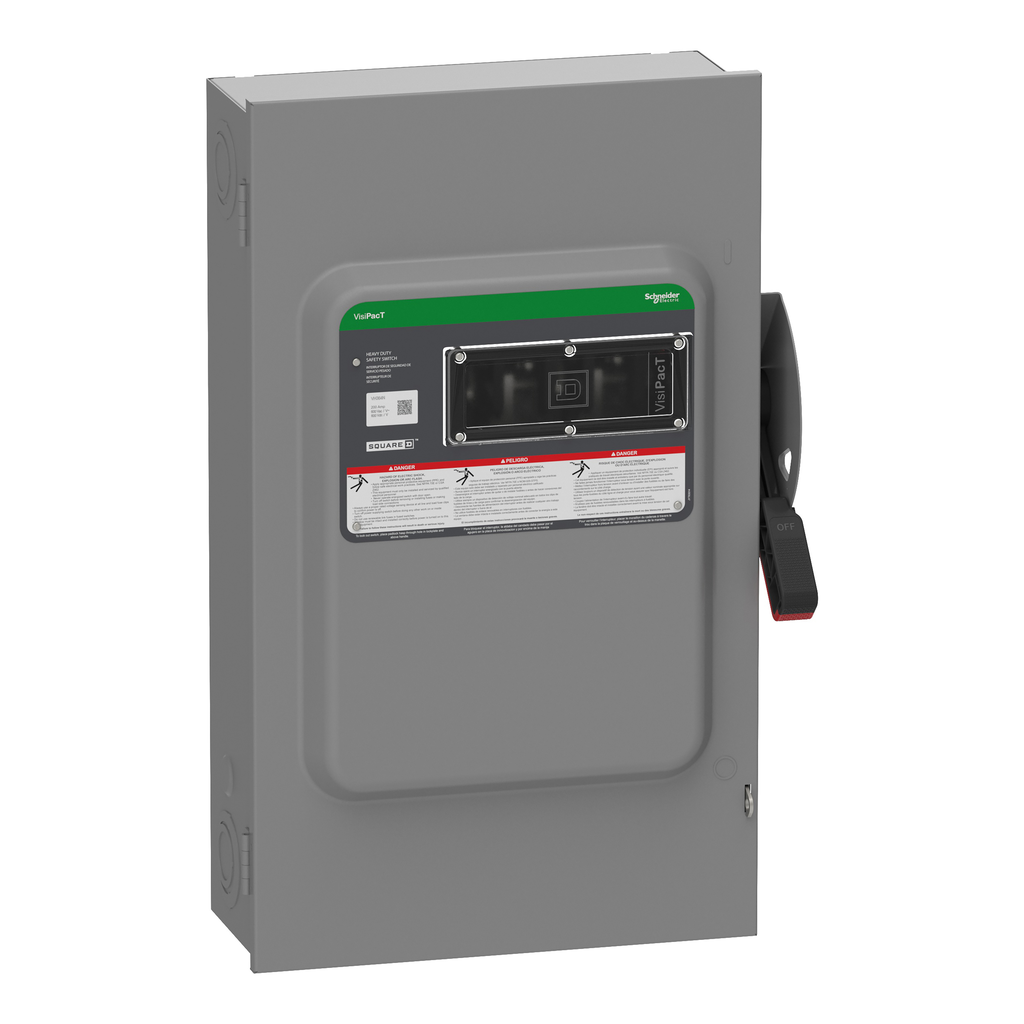

Square D VH364N Safety Switch, Heavy Duty, Fused, Viewing Window, Type 1, 600V, 200A, 3 Pole, Neutral Installed

Product Description

Square D VH364N safety switch is a heavy-duty fused switch with a viewing window, designed for reliable operation in industrial settings. This device offers a rated current of two hundred amps at six hundred volts AC or DC. It features a robust steel enclosure to withstand harsh conditions. The switch has a dual cover interlock and a quick-make, quick-break operating mechanism. It is compatible with H, K, R fuse types and can be modified for J fuses. The design includes a four-wire configuration with three poles and a solid neutral.

• Rated for 600V, 200A operation
• Type 1 enclosure with factory-installed viewing window
• Quick-make, quick-break mechanism for safety

Product Highlights

This safety switch is ideal for commercial and industrial applications, providing durability and reliability.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: VH364N
• Line Rated Current: 200 A
• Number of Poles: 3 Pole
• Fuse Type: H or K, R or J
• Short Circuit Current: 10 kA
• Mounting Type: Surface
• Height: 28.93 inches
• Width: 16.61 inches
• Depth: 8.6 inches
• Net Weight: 25.17 kg
• GTIN: 03606485894256
• Certifications: UL Listed File E2875
• Country of Origin: United States
• Made in USA: Yes
