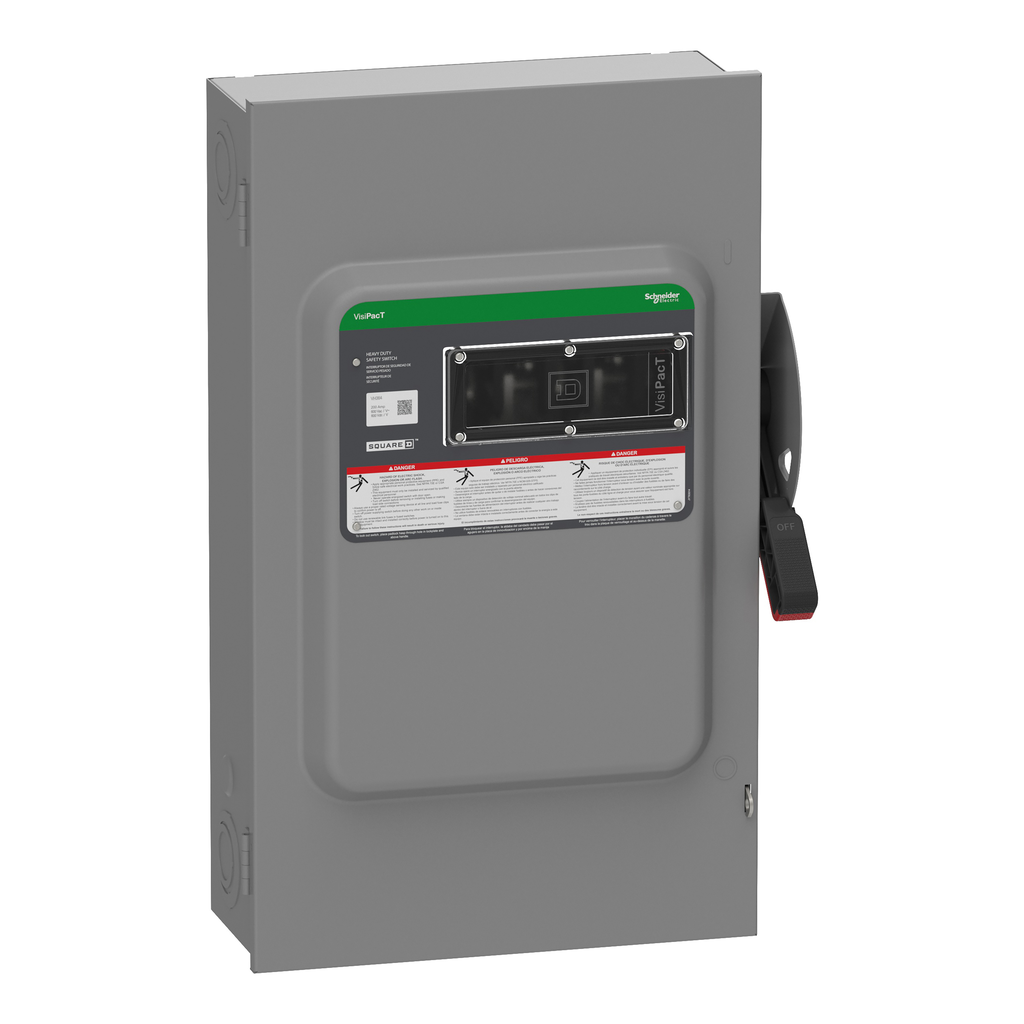

Square D VH364 Safety Switch, Heavy Duty, Fused, Viewing Window, Type 1, 600V, 200A, 3 Pole

Product Description

Square D VH364 safety switch is designed for commercial and industrial environments. Built by Schneider Electric, this switch delivers strong performance and high durability. It meets and exceeds NEMA standards, making it suitable for tough conditions.

• Three pole configuration, rated for 200A and 600VAC or VDC
• Quick-make, quick-break operation with a color-coded handle
• Surface mounted steel enclosure with a factory-installed viewing window

Product Highlights

This safety switch features a fused disconnect, allowing for safe and efficient isolation of electrical circuits. It is equipped to handle H, K, R, and field-modified for J fuse types.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: VH364
• Line Rated Current: 200 A
• Short Circuit Rating: 10 kA or 200 kA
• Number of Poles: 3 Pole
• Fuse Type: H, K, R, J (field modified)
• Mounting Type: Surface
• Depth: 8.6 inches
• Width: 16.61 inches
• Height: 28.93 inches
• Net Weight: 25.17 kg
• Country of Origin: United States
• Certifications: UL Listed File E2875
