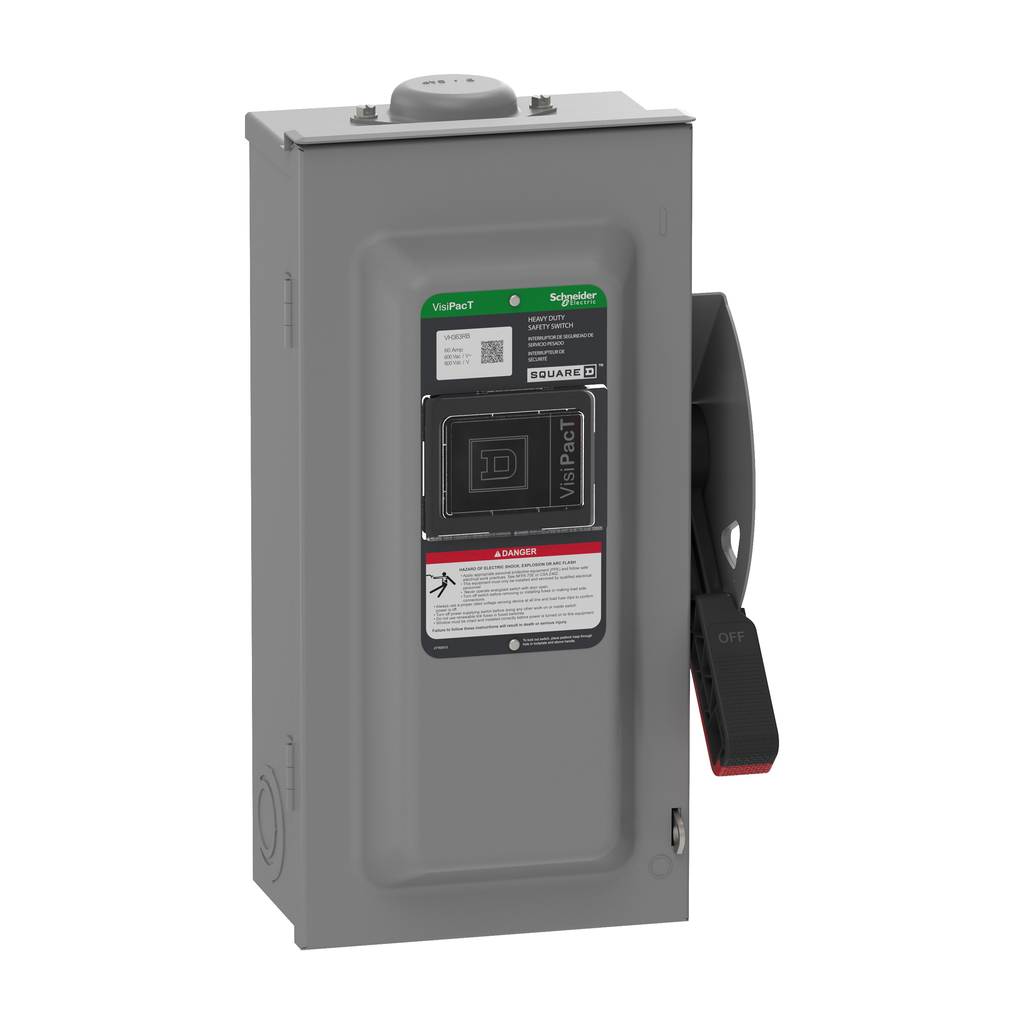

Square D VH363RB Safety Switch, Heavy Duty, Fused, Viewing Window, Type 3R, 600V, 100A, 3 Pole

Product Description

Square D VH363RB is a heavy duty safety switch made by Schneider Electric. This switch is designed for reliable performance in commercial and industrial environments. It has high durability, exceeding standard ratings. The VH363RB is a three pole fusible safety switch rated at 100 Amps and can handle up to 600 volts AC and DC.

• Fused disconnect with a viewing window
• Type 3R rated with a galvannealed steel enclosure
• Supports H, K, R, and J fuse types

Product Highlights

This heavy duty safety switch includes a quick-make and quick-break mechanism, with a dual cover interlock feature and color coded indicator handle. It maintains a short circuit rating of either ten kA or two hundred kA depending on the fuse used.

Product Information

Standard Information

• Catalog Number: VH363RB
• Manufacturer: Schneider Electric

Technical Specifications

• Line Rated Current: 100 A
• Number of Poles: 3 Pole
• Fuse Type: H, K, R, J
• Wire Range: AWG 12 to AWG 1/0 aluminum, AWG 14 to AWG 1/0 copper
• Dimensions: Depth 7.019 inches, Width 9.08 inches, Height 22.13 inches
• Weight: 9 kg
• Certifications: UL Listed File E2875
