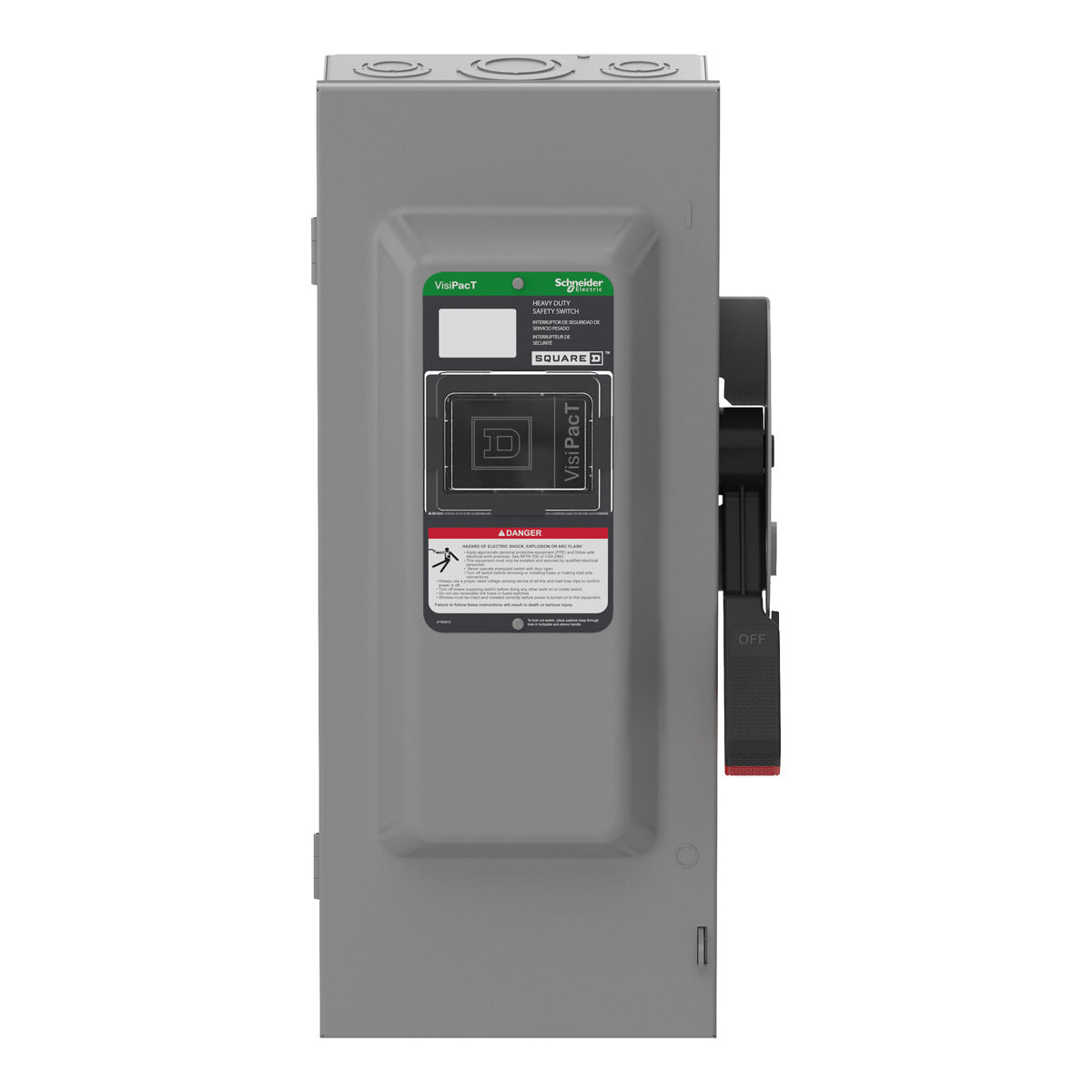

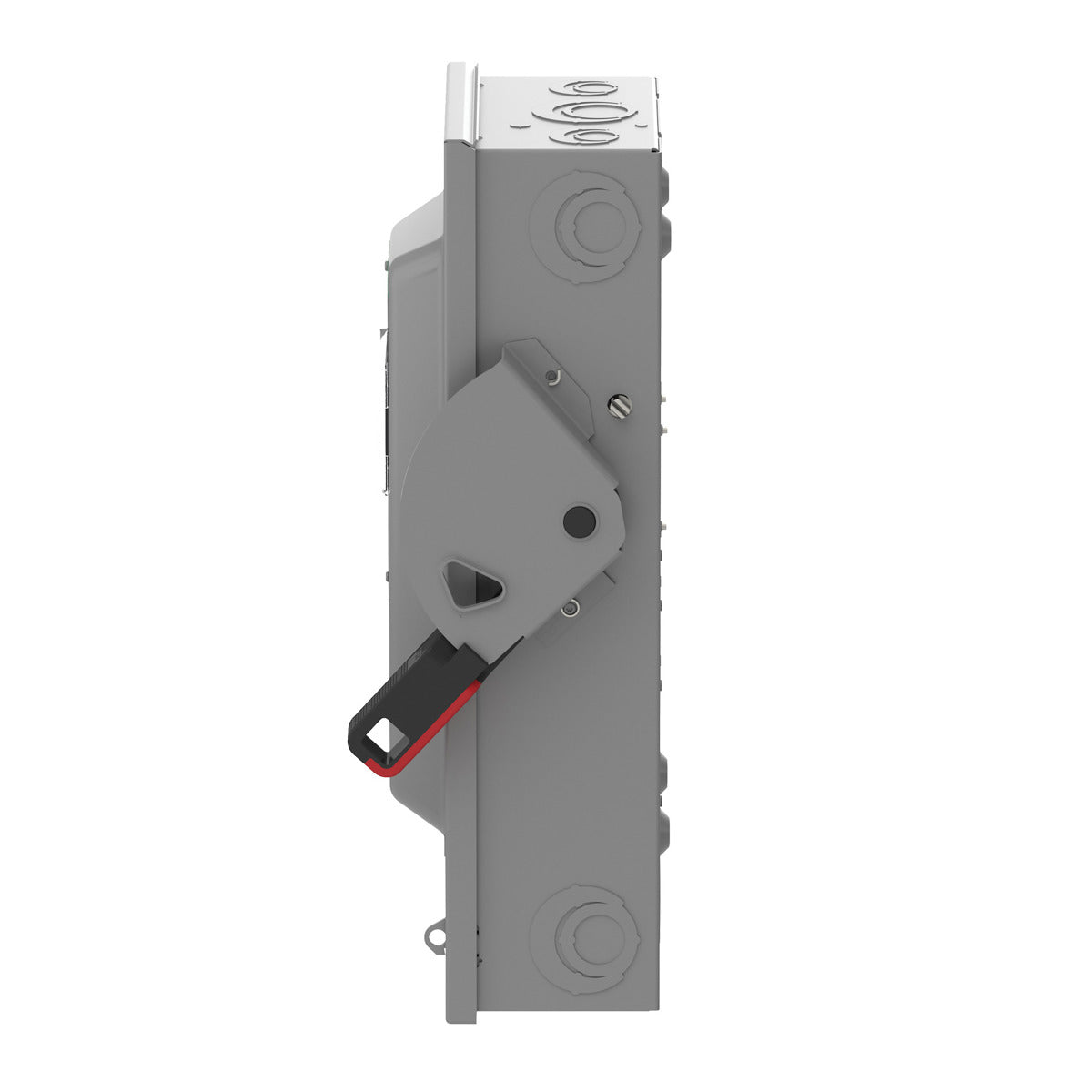

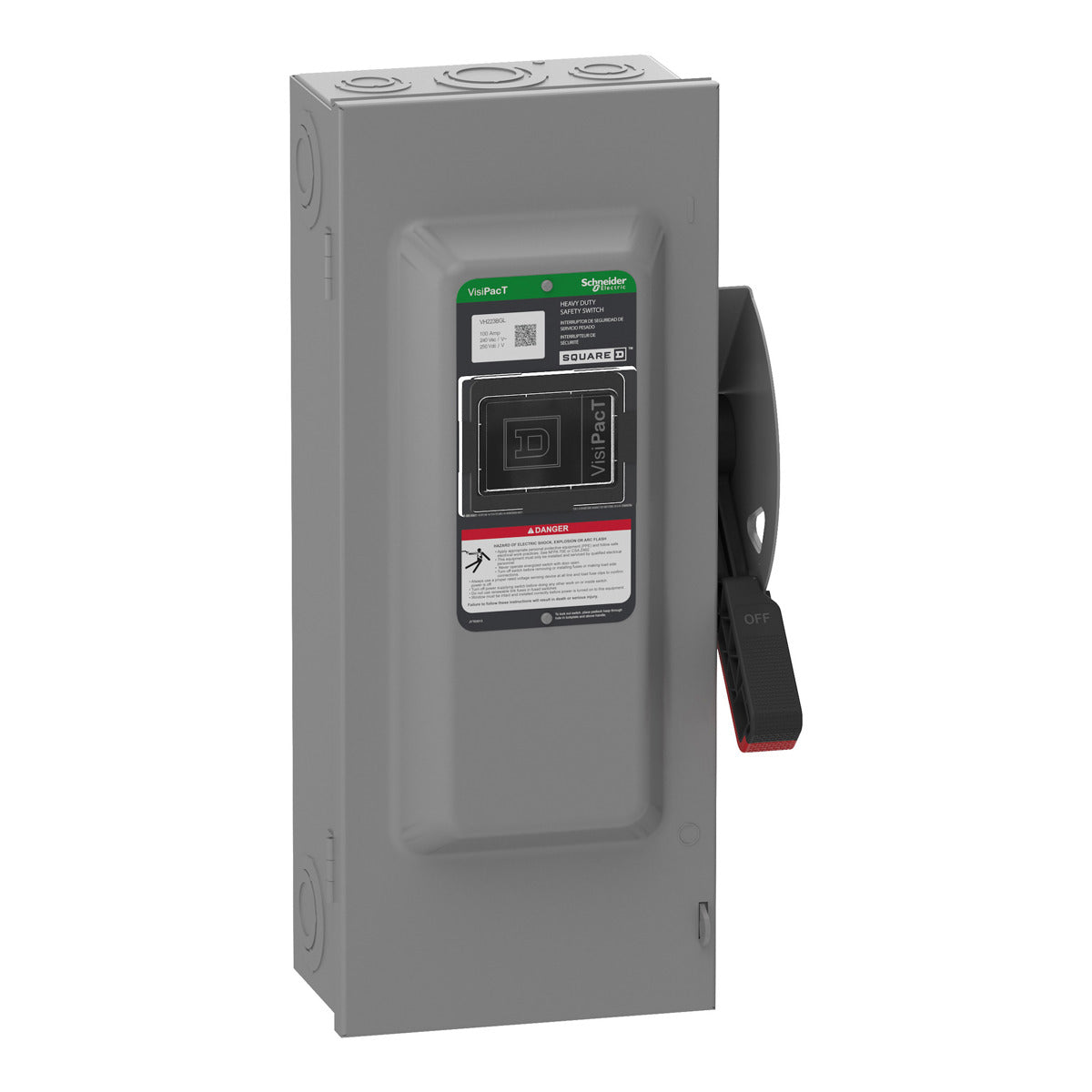

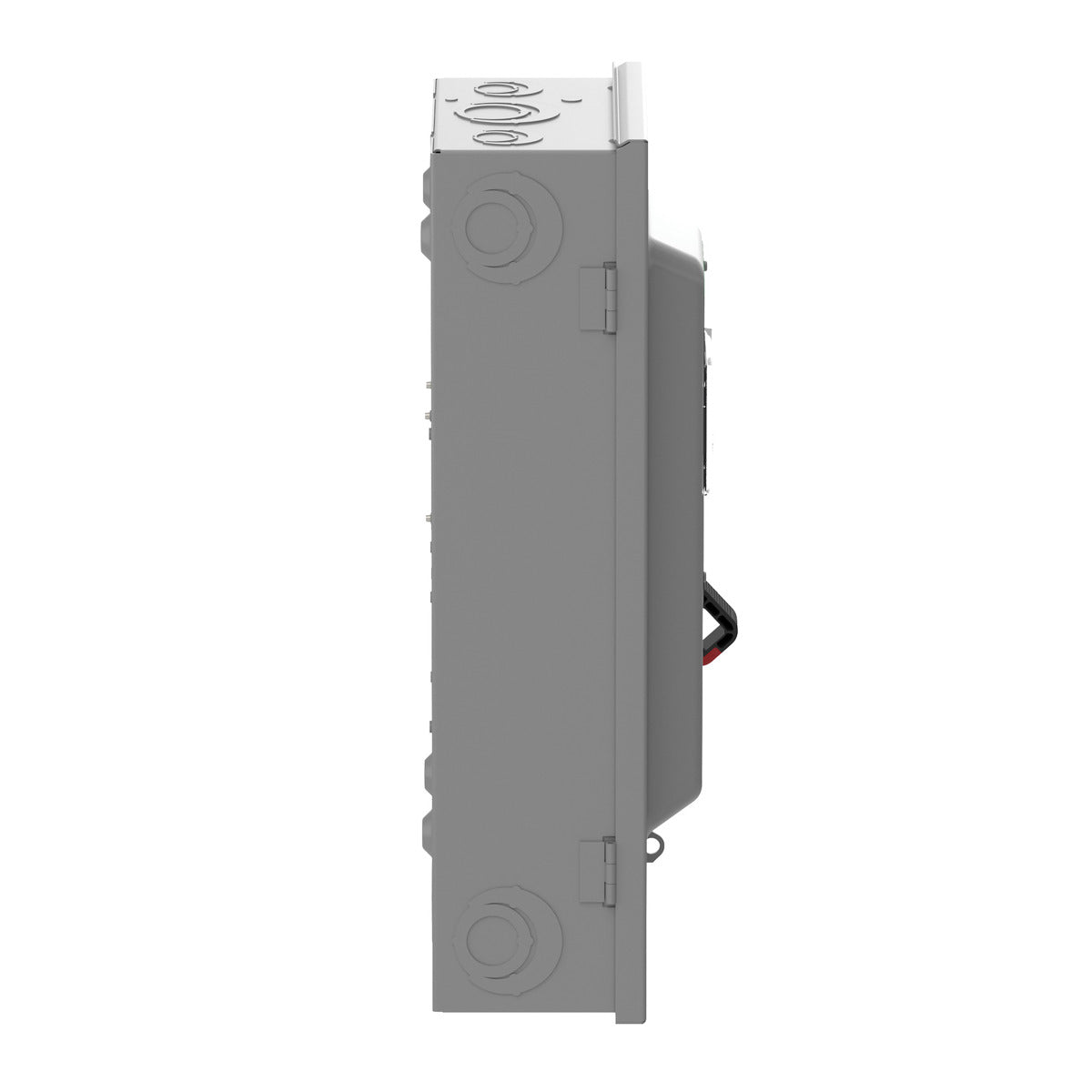

Square D VH363N Safety Switch, Heavy Duty, Fused, Viewing Window, Type 1, 600V, 100A, 3 Pole, Neutral Installed

Product Description

Square D VH363N Safety Switch by Schneider Electric is a reliable solution for commercial and industrial applications. This heavy-duty safety switch is designed for safe disconnect operations, featuring a three-pole configuration with a neutral installed. The switch operates at a maximum of one hundred amps with a voltage rating of six hundred volts AC and DC. Key features include:

• Durable steel enclosure with a factory-installed viewing window.
• Quick-make, quick-break operating mechanism for reliable performance.
• Accepts H, K, R fuse types and can be modified for J fuses.

Product Highlights

This safety switch is ideal for use in demanding environments. Its robust construction exceeds industry standards, offering three times the durability of a standard switch. It is surface-mounted and equipped with standard lugs, while compatibility with grounding kits is available.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Line Rated Current: 100 A
• Voltage: 600 VAC and 600 VDC
• Short Circuit Current Rating: 10 kA
• Number of Poles: 3 Pole
• Fuse Type: H, K, R, J (field modified)
• Dimensions: 21.84 inches (Height) x 8.91 inches (Width) x 7.04 inches (Depth)
• Net Weight: 9 kg
• Certifications: UL Listed File E2875
