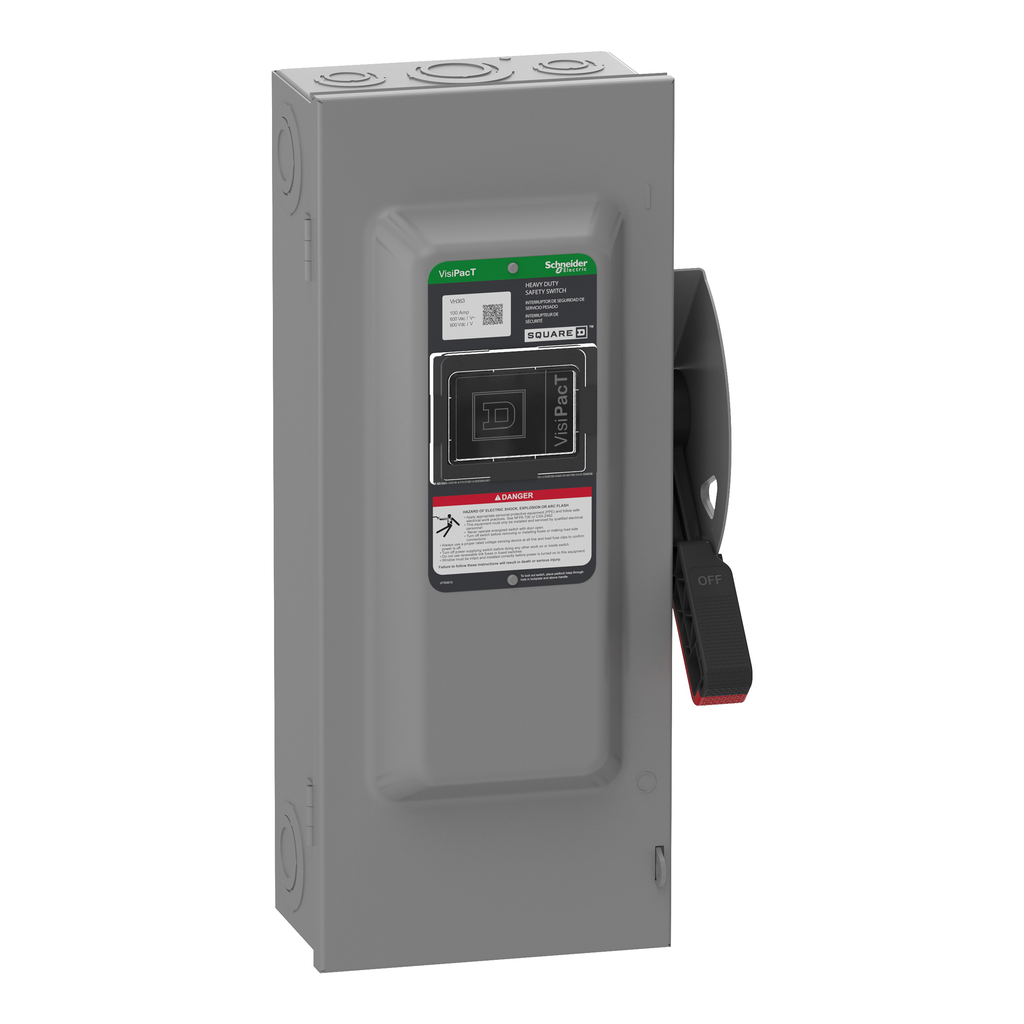

Square D VH363 Safety Switch, Heavy Duty, Fused, Viewing Window, Type 1, 600V, 100A, 3 Pole

Product Description

Square D VH363 Safety Switch is a heavy-duty fused switch with a viewing window, designed for commercial and industrial applications. Rated at 100 amperes and suitable for both 600 VAC and 600 VDC operations, this device is built to endure harsh conditions. It features a quick-make and quick-break operating mechanism, enhancing reliability in power distribution.

• Rated for 100A with a voltage of 600 VAC and 600 VDC
• Quick-make, quick-break operating mechanism
• Factory installed viewing window for easy operation

Product Highlights

This safety switch incorporates a steel enclosure and is Type 1 rated, allowing it to be used in various environments.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: VH363
• Number of Poles: 3 Pole
• Line Rated Current: 100 A
• Height: 21.84 inches
• Width: 8.91 inches
• Depth: 7.04 inches
• Fuse Type: H or K, R or J
• Short Circuit Current Rating: 10 kA or 200 kA
