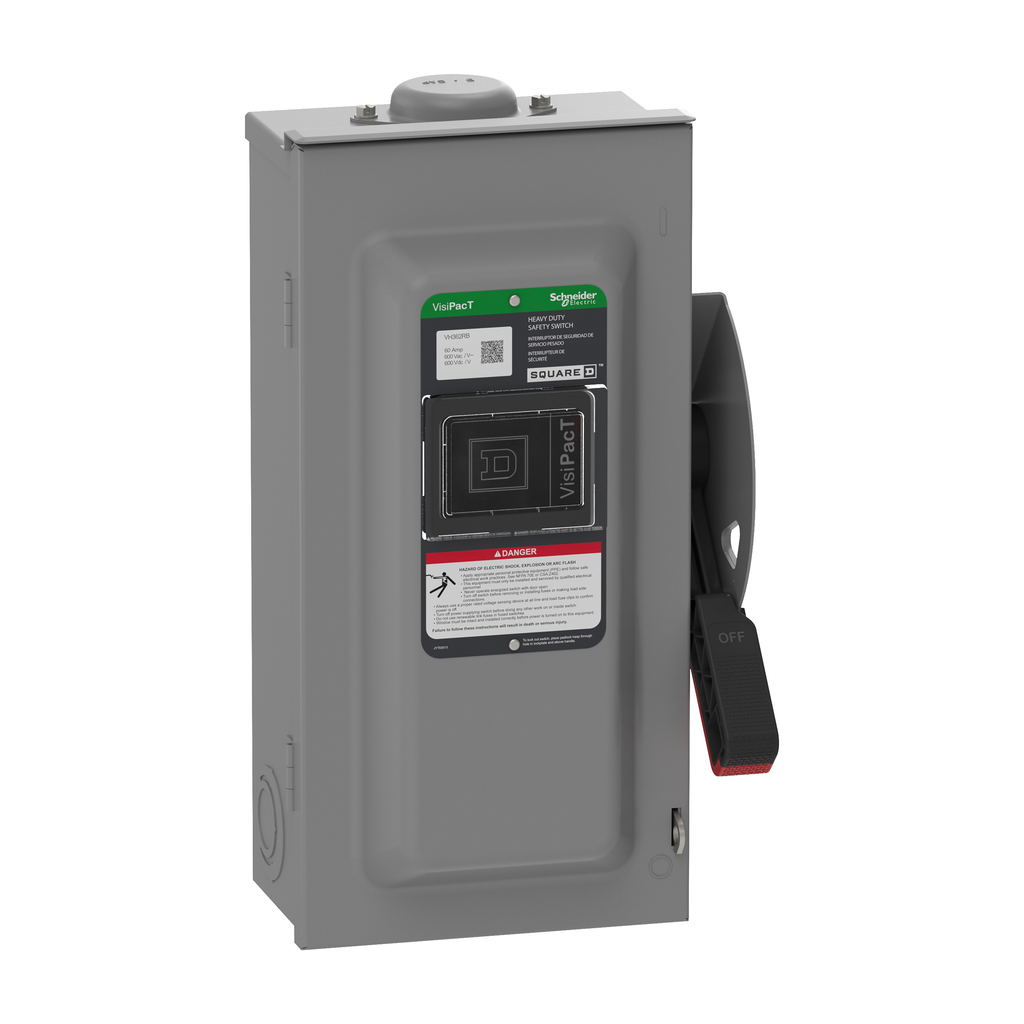

Square D VH362RB Safety Switch, Heavy Duty, Unfused, Viewing Window, Type 3R, 600V, 60A, 3 Pole

Product Description

Square D VH362RB Safety Switch is a heavy-duty, unfused disconnect designed for commercial and industrial applications. Rated at sixty amps, it operates at a voltage of six hundred volts AC or DC. The device is constructed to withstand tough environmental conditions, offering reliable performance through its durable construction.

• Type 3R rated with a galvanized steel enclosure
• Factory-installed viewing window for easy operation
• Compatible with H, K, R fuse types and can be modified for J fuses

Product Highlights

This safety switch is built for demanding environments, featuring quick-make, quick-break operation and a dual cover interlock mechanism. Its design enhances safety while providing an effective means to disconnect power.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: VH362RB
• Line Rated Current: 60 A
• Short Circuit Current: 10 kA
• Number of Poles: 3 Pole
• Depth: 7.038 inches
• Width: 9.08 inches
• Height: 18.456 inches
• Net Weight: 8 kg
