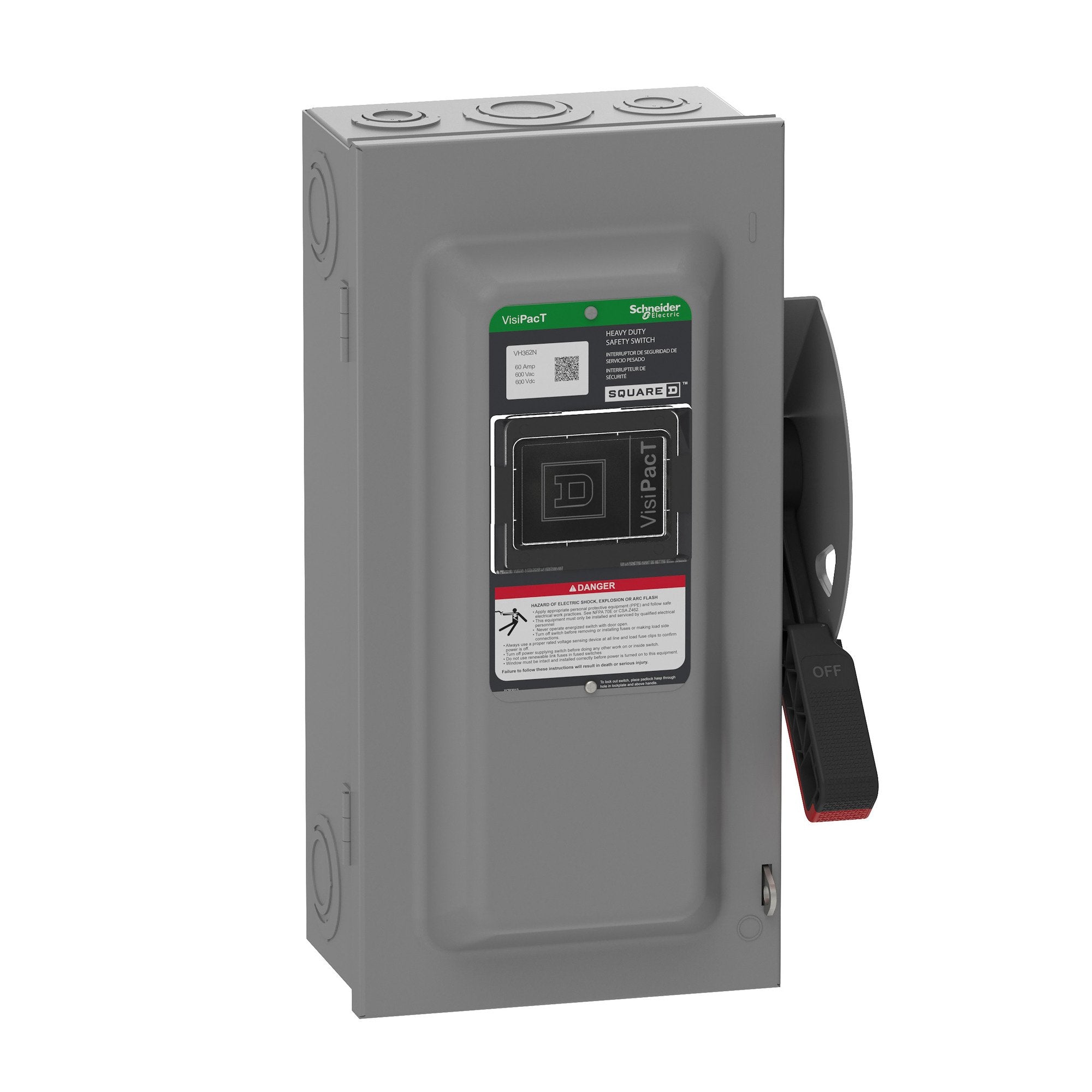

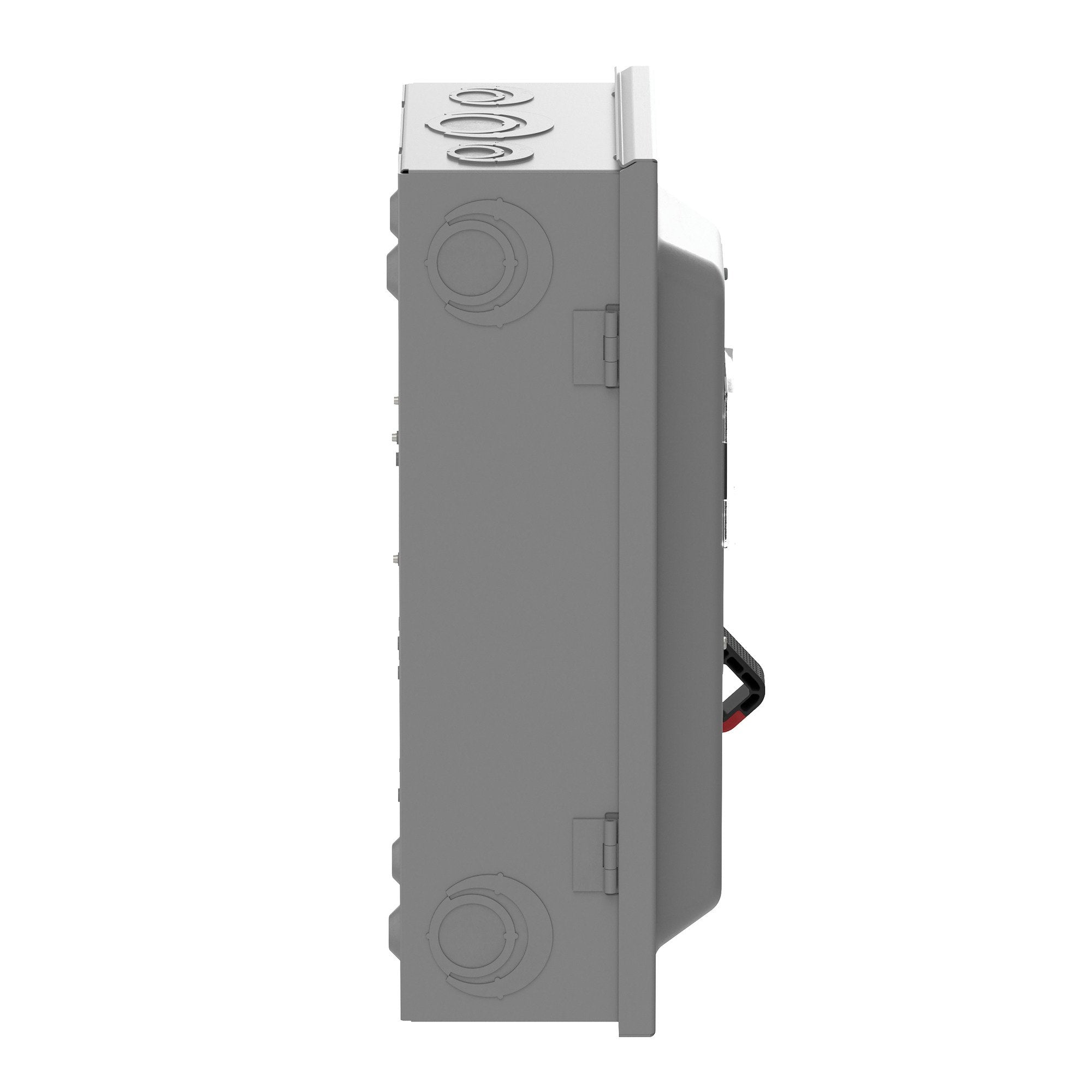

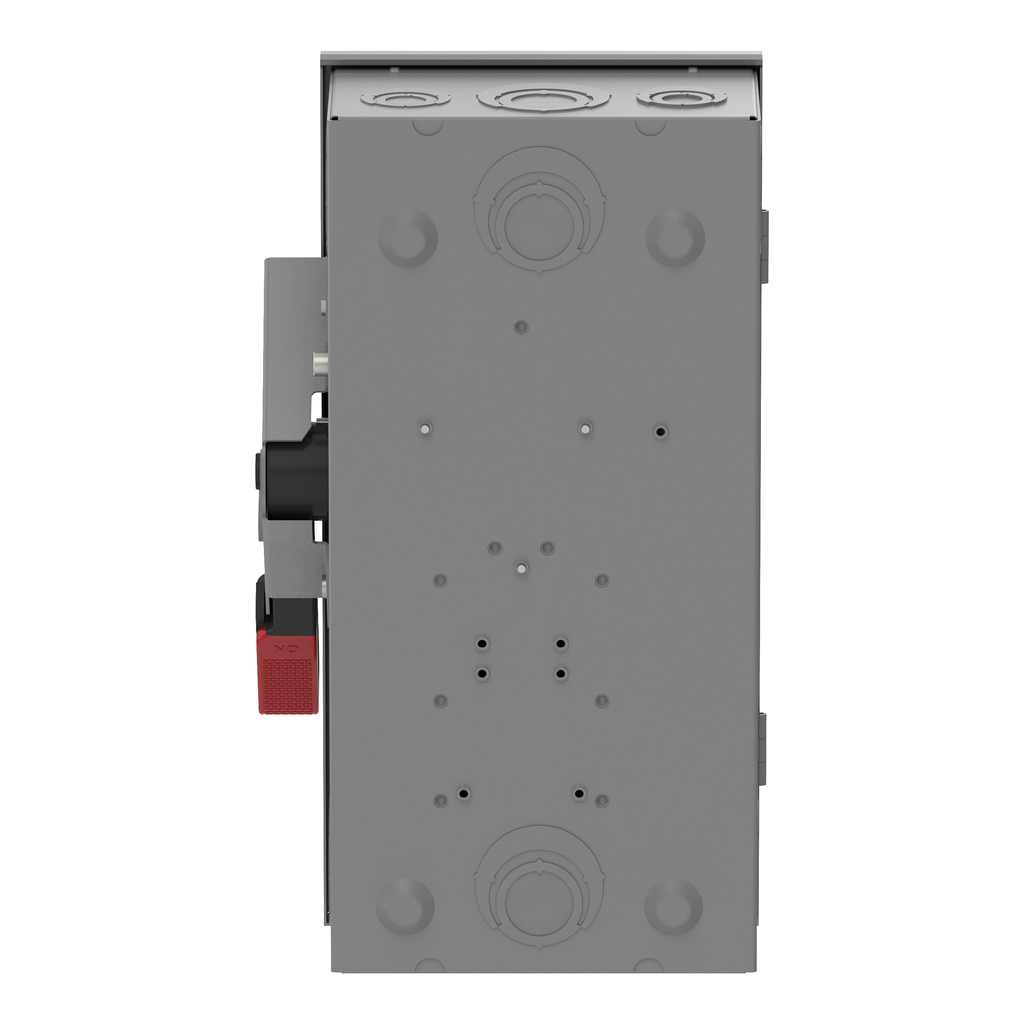

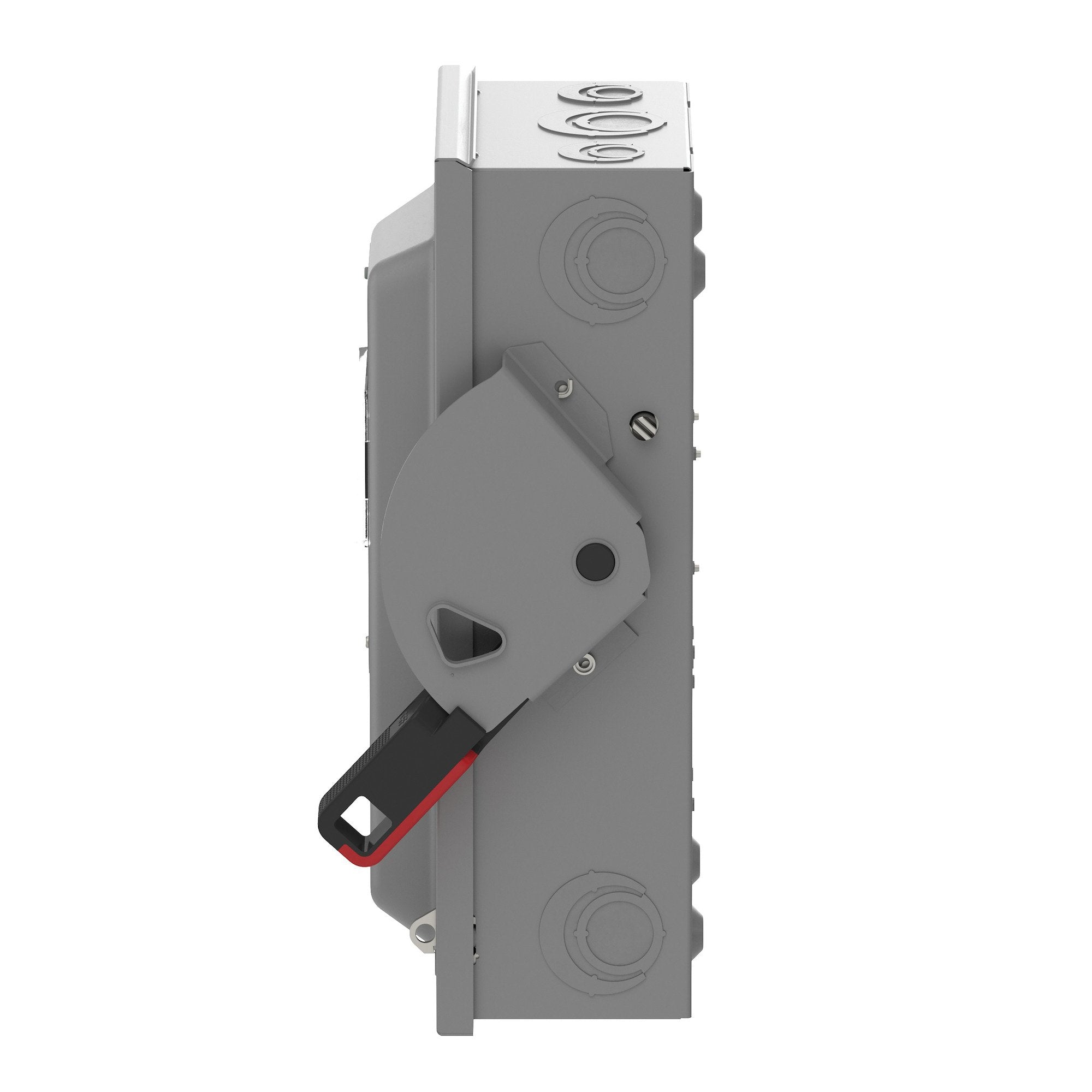

Square D VH362N Safety Switch, Heavy Duty, Fused, Viewing Window, Type 1, 600V, 60A, 3 Pole, Neutral Installed

Product Description

The Square D VH362N by Schneider Electric is a heavy-duty safety switch designed for reliable performance across commercial and industrial applications. This switch features a robust design with a viewing window for easy status checks. It is rated for 60 amps and can handle voltages up to 600 volts alternating current (VAC) and 600 volts direct current (VDC). The construction meets NEMA standards, providing enhanced durability and safety.

• Quick-make, quick-break operating mechanism.
• Factory-installed viewing window for convenient monitoring.
• Accepts fuse types H, K, R, and can be modified for J fuses.

Product Highlights

This safety switch provides secure disconnection, ensuring safety in heavy-duty environments. It features a steel enclosure rated Type 1 for indoor use and allows a wide range of wire sizes.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: VH362N
• Voltage Rating: 600 VAC / 600 VDC
• Amperage Rating: 60 Amp
• Enclosure Material: Steel
• Dimensions: 10.5 inches x 17.5 inches x 6.38 inches
• Number of Poles: 3 Pole
• Wire Range: AWG 12 to AWG 3 aluminum, AWG 14 to AWG 3 copper
• Short Circuit Rating: 10kA or 200kA
• UL Listed: Yes
• Country of Origin: USA
