Square D VH362 Heavy Duty Safety Switch 600V 60A 3-Pole Class H/J/K/R

Product Description

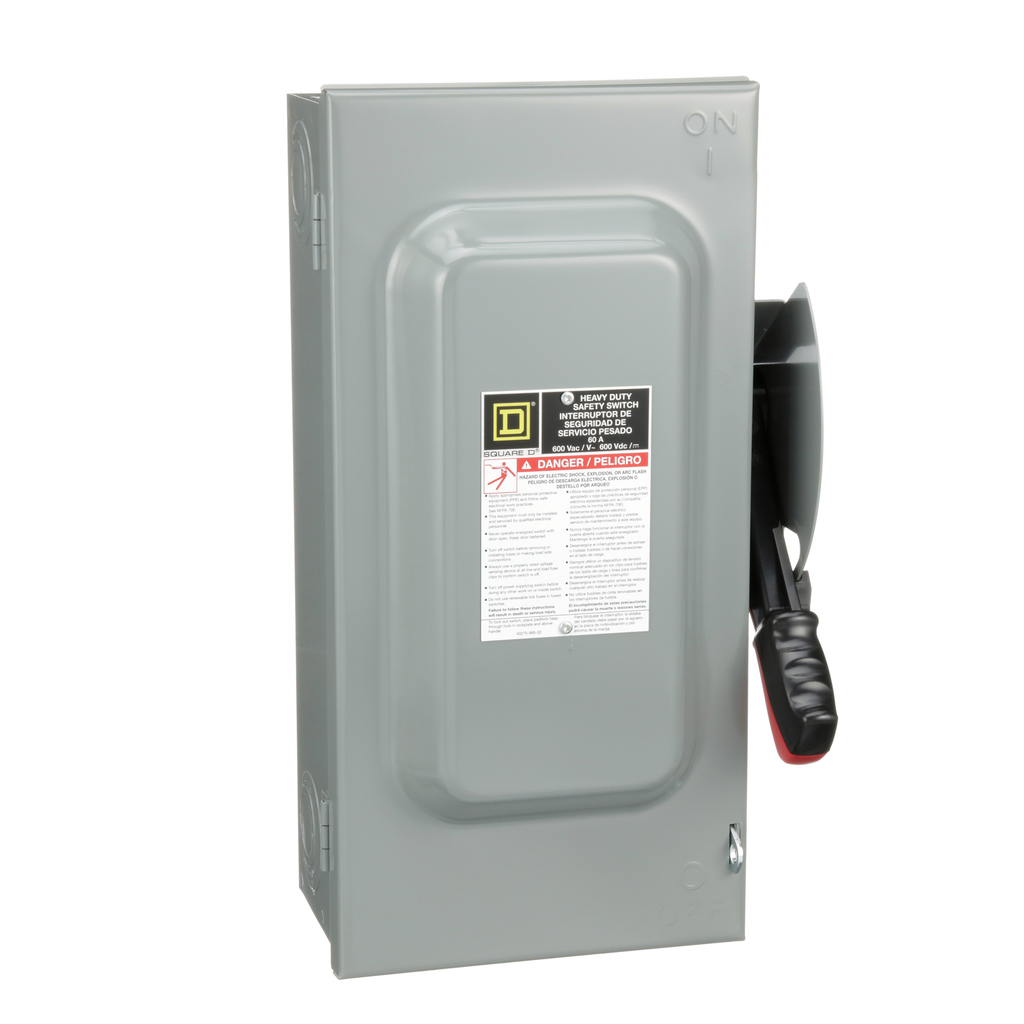

The Square D heavy duty safety switch, model VH362, from Schneider Electric is designed for reliability and strength in demanding environments. This switch is rated for a current of sixty amps with operational voltage up to six hundred volts AC or DC. All switches feature a quick-make, quick-break mechanism, ensuring safety and ease of use.

• UL listed with NEMA 1 rating.
• Surface mounted with a steel enclosure.
• Compatible with H, J, K, and R fuse types.

Product Highlights

This safety switch is suitable for commercial and industrial applications, offering high durability and a factory-installed viewing window for clear visibility.

Product Information

Standard Information

• Brand: Square D
• MPN: VH362

Technical Specifications

• Rated Current: 60 A
• Operational Voltage: 600 V
• Number of Poles: 3
• Enclosure Material: Steel
• Short Circuit Current Rating: 10 kA to 200 kA
• Type: Fusible disconnect
• Mounting Type: Surface
• Width: 10.5 inches
• Height: 17.5 inches
• Depth: 6.38 inches
• Weight: 15.43 lb
