Square D VH361RB Safety Switch Heavy Duty Fused Viewing Window Type 3R 600V 30A 3 Pole

Product Description

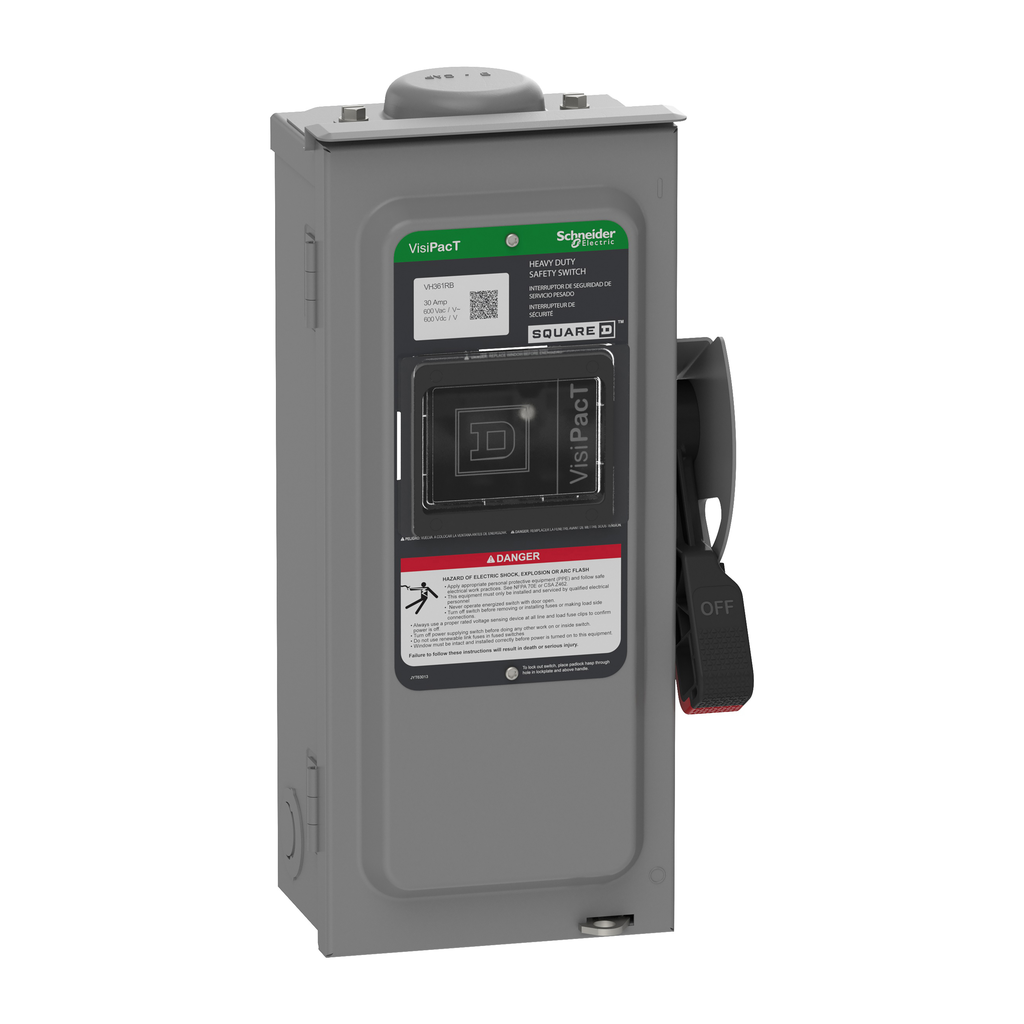

Square D's VH361RB is a heavy-duty safety switch designed for reliable performance in commercial and industrial environments. This device operates at a voltage of six hundred volts and carries a current rating of thirty amperes. It includes a factory-installed viewing window to allow for easy status observation. The switch is constructed with a galvannealed steel enclosure, providing robust protection against harsh conditions.

• Heavy-duty design for enhanced durability
• Rated for 600 VAC and 600 VDC
• Compatible with H, K, R, and J fuse types

Product Highlights

Designed for high durability, the VH361RB safety switch offers a quick-make, quick-break mechanism and compliance with UL98 standards.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: VH361RB
• Line Rated Current: 30 A
• Voltage Rating: 600 VAC / 600 VDC
• Fuse Type: H, K, R, J
• Number of Poles: 3 Pole
• Short Circuit Rating: 10 kA / 200 kA
• Mounting Type: Surface
• Dimensions: Width 6.62 inches, Height 14.843 inches, Depth 5.16 inches
• Net Weight: 4 kg
• Certifications: UL Listed File E2875
