Product Description

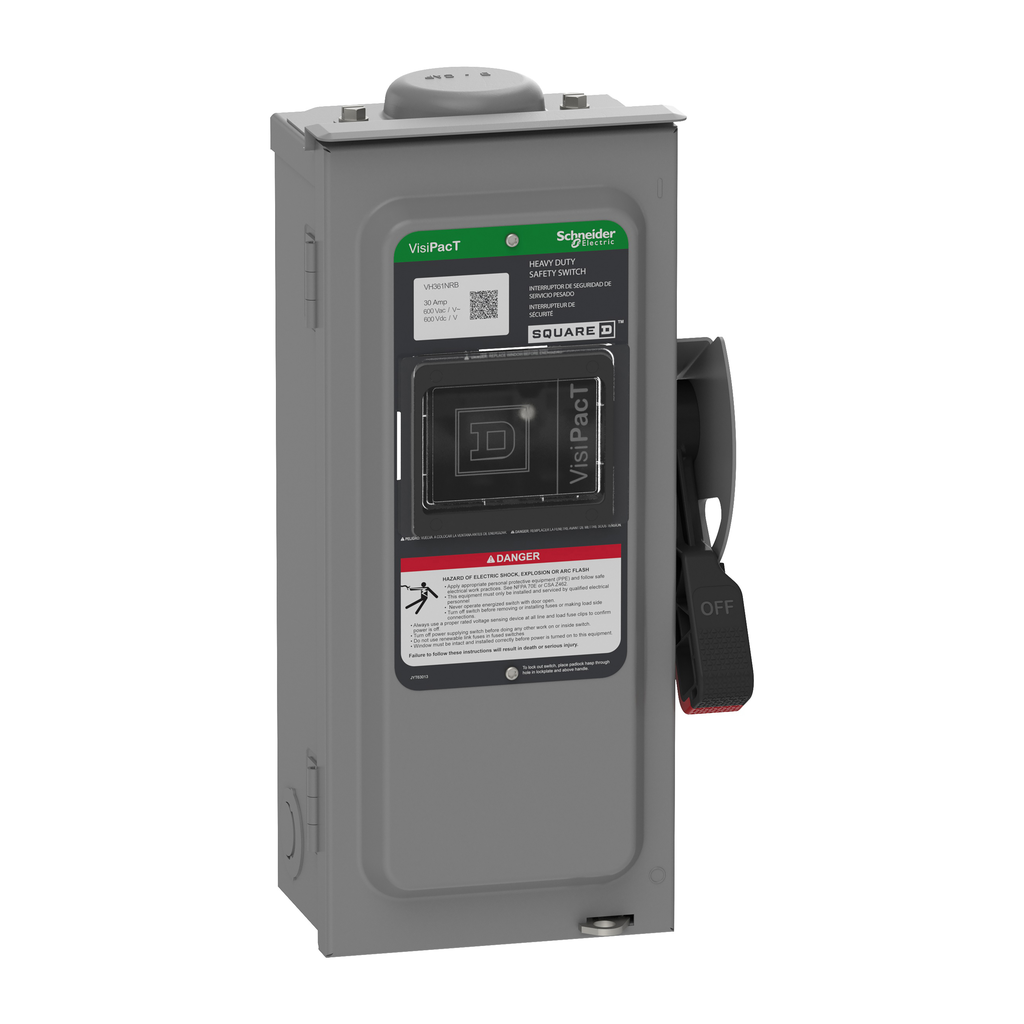

Square D VH361NRB is a heavy-duty safety switch by Schneider Electric. This switch is built for reliability and high performance in demanding environments. With a durability rating three times higher than NEMA standards, it is suitable for commercial and industrial applications. It features a quick-make, quick-break operation, a dual cover interlock, and a color-coded indicator handle.
- Rated for thirty amperes with six hundred volts AC and DC
- Type 3R rated with a galvannealed steel enclosure
- Includes a factory-installed viewing window
Product Highlights
This fusible switch supports H, K, R fuse types and is field-modifiable for J fuses. The switch has a four-wire configuration with three poles and one solid neutral, ensuring effective circuit protection. Standard lugs allow for easy installation, with grounding kits available for enhanced safety.
Product Information
Standard Information
-
Manufacturer: Schneider Electric
-
Brand: Square D
Technical Specifications
-
Catalog Number: VH361NRB
-
Line Rated Current: 30 A
-
Voltage Rating: 600 VAC / 600 VDC
-
Short Circuit Current Rating: 10 kA or 200 kA
-
Fuse Type Compatibility: H, K, R, or J
-
Height: 14.843 inches
-
Width: 6.62 inches
-
Depth: 5.16 inches
-
Weight: 4 kg
-
Mounting Type: Surface
-
UL Certification: UL Listed File E2875
