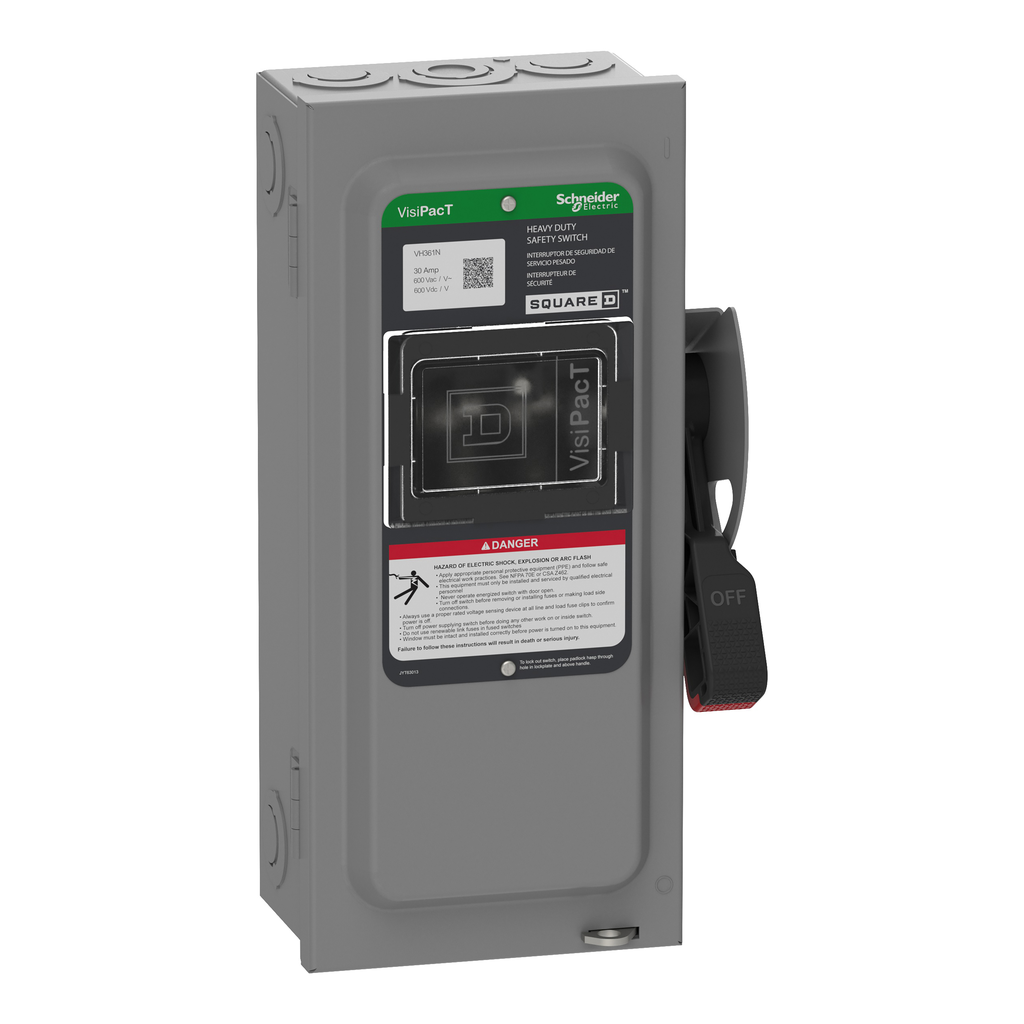

Square D VH361N Safety Switch, 600V, 30A, 3 Pole, Neutral Installed

Product Description

Square D VH361N is a heavy-duty safety switch designed for reliable operation in demanding environments. This fused safety switch is rated for thirty amps and can handle voltages up to six hundred volts AC and DC. It is built with a three-pole design featuring a solid neutral installed at the factory, making it suitable for industrial and commercial applications. The switch includes a viewing window for easy status checks and is housed in a type one steel enclosure.

• Three-blade fusible safety switch rated for 30 amps.
• Short circuit rating of either 10 kA or 200 kA based on fuse type.
• Accepts H, K, R fuse types with field modification option for J fuses.

Product Highlights

This safety switch is designed for surface mounting and provides essential safety features like a quick-make, quick-break operating mechanism and a dual cover interlock for enhanced protection.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: VH361N
• Line Rated Current: 30 A
• Voltage Rating: 600 VAC / 600 VDC
• Number of Poles: 3 Pole
• Short Circuit Rating: 10 kA
• Fuse Type: H, K, R, or J (field modified)
• Height: 14.57 inches
• Width: 6.36 inches
• Depth: 5.11 inches
• Net Weight: 4 kg
