Square D VH361DSGL Safety Switch 30A 600V Replacement MPN

Product Description

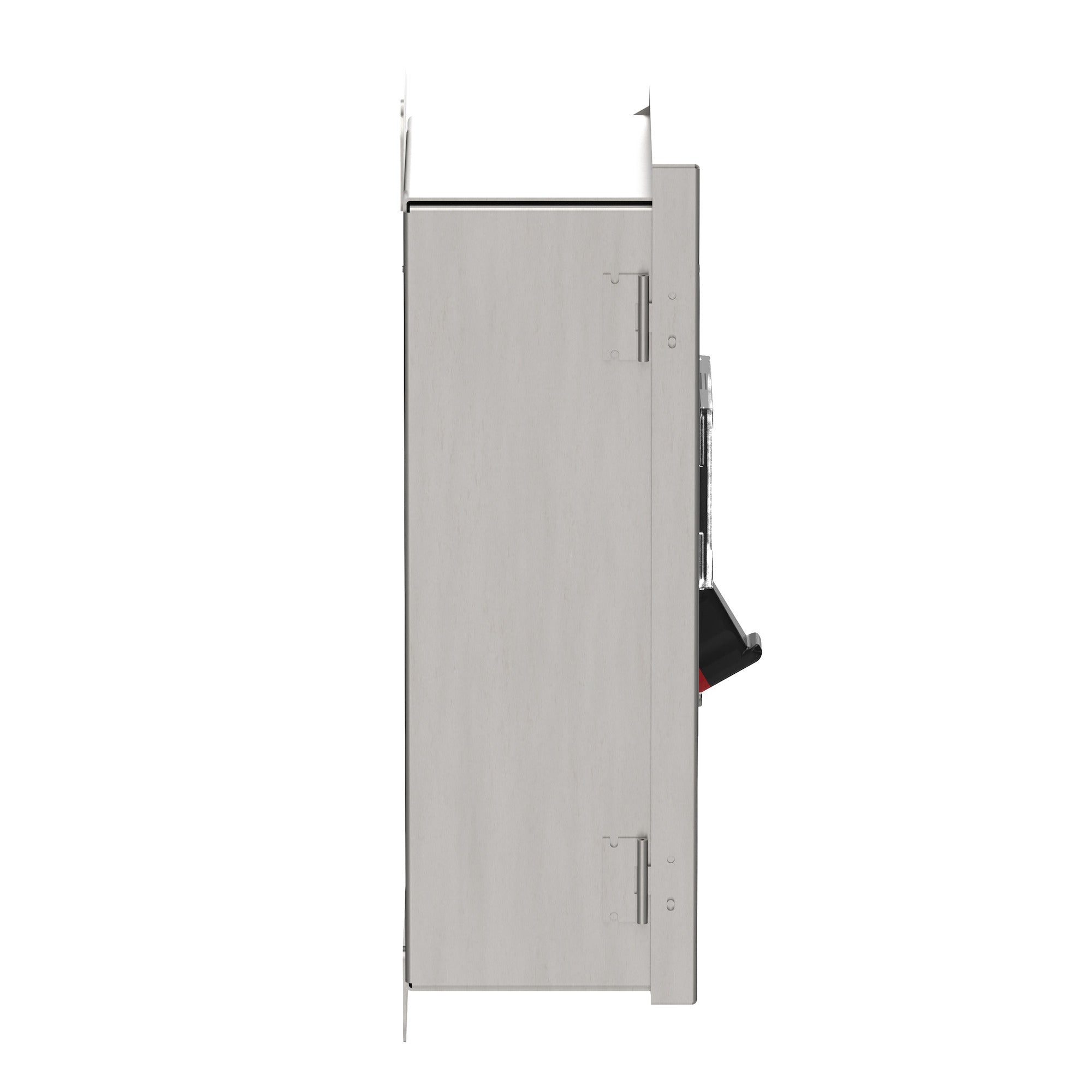

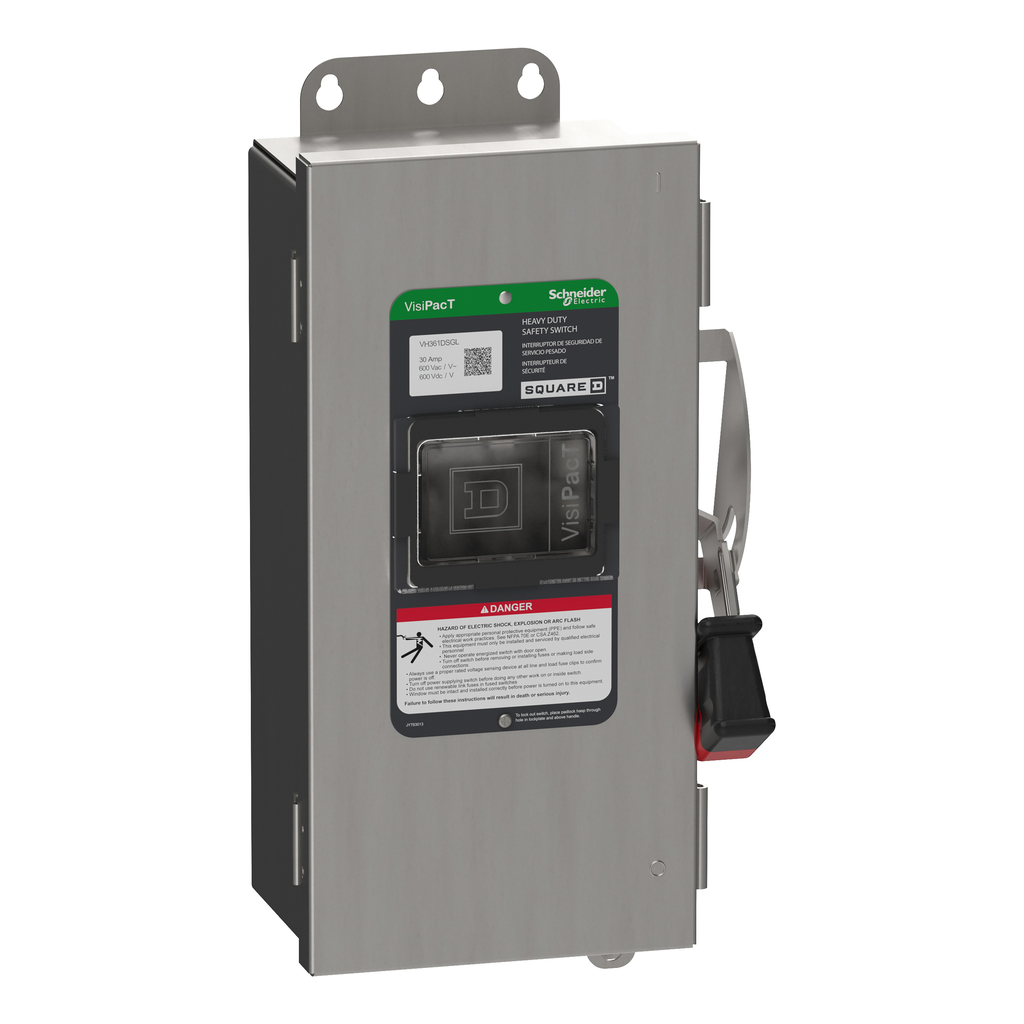

Square D VH361DSGL safety switch is designed for heavy-duty applications. It is suitable for both commercial and industrial settings. The switch can handle a current of thirty amps and functions at voltages up to six hundred volts alternating current and six hundred volts direct current. The safety switch features a three-blade fusible design with a short circuit rating of either ten kiloamperes or two hundred kiloamperes, depending on the fuses used. This device is rated Type 4X and comes in a stainless steel enclosure with a factory-installed viewing window.

• Durable construction for commercial and industrial use
• Quick-make, quick-break operating mechanism
• Compatible with multiple fuse types (H, K, R, J)

Product Highlights

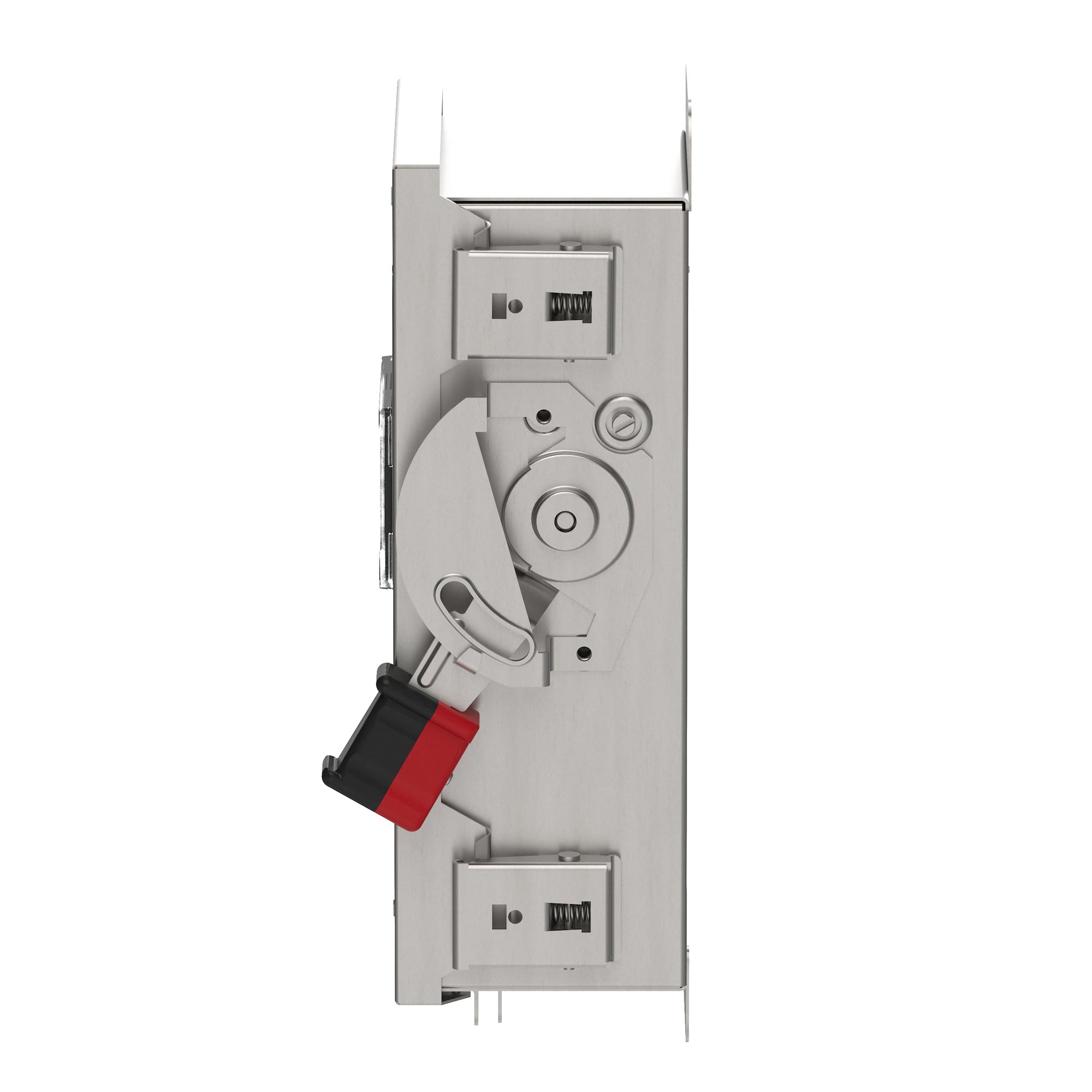

This switch includes a dual cover interlock and a color-coded indicator handle. It is surface mounted and can accommodate a solid neutral installation.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: VH361DSGL
• Line Rated Current: 30 A
• Voltage Rating: 600 VAC / 600 VDC
• Short Circuit Current Rating: 10 kA / 200 kA
• Fuse Type: H or K, R or J
• Mounting Type: Surface
• Number of Poles: 3 Pole
• Dimensions: 5.384 inches (Depth) x 7.22 inches (Width) x 14.93 inches (Height)
• Net Weight: 6 kg
