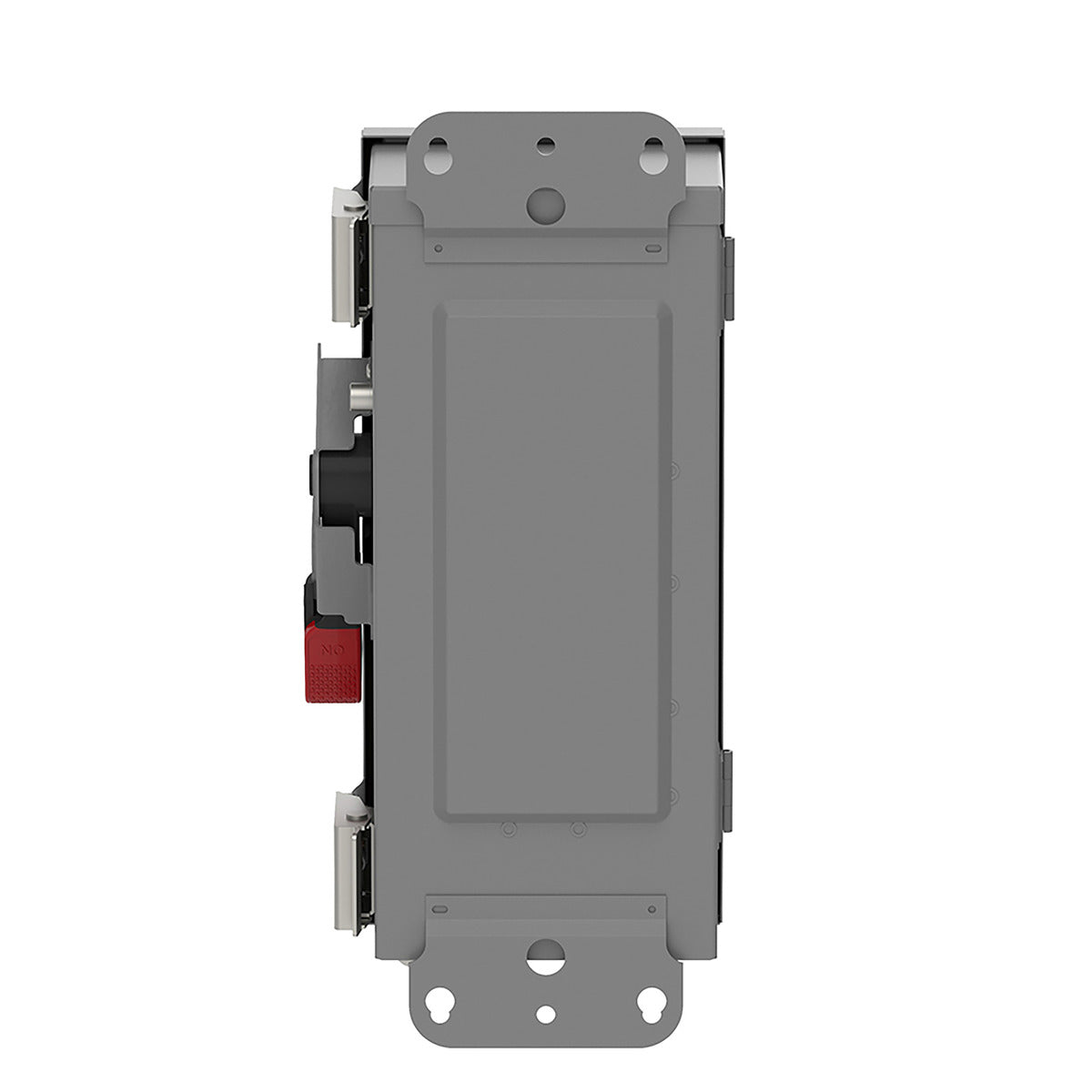

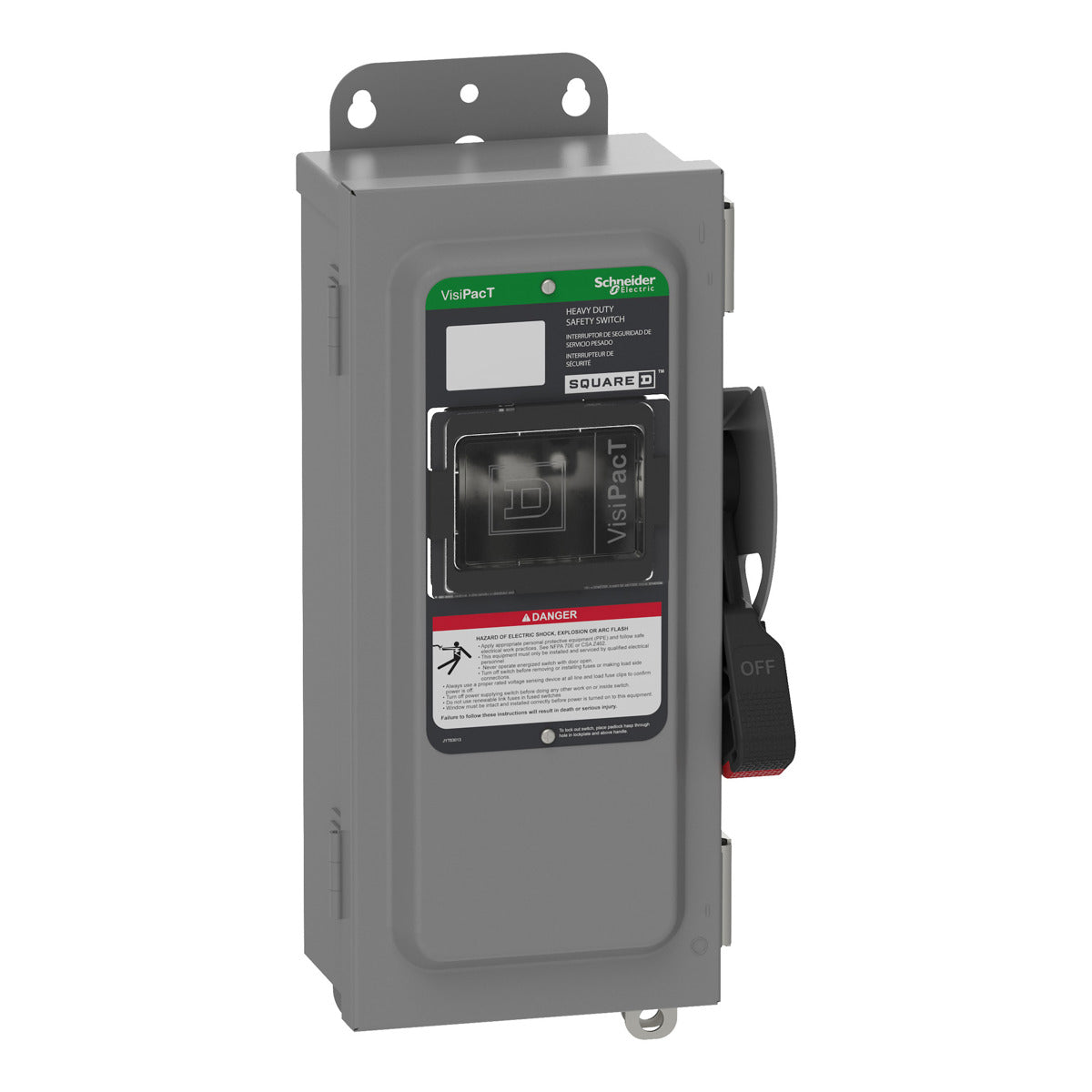

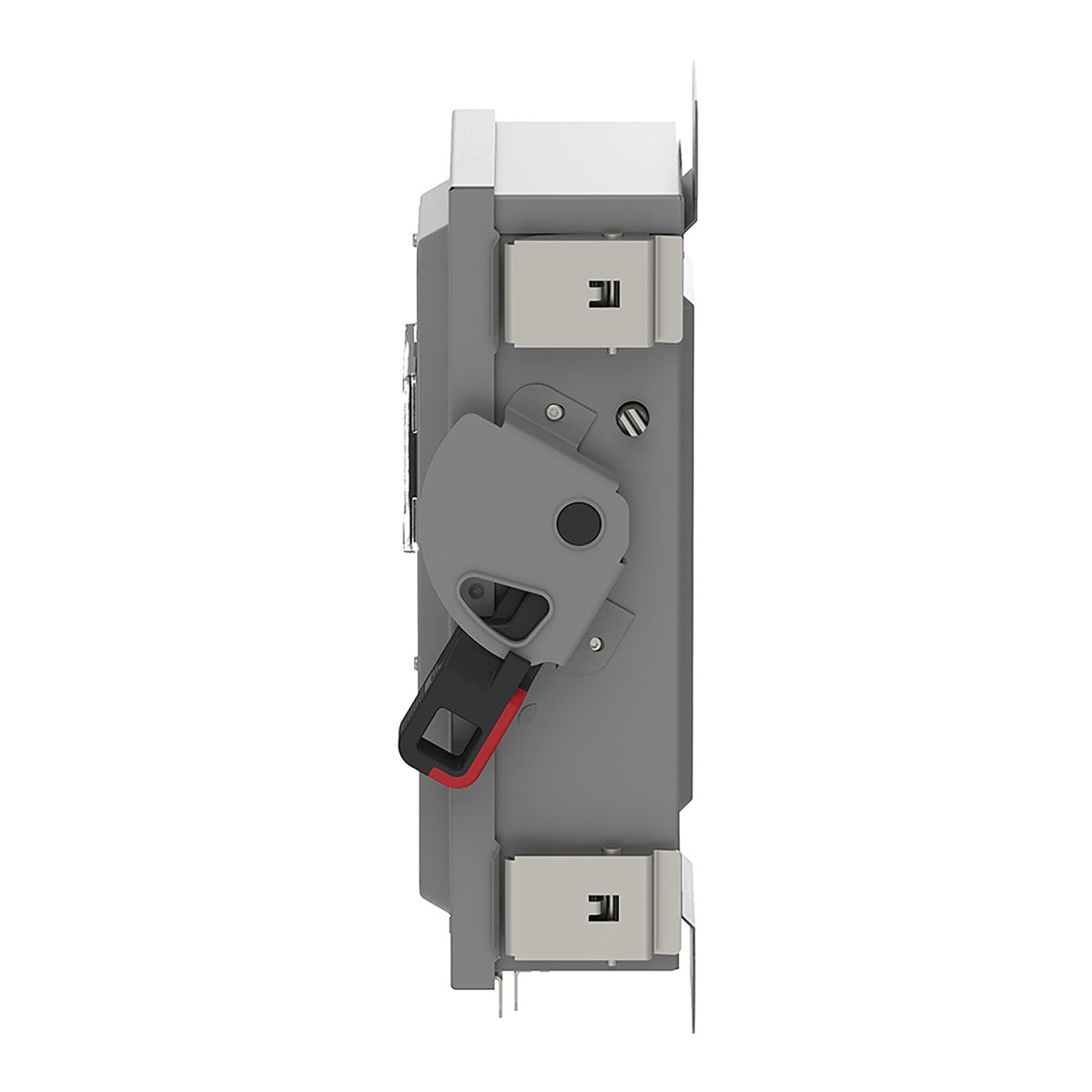

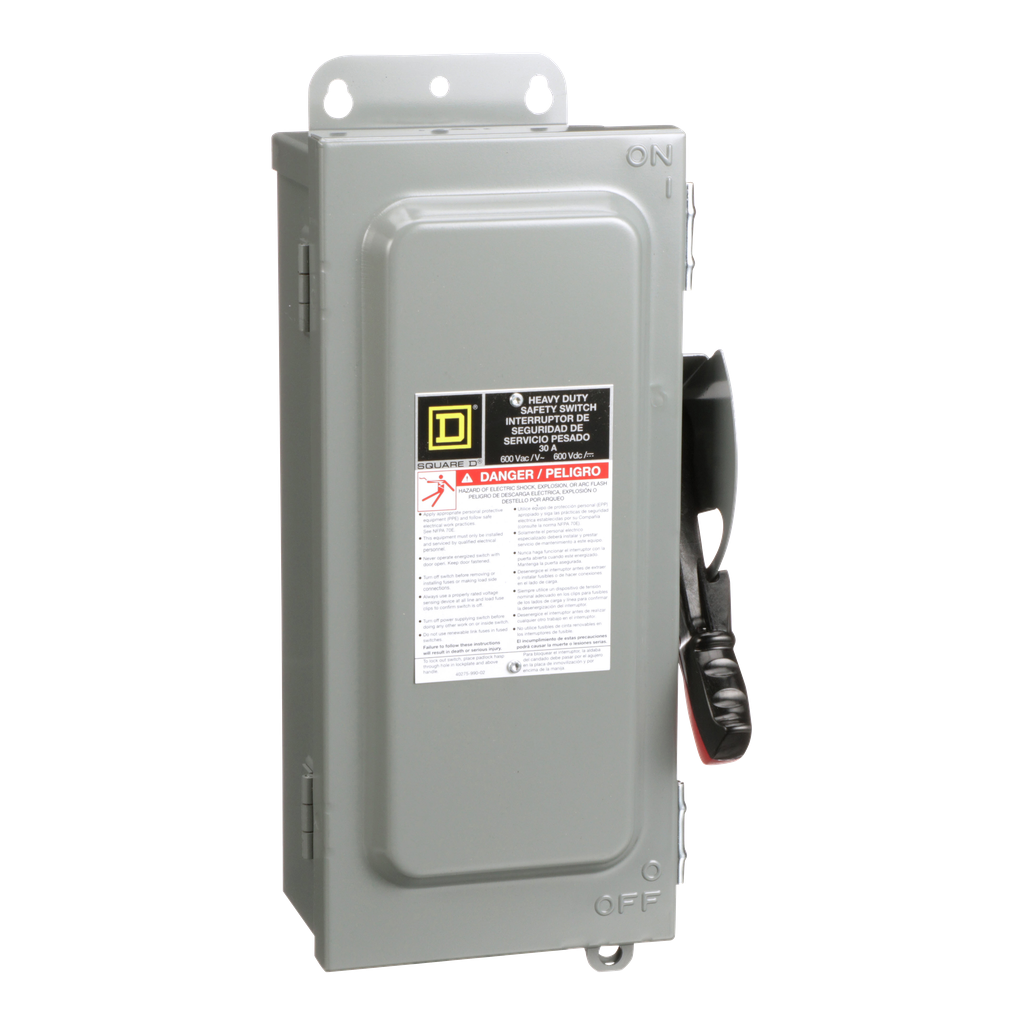

Square D VH361AWKGL Safety Switch 600V 30A 3-Pole Fusible Disconnect

Product Description

Square D by Schneider Electric offers the VH361AWKGL safety switch, a reliable solution for power management. This heavy-duty safety switch is suitable for commercial and industrial applications. Key features include a three-pole design and a rated current of thirty amps. The switch supports both 600 VAC and VDC with a short circuit rating of either ten kA or two hundred kA, depending on the installed fuses.

• Compatible with H, K, R, and J fuse types.
• Surface-mounted galvannealed steel enclosure with a NEMA twelve rating.
• Accepts wire sizes from AWG twelve to AWG six for aluminum connections.

Product Highlights

This switch features a quick-make, quick-break mechanism, ensuring fast and safe operation. The design includes equipment ground lugs and allows for solid neutral installation in the field.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Current: 30 Amp
• Voltage: 600 Volt
• Number of Poles: 3 Pole
• Material: Steel
• Enclosure Rating: NEMA 12K
• Height: 14.6 inches
• Width: 7.55 inches
• Depth: 4.96 inches
