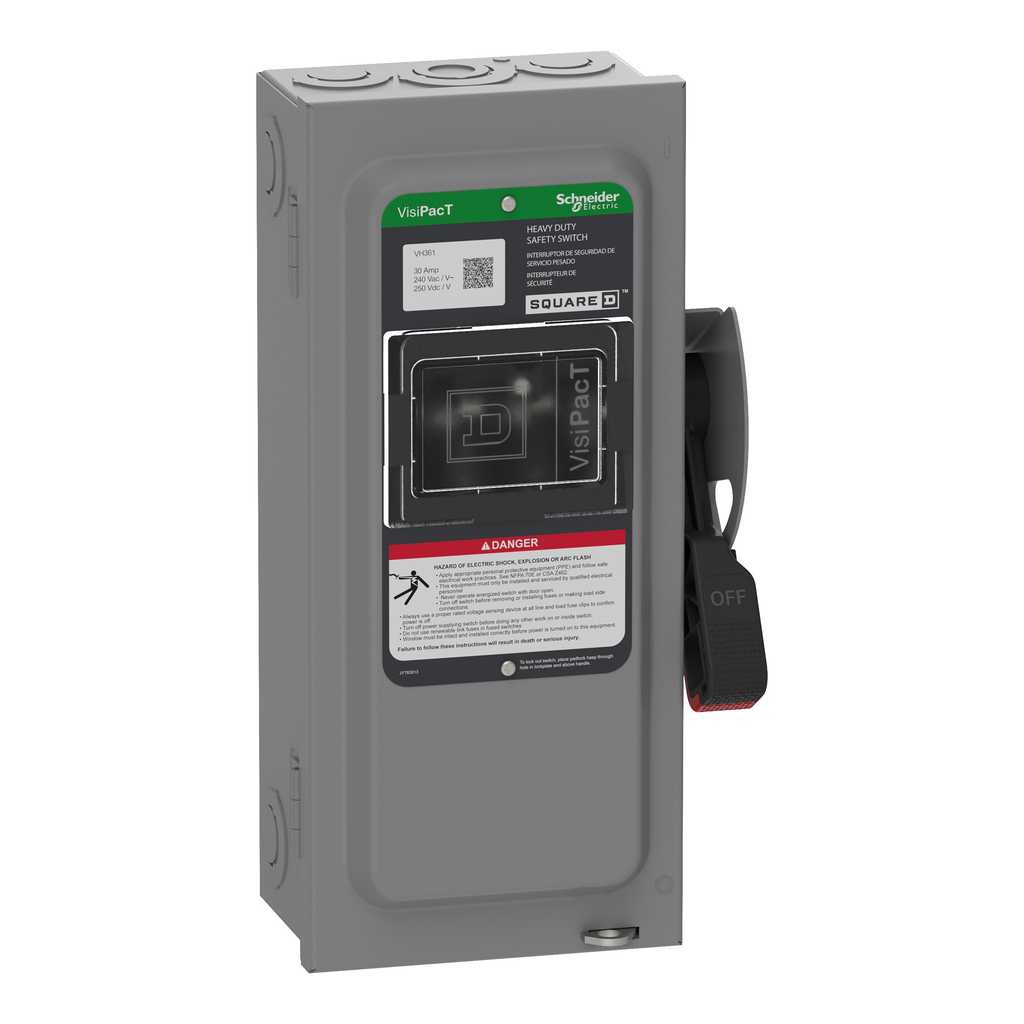

Square D VH361 Safety Switch, Heavy Duty, Fused, Viewing Window, Type 1, 600V, 30A, 3 Pole

Product Description

The Square D VH361 Safety Switch by Schneider Electric is built for reliable performance in demanding environments. This switch is suitable for industrial and commercial applications, providing safety and functionality. It features a viewing window and a rugged design.

• Heavy duty construction
• Rated current of thirty Amperes
• Three-pole configuration

Product Highlights

This switch supports up to six hundred volts AC or DC, and is tested for safety standards, ensuring long-lasting durability.

Product Information

Standard Information

• Catalog Number: VH361
• Manufacturer: Schneider Electric

Technical Specifications

• Rated Current: 30 A
• Voltage: 600 VAC / 600 VDC
• Number of Poles: 3 Pole
• Fuse Type: H, K, R, or J
• Short Circuit Rating: 10 kA / 200 kA
• Wire Range: AWG 12 to AWG 6 aluminium; AWG 14 to AWG 6 copper
• Dimensions: Depth 5.11 inches, Width 6.36 inches, Height 14.57 inches
