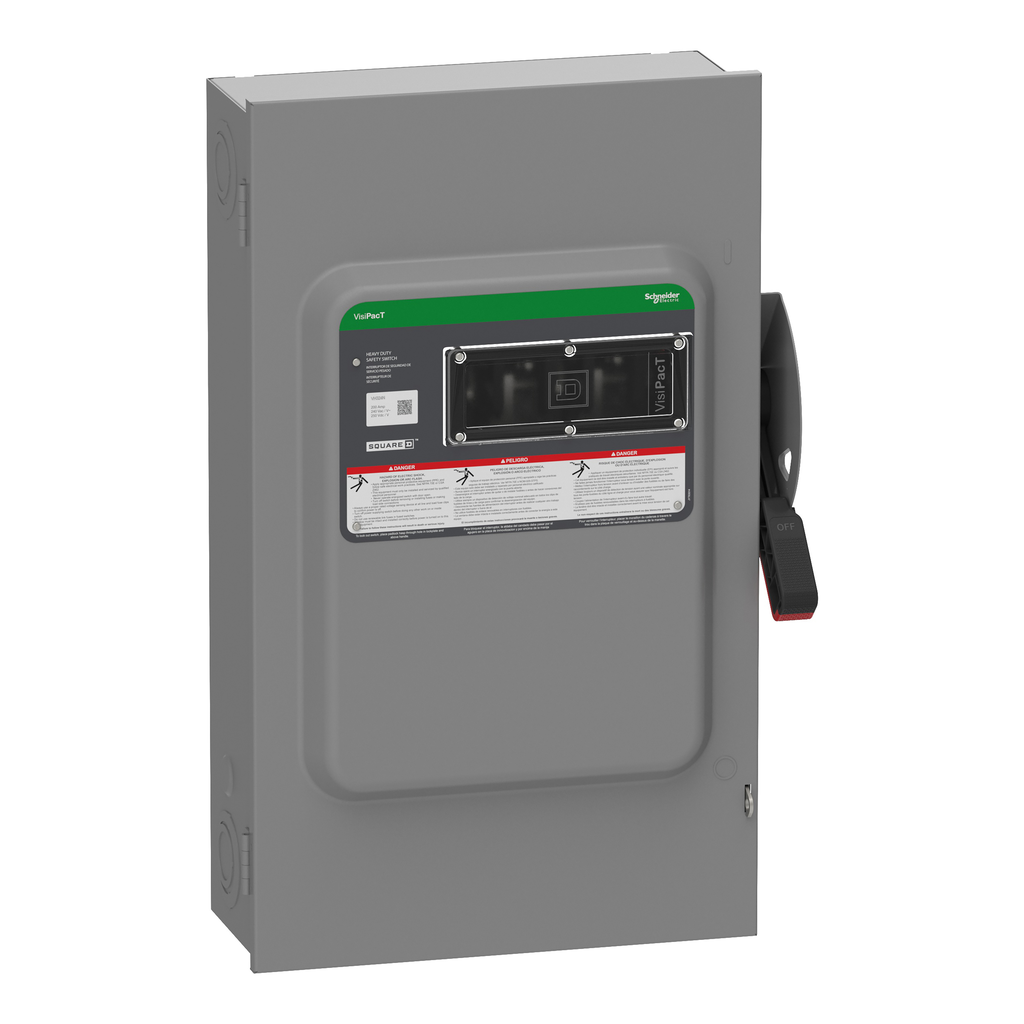

Square D VH324N Safety Switch, Heavy Duty, Fused, Viewing Window, Type 1, 240V, 200A, 3 Pole, Neutral Installed

Product Description

Square D VH324N is a heavy duty safety switch from Schneider Electric. This device is designed for reliability and durability in commercial and industrial settings. It offers a robustness that exceeds standard requirements, making it suitable for demanding environments.

• Operates at 200A with voltage ratings of 240VAC and 250VDC.
• Features a viewing window for easy operation confirmation.
• Meets UL98 and NEMA KS1 standards for safety and performance.

Product Highlights

This switch includes a quick-make, quick-break mechanism, a color-coded indicator handle, and a Type 1 steel enclosure with a factory-installed viewing window.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: VH324N
• Number of Poles: 3 Pole
• Line Rated Current: 200 A
• Voltage Rating: 240 VAC / 250 VDC
• Fuse Type: H, K, R, or J
• Short Circuit Current: 10 kA
• Dimensions: Depth - 8.6 inches, Width - 16.61 inches, Height - 28.93 inches
• Net Weight: 25.17 kg
• Mounting Type: Surface
• RoHS URL: Link
