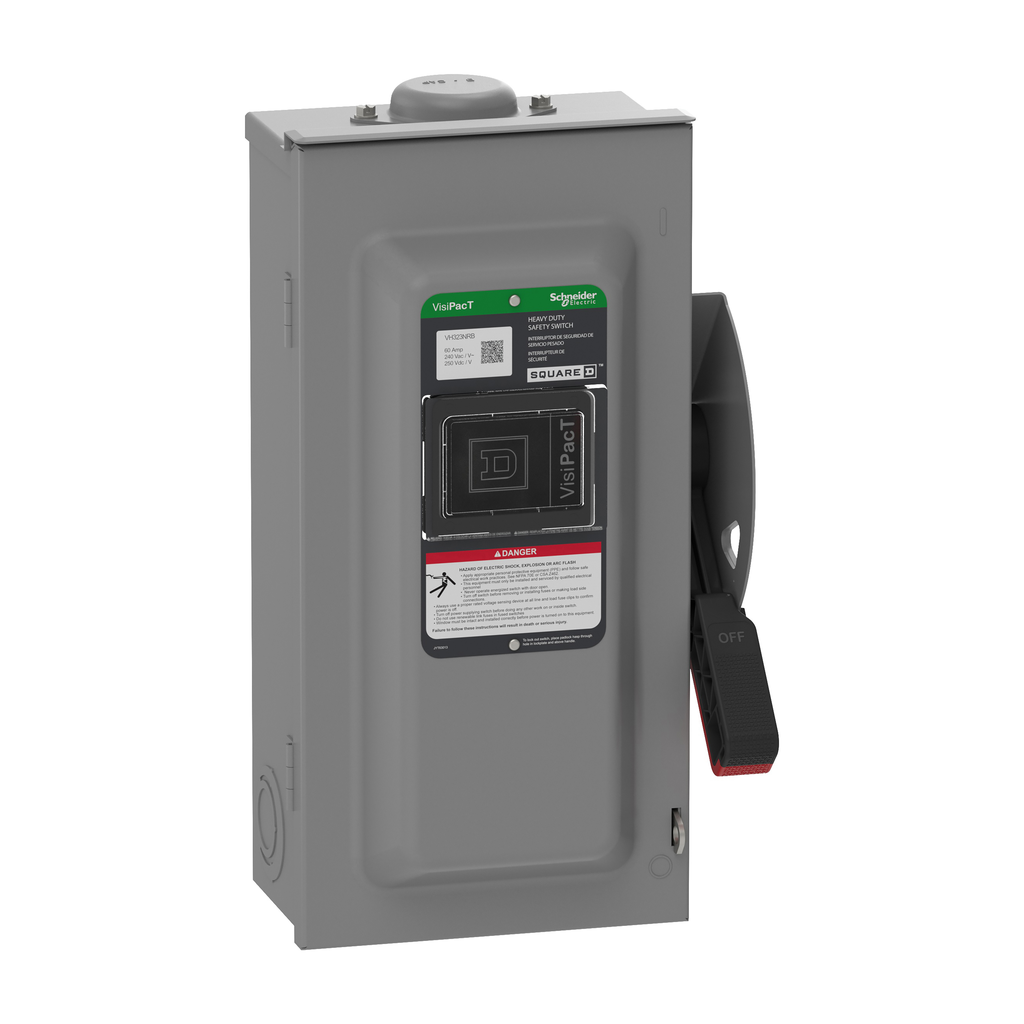

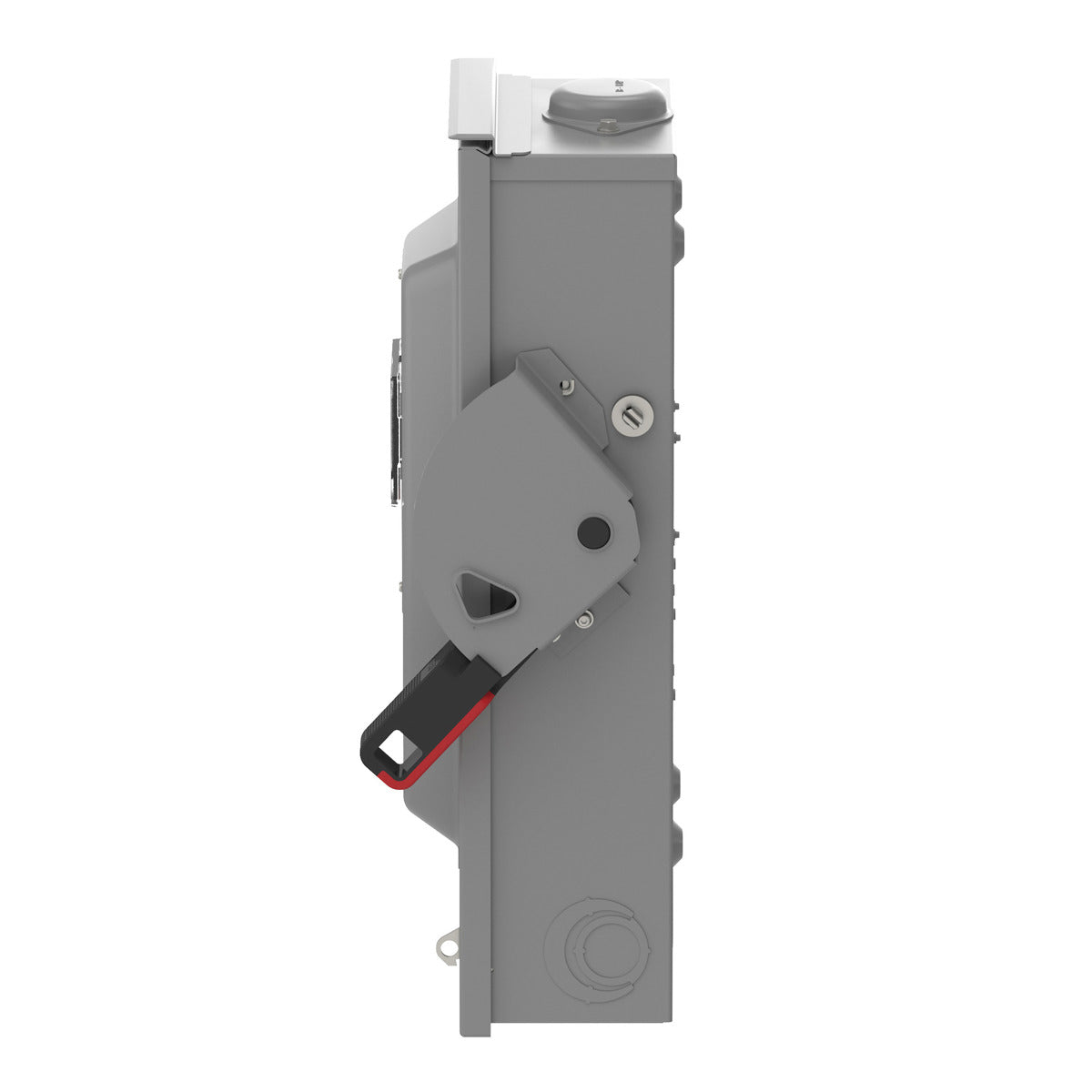

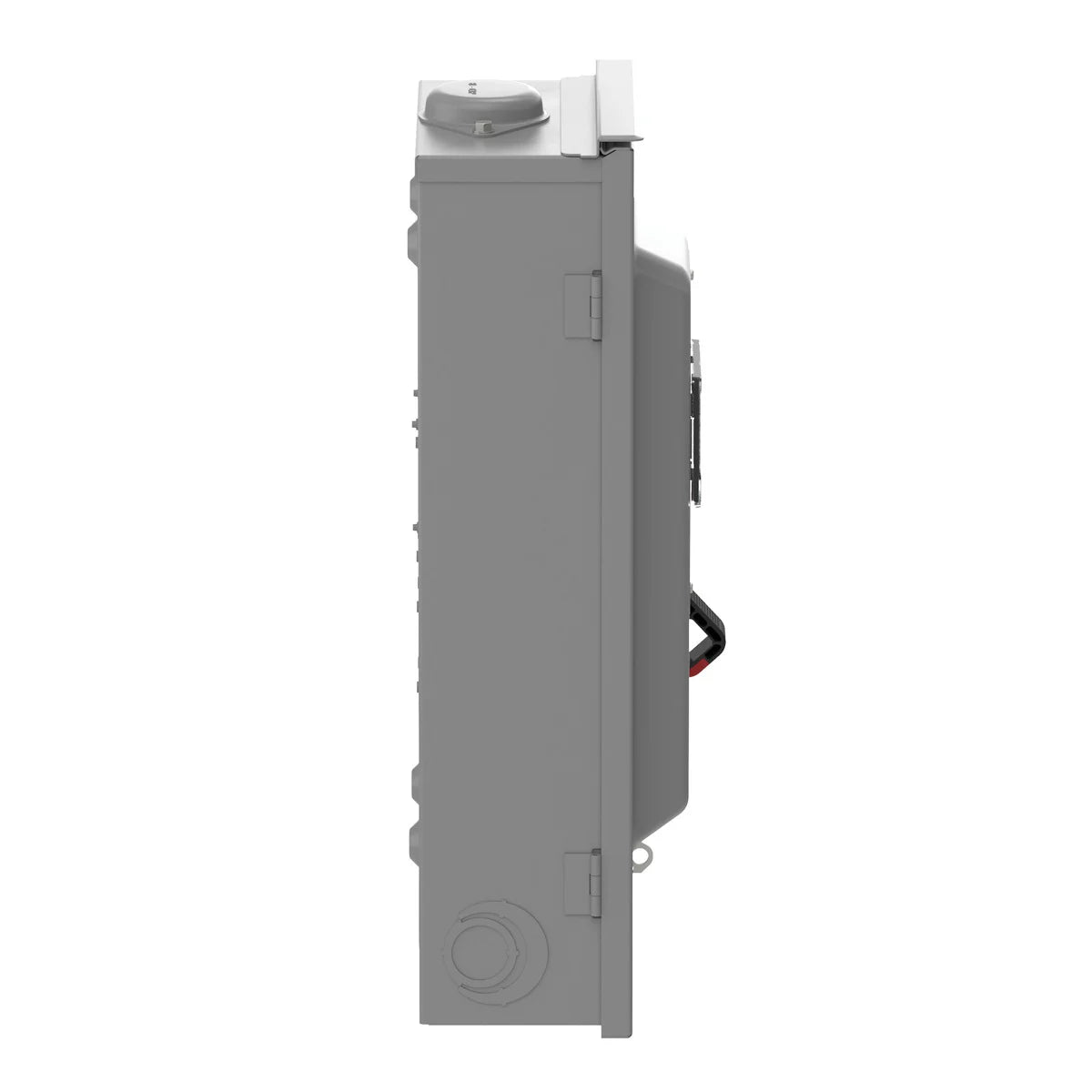

Square D VH323NRB Safety Switch, 100A, 240V, Fusible, Type 3R

Product Description

Square D VH323NRB safety switch is a heavy-duty device that ensures reliable power control in various applications. This switch is rated at 100 amperes and operates at 240 volts alternating current. It is designed to meet harsh conditions with significantly higher durability than standard switches. The three-blade switch includes features such as a quick-make, quick-break operating mechanism, enhancing safety and efficiency in commercial and industrial settings.

• Type 3R rated for outdoor use
• Constructed with a galvannealed steel enclosure
• Provides a factory-installed viewing window for easy inspection

Product Highlights

This heavy-duty fusible safety switch is ideal for applications requiring reliable disconnection from the power source and features multiple fuse type options for operational flexibility.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: VH323NRB
• Catalog Number: VH323NRB
• Voltage Rating: 240VAC / 250VDC
• Rated Current: 100A
• Fuse Types: H, K, R, and J (field-modified)
• Number of Poles: 3
• Dimensions: 22.13 inches height, 9.08 inches width, 7.019 inches depth
• Net Weight: 9 kg
• Short Circuit Rating: 10kA or 200kA depending on fuse used
• Certification: UL Listed File E2875
• Country of Origin: United States
