Description

Product Description

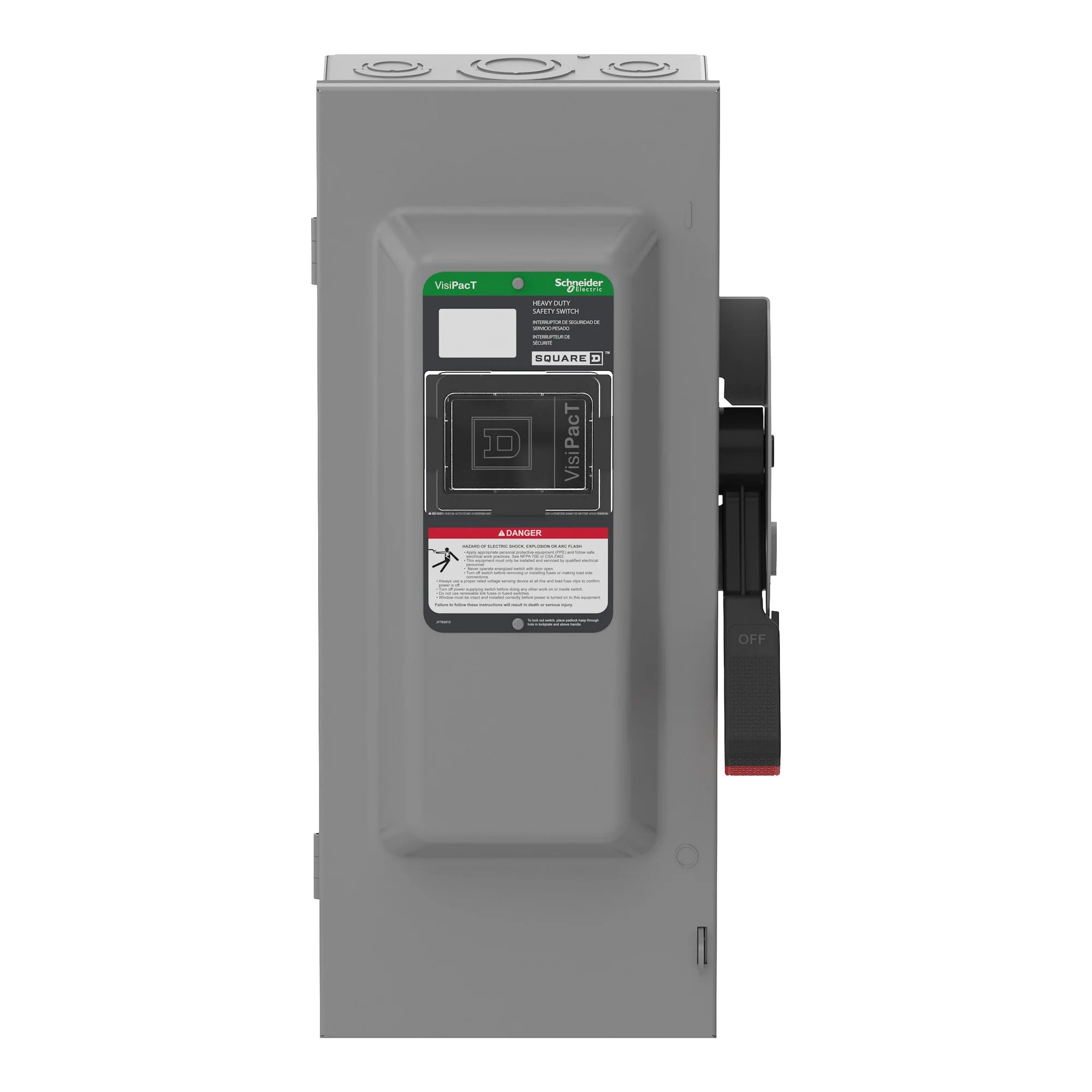

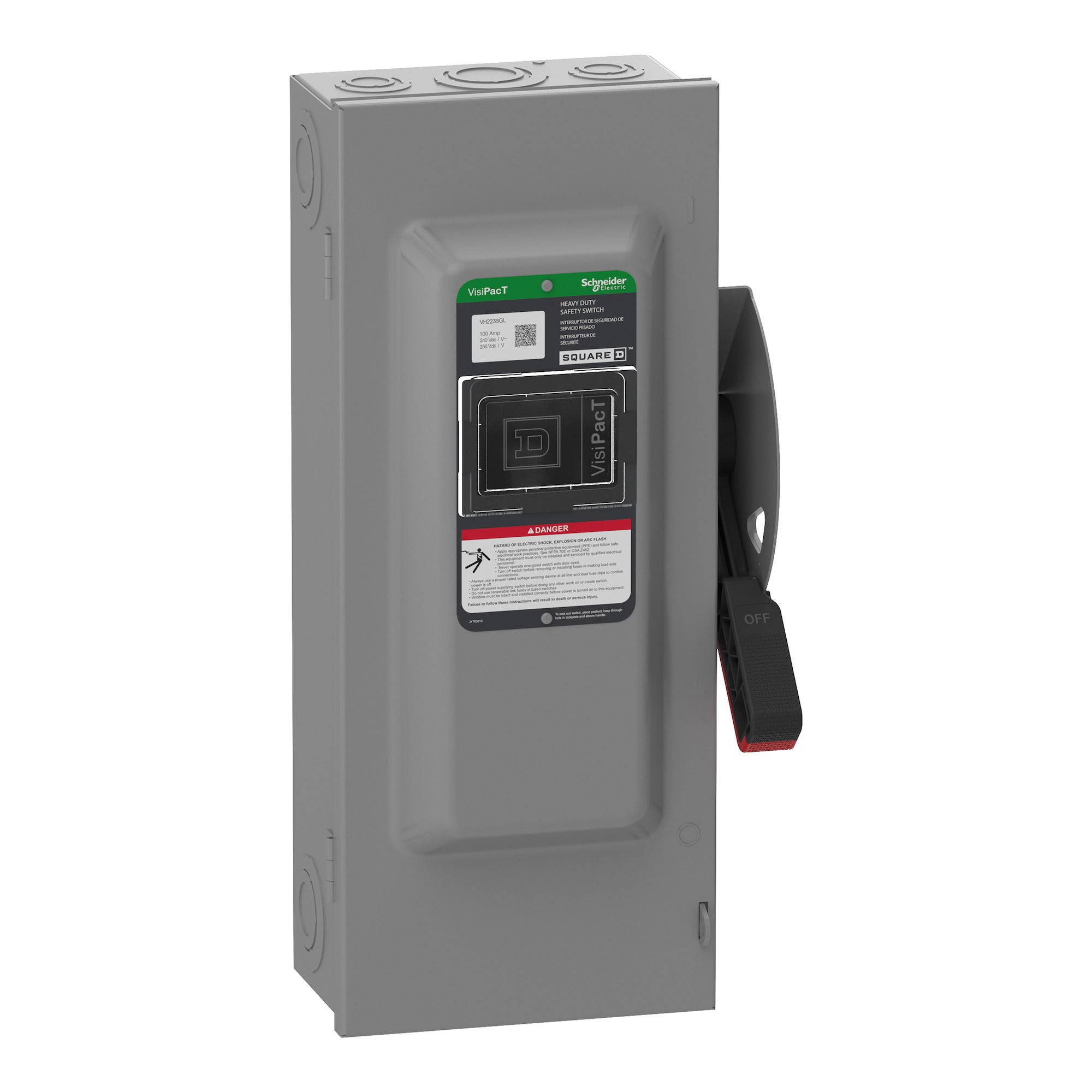

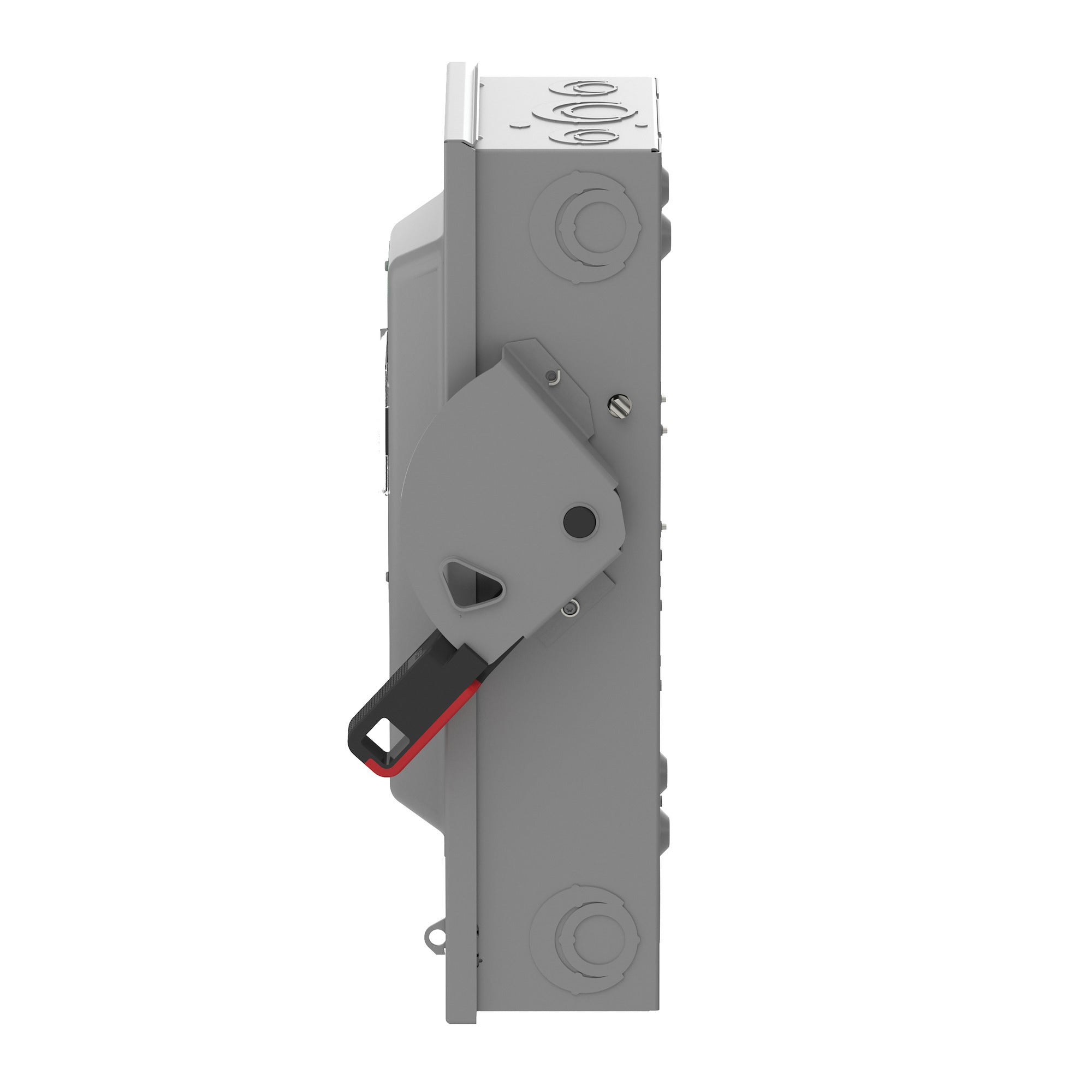

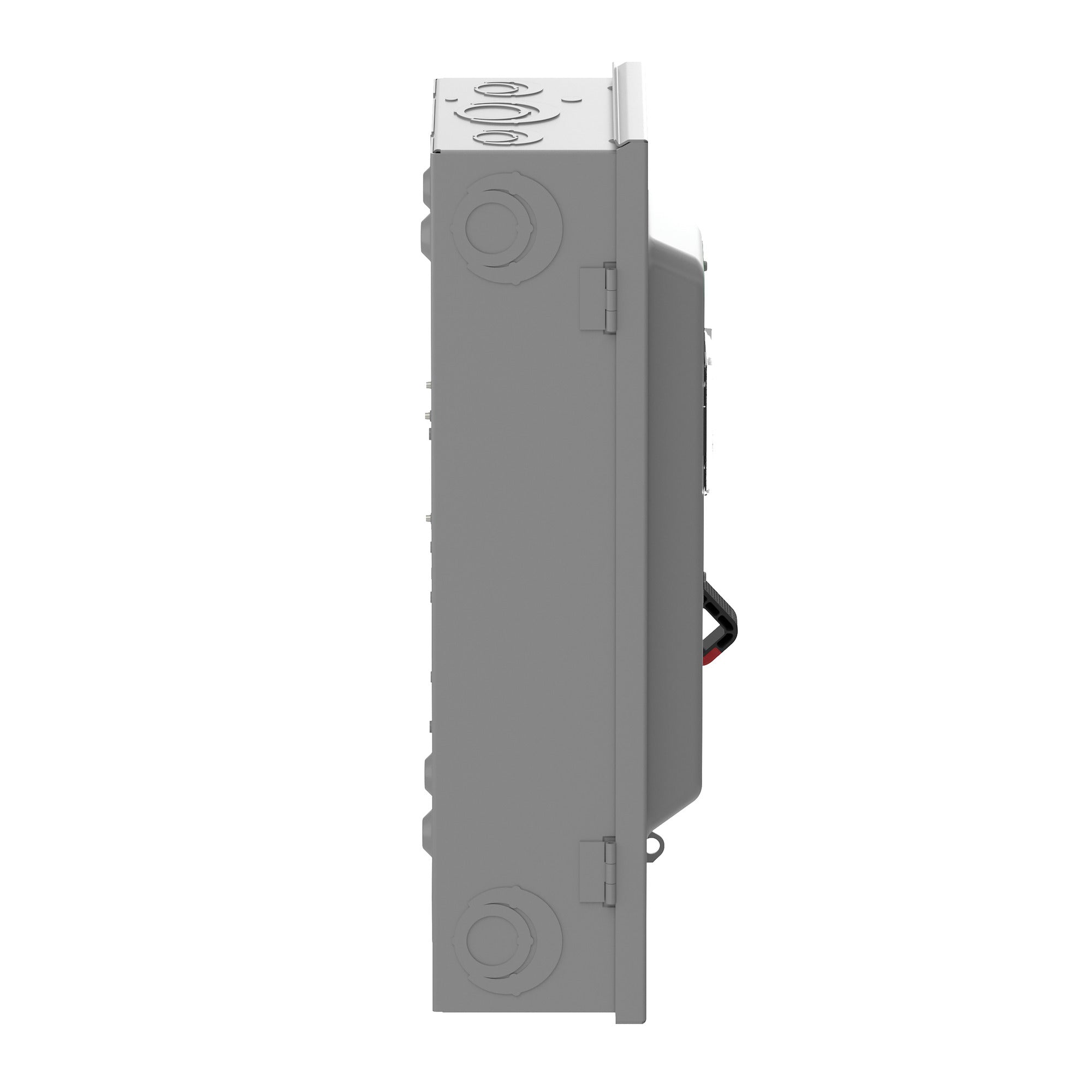

Square D VH323N is a heavy duty safety switch manufactured by Schneider Electric. This switch is designed for reliable performance and durability in challenging conditions. It is rated at 100A and operates at 240V AC and 250V DC. The switch features a steel enclosure with a factory-installed viewing window, allowing for easy monitoring.

  • Fused disconnect for added safety.
  • Type 1 rated for outdoor or indoor use.
  • Accepts H, K, R, and J fuse types for flexibility.

Product Highlights

This heavy duty safety switch comes with a quick-make, quick-break operating mechanism and a color-coded indicator handle. It also meets UL98 and NEMA KS1 standards for safety and reliability.

Product Information

Standard Information

  • Brand: Square D
  • Manufacturer: Schneider Electric
Technical Specifications
Catalog Number
VH323N
Rated Current
100A
Voltage
240VAC and 250VDC
Short Circuit Rating
10kA or 200kA (depending on fuse used)
Number of Poles
3 Pole
Fuse Type
H, K, R (J can be field modified)
Mounting Type
Surface
Height
21.84 inches
Width
8.91 inches
Depth
7.04 inches
Net Weight
9 kg
Country of Origin
United States
