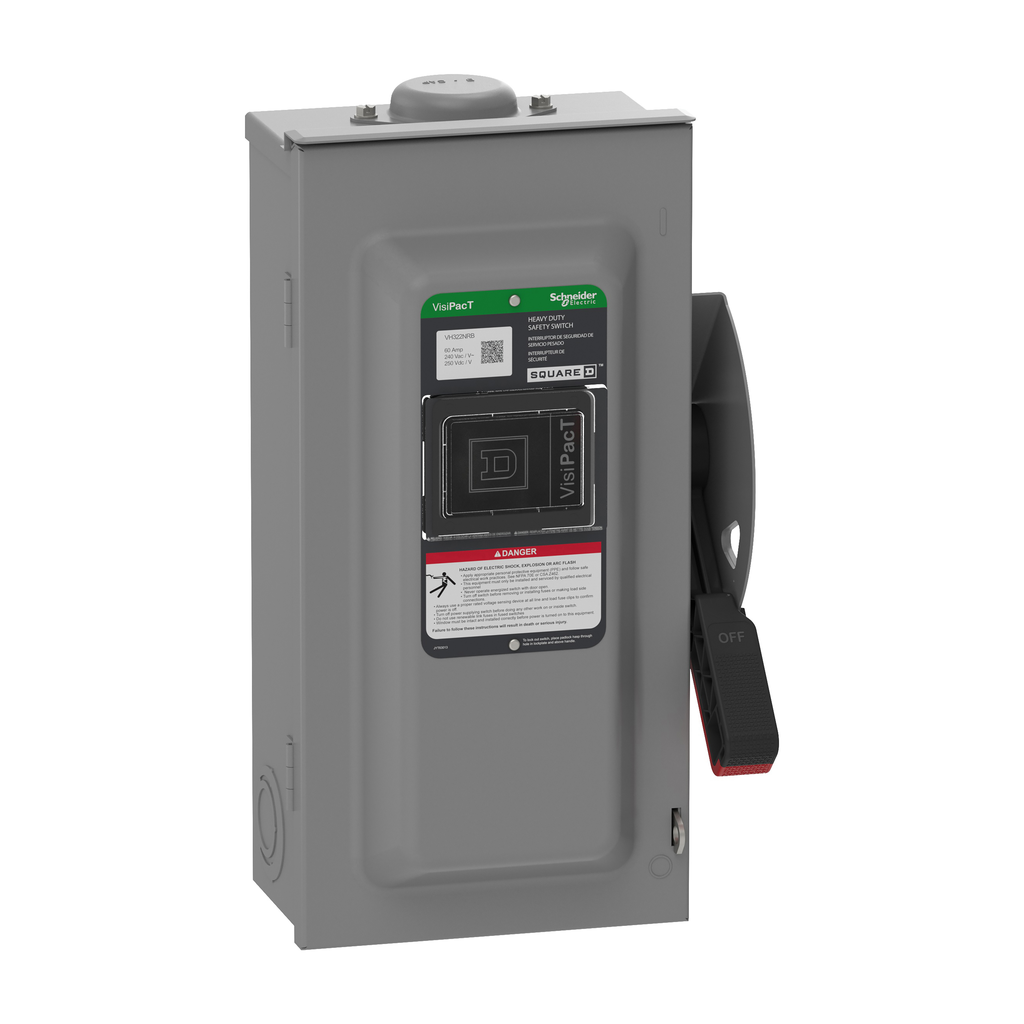

Square D VH322NRB Safety Switch 60A 240V NEMA 3R

Product Description

Square D VH322NRB is a heavy duty safety switch designed for demanding environments. This switch boasts advanced durability and reliability, surpassing NEMA standards. It features a quick-make, quick-break mechanism for safe operation. Rated at sixty amperes, this switch supports voltages of two hundred forty volts AC and two hundred fifty volts DC. It has a short circuit rating that can be either ten kA or two hundred kA based on the fuse type selected.

• Type 3R rated with a galvannealed steel enclosure.
• Factory-installed viewing window for easy monitoring.
• Accepts H, K, R fuse types and can be modified for J fuses.

Product Highlights

This device is ideal for commercial and industrial applications. The four-wire configuration includes three poles and one solid neutral with standard ungrounded lugs. The wire range supports both aluminum and copper wiring, ensuring versatility in installation.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: VH322NRB
• Net Weight: 4.34 kg
• Line Rated Current: 60 A
• Short Circuit Current: 10 kA
• Fuse Type: H or K, R or J
• Mounting Type: Surface
• Depth: 5.16 inches
• Width: 6.62 inches
• Height: 14.843 inches
• Country of Origin: United States
• Certifications: UL Listed File E2875
