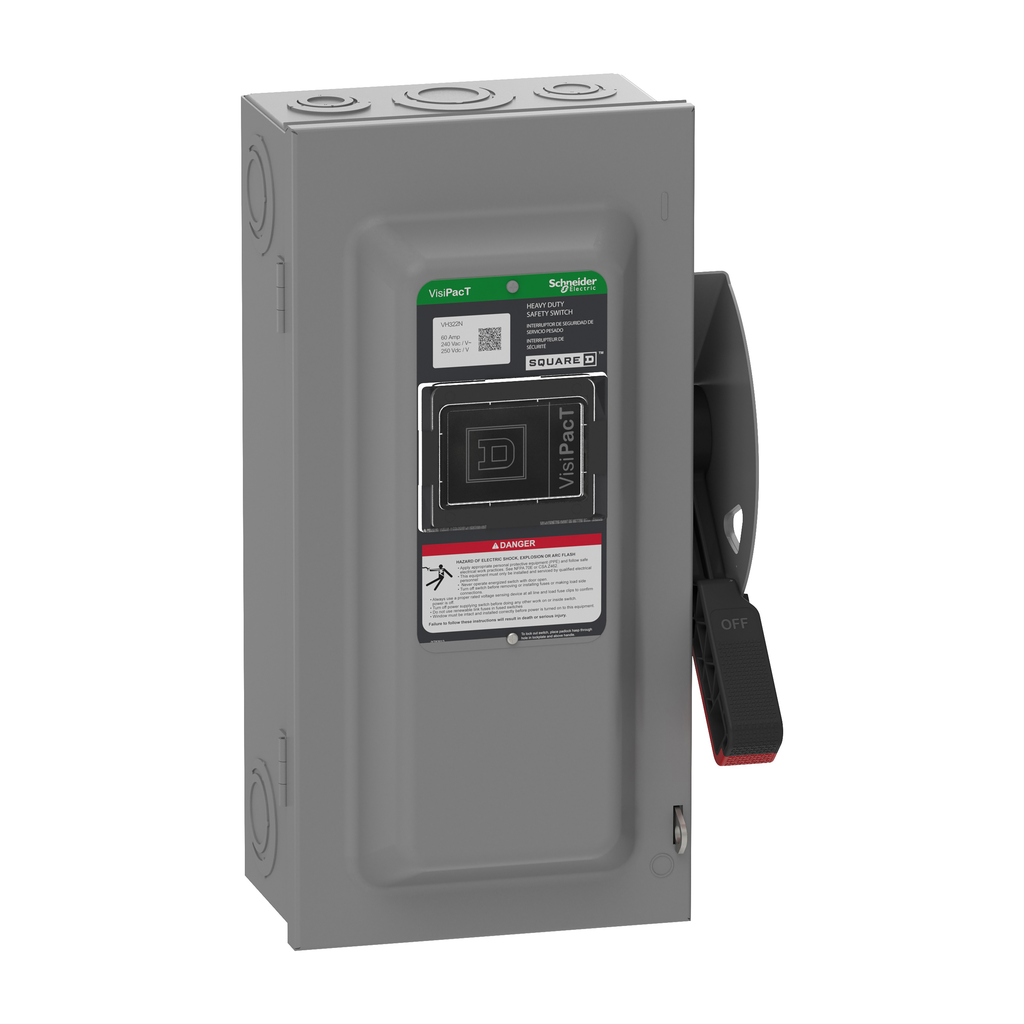

Square D VH322N Safety Switch Heavy Duty Fused Viewing Window NEMA 1 240V 60A 3 Pole Neutral Installed

Product Description

Square D VH322N safety switch is manufactured by Schneider Electric. This device is a heavy-duty fused switch designed for commercial and industrial applications. It features a viewing window and is rated for a maximum voltage of two hundred forty volts AC and a current of sixty amperes. The construction of this safety switch ensures high durability, exceeding industry NEMA standards.

• Type 1 rated with steel enclosure
• Accepts H, K, R fuse types, field-modifiable for J fuses
• Includes factory-installed viewing window

Product Highlights

This safety switch is suitable for surface mounting and comes with a four-wire configuration that includes three poles and one neutral. It is designed with a quick-make, quick-break operating mechanism for efficient disconnecting.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: VH322N
• Rated Current: 60 A
• Short Circuit Current: 10 kA
• Enclosure Type: Type 1
• Dimensions: 5.11 inches (depth) x 6.36 inches (width) x 14.57 inches (height)
• Fuse Type: H, K, R, J
• Country of Origin: United States
